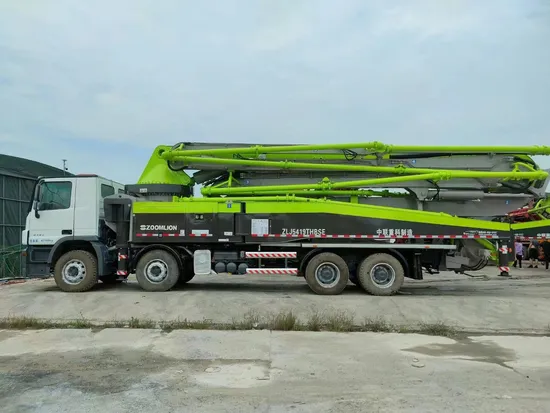

2014 Zoomlion Mercedes-Benz 52 Metersconcrete Pump Truck
| US$25,000.00-55,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
52M
Type
Concrete Pump
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Rotor Type
Productivity
180m²/h
Feeding Height
1400mm
Vibrating Amplitude
2.2mm
Certification
ISO9001: 2000, CE
Condition
Used
Color
Green
Vehicle Weight
41000kg
Engine Type
Om501la
Truck Type
Actros4141 8*4
Transport Package
Standard Package
Specification
13125*2500*4000
Trademark
zoomlion
Origin
Changsha, Hunan, China
Production Capacity
800-1000
Product Description
Product DescriptionIn 2014, Zoomlion Mercedes-Benz 52m, 6-section boom, original orange boom compound third-generation system, double main oil pump with large displacement, has been refurbished in accordance with export high standards in manufacturing, vehicle finishing and large maintenance, paint has been done the latest aurora green, can work directly Product Parameters
| Type | Unit | ZLJ5416THB 52-6RZ |
| Pumping system | ||
| Maximum theoretical conveying capacity | m ³/ h | 180 |
| Maximum outlet pressure of concrete | Mpa | 9 |
| Rated working pressure | Mpa | 35 |
| Pumping frequency | min-1 | 27 |
| Hopper volume | L | 600 |
| Loading height | mm | 1540 |
| Hydraulic system type | closed type | |
| Distribution valve type | S pipe valve | |
| Cylinder diameter × Stroke | mm | Φ130×2100 |
| Concrete cylinder diameter × Stroke | mm | Φ260×2100 |
| Hydraulic oil cooling | Air cooling | |
| Boom | ||
| Structural form | 52-6RZ | |
| Maximum fabric height | m | 52 |
| Maximum fabric radius | m | 47 |
| Maximum fabric depth | m | 37.3 |
| Rotation angle | ± 270 ° | |
| Arm length | mm | 10710/8420/8090/10180/6100/4500 |
| Arm extension angle | 90 °/180 °/180 °/240 °/220 °/90 ° | |
| Minimum opening height of boom | mm | 13190 |
| Leg span (front × after × Vertical) | mm | 10715×10660×10535 |
