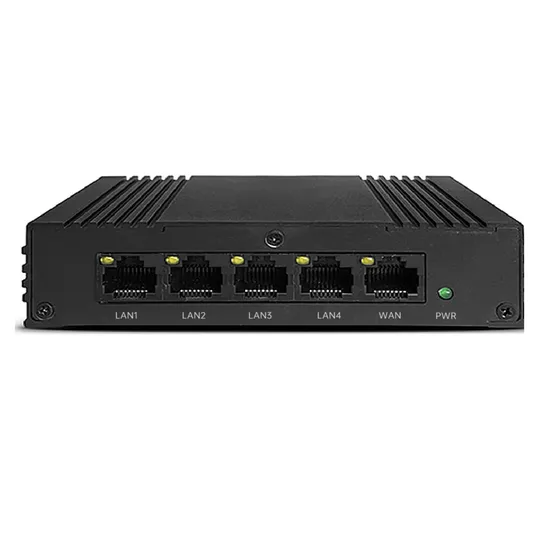

Er205X Industrial Grade Wired 5-Port Gigabit Mini Desktop Openwrt Gateway VPN Router
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
ER205X
Transfer Rate
10/100/1000Mbps
Firewall
Firewall
Ports
5
Port Structure
Not Modular
Application
Enterprise
Network
TCP/IP
Performance
Line-Rate Router
Architecture
Single Bus CPU
Throughput
10gbps
Concurrent User
70+
Transport Package
Carton Box
Specification
19′1U rack-mount
Trademark
OEM
Origin
Made-in-China
HS Code
8517623200
Production Capacity
8000PCS/Months
Product Description
Industrial grade 5-port gigabit Mini desktop OpenWRT VPN router
Model: ER205X
ER205X is an SMB multi-service device with a gigabit network interface that integrates routing, switching, and AC management functions. The whole machine has a standby capacity of 100 people and can manage 64 APs in a unified manner. It provides 5 10/100/1000M adaptive RJ45 ethernet ports, without the need to purchase additional AC or switch equipment. It can be directly paired with AP products to form a wireless network, which is efficient, convenient, and cost-effective.
5*10/100/1000Mbps Base-T Ports NAT accelerate VPN support Manage 64*APs User Capacity 70+ Industrial robust design
Detailed Photos
Product Parameters
| Hardware | |
| CPU | MT7621IA |
| DRAM | 2Gb |
| Flash | 1Gb |
| Interface | 1x 10/100/1000Mbps Ethernet Port (WAN) |
| 4x 10/100/1000Mbps Ethernet Port (LAN) | |
| Power Supply | DC: 12V=1A |
| Button | 1 Reset Button |
| LED | PWR,SYS,PoE |
| Dimensions ( W x D x H ) | 120*85*29mm |
| NAT Accelerate | Hardware base accelerate |
| Concurrent user | 70+ |
| Environment | Operating Temperature: -20°C~50°C |
| Storage Temperature: -40ºC~70ºC | |
| Operating Humidity: 5%~90% non-condensing | |
| Storage Humidity: 5%~95% non-condensing | |
| Software | |
| Status | Basic device information, operating status, DHCP client list |
| Networking | WAN:Static IP/Dynamic IP/PPPOE |
| LAN:Port based IP address segment configuration, DHCP server | |
| IP group/static routing/port mapping/network diagnostics/static IP allocation | |
| AC function | Radio status/WLAN configuration/wireless user/anti terminal stickiness/wireless optimization/debugging function |
| Authentication | Local authentication based on IP address segments, local MAC address whitelist/IP address whitelist |
| Local authentication: automatic authentication, Portal authentication | |
| MAC address whitelist, MAC address blacklist | |
| Web authentication user management | |
| Firewall | User behavior control based on time group and IP group |
| Free of authentication IP/MAC list, Deny of IP/MAC List surf the internet | |
| Online upgrade of control logs and behavior management rule library | |
| Bandwidth control | WAN bandwidth configuration |
| IP address and IP address range based bandwidth control | |
| VPN | PPTP/L2TP/IPSec VPN |
| System | Time zone configuration, login password modification, backup/restore system settings,OTA upgrade |
