Saga Woodworking Machinery High Frequency Dryer for Wood

Product Description

SAGA Woodworking Machinery High Frequency Dryer For Wood
*Fast drying cycle: heating by high frequency dielectric power,many times faster than conventional wood kilns

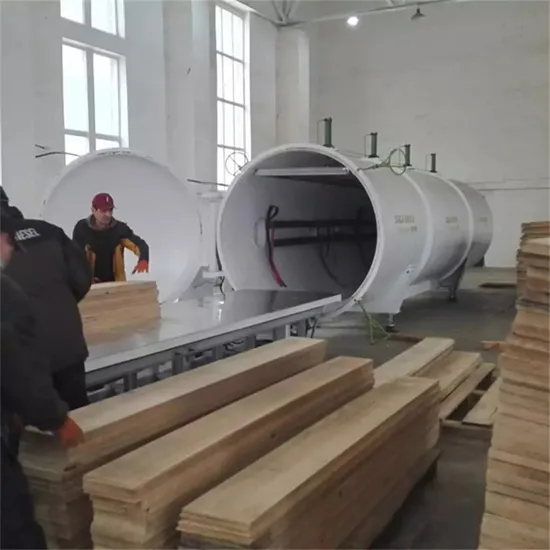

*Automatic feeder: feeding cart with a motor,easy to push the timber into the dryer
*Optional capacity: 4.5m3, 10m3, 13m3, small but with a quick,automated drying cycle, meet different customer's requirement
*PLC automated systems with touch screen panel: easy to set data and operate,only One-button start and stop
*Uniform heating: HF power acts on water or moisture in the wood, make sure moisture uniform after drying
*No sparking or bending problem: hydraulic press cart keeps the wood straight
*Veneer, panels, softwood and hardwood planks, heavy timber with large dimension: suiatble for all kinds of wood
*Patented weighing system: calculate the moisture by program automatically, and showing recent moisture on PLC screen all the time
*Stainless steel cooling system: stainless steel vacuum pump, pipe and condenser,avoid of rusting problem
*Schneider, Omron, Siemens etc European spare parts: International standard, good quality and easy to replace
Our engineers can provide overseas installtion, training and are available to provide after-sell service and maintenance. We recommend proper training for sfe and prolonged use of the machinery.
Basic Parameter of HFVD45-SA

Overall Size	High frequency generator	950*1050*1950mm
	Tank	5300*2160*2100mm
	Cooling system	1500*1150*2000mm
Gross Weight		6 Ton
Tank	Inside diameter	1700mm
	Stacking timber size	1000*1000*4500mm (3.28feet *3.28 feet * 14.76 feet)
	Stacking timber capacity	4.5 cubic meters
HF Generator	Input power	40 Kva
	Output power	30 KW
Temperature Testing		Fiber optical temperature sensor
Moisture Testing		Weighing system (PATENT)
Cooling System		Stainless steel condenser with stainless steel water-ring vacuum pump
Dewatering		Full automatic type
Hydraulic Cyliners		3 ton (2 pieces of stainless steel cylinders)
Vacuum Pump	Material	Stainless steel
	Power	7.5 Kw
Feeder Type		Automatic Feeder
Tank Door		Ears Door (more safe and powerful)
Weighing System		Weighing sensors under then tank (weighting wood everytime)
Control System		Full-auto PLC touch screen
Packing		40" GP (5 packages)

Optional Models

Model	HF Input Power	HF Output Power	Stacking Timber Size	Stacking Timber Capacity	Container
HFVD30-SA	40 kva	30 kw	1*1*3 m	3 m3	20"
HFVD100-SA	70 kva	50 kw	1.3*1.3*6 m	10 m3	40"
HFVD120-SA	70 kva	50 kw	1.3*1.3*8 m	13 m3	40"

Main Parts
1.High frequency generator
2.Control cabinet
3.Vacuum tank
4.Hydraulic system
5.Weighing system
6.Temperature tesing system
7.Cooling system
8.Full-auto feeder

Case	Drying Time	Drying Result	Consumption
Sliced veneer	about 40 hours	High quality on flatness and water content uniform	200~250kw/cbm
Surface of floorboard	about 45 hours	High quality on flatness, no end cracking and deformation, no color change	about 200kw/cbm
Middle hardwood for second time drying	about 35 hours	Relieving tension, make water content uniform and make wood stable	about 150kw/cbm
Hardwood drying	Rosewood: 7 days Red Sandalwood: 14 days	No cracking or deformation, moisture content uniform, more stable	about 500~600kw/cbm,different consumption for different wood
Large plank	7~10 days , moisture content from 60% to 20%,10cm thick+, like Birch,Larch,Pinus and Pine	No deformation on vertical direction, no cracking problem, more stable	different wood with different power consumption

Pre-sale sevice:
1.Reply customer's email or call customer back if missed any calls.
2.Design the best processes and programs according to customer's requirement.
3.Answer customer's questions patiently
On purchase service
1.Commissioning the machines before shipment carefully.
2.Train the customer's technician, and provice operation video and matters needing attetion.
3.Arrange customs declaration, sea shipping, insurance,etc.
After-sale service
1.The warranty is 12 months, will provice spare parts for free this period,if customer break it in using, customers should take charge of delivery cost.
2.Provide the solution of installation or use problem within 3 working hours.
3.Engineers able to install and train the operators overseas.
Company Information:
Saga Machinery Co., Ltd is professional high frequency woodworking machinery manufacturer in China,our product cover with high frequency vacuum wood dryer, high frequency curved plywood press, high frequency edge gluing press, high frequency wooden door frame assembly machine, high frequency wood frame assembler, high frequency generator, etc. European standard spare parts are used to keep the machine stable and uniform.
We have customers in USA,Canada,Romania,Denmark,Holland,Turkey,Belarus,Russia,Ukraine,Vietnam,India,Korea,Indonesia,Philippines,Panama,Chile,Mozambique,Israel,Croatia,etc.
Saga can provide best quaility and after-sale service, will meet customer's requirement to make the production better and better, we are not only machine factory, but also project supplier, will recommend the suitable machine and project to customer.
