4 Wheel 72V 4kw Lithium Battery 4 Seater 4 Person off Road Street Legal Hunting Club Car Bus Sport Sightseeing Electric Golf Carts Dune Utility Vehicle Buggy

Product Description

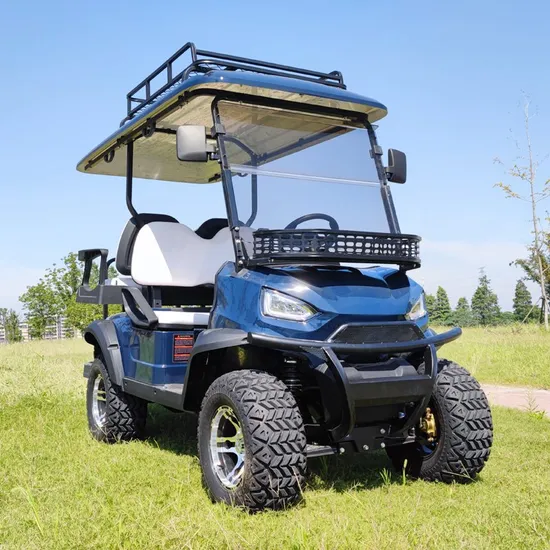

LS2020ASZ is a 4 seater electric golf carts with rear facing flip flop seat, it's powered by lithium battery and 72V AC motor, the maximum power can be 7KW. The rear flip flop seat can be either used for people moving or cargo delivery.
Electric golf car has front MacPherson independent suspension, 4 wheel hydraulic brake with front disc brake, all LED light, digital meter and many other features. Solar panel can be installed on the top of the roof to increase the range of the cart.

SPECIFICATIONS OF Mini lithium battery powered 4x4 cheap golf buggies for sale LS2020ASZ
Key Components	Controller	SME Brand, SME or China Local Brand
	Motor	4KW/5KW/7KW AC motor
	Battery	72V84AH/72V126AH Lithium Battery
Performanceand Dimensions	Passenger Capacity	(2+2)
	Range (Loaded) *	90-100kms
	Max.speed	35-45km/h
	Min. Turning Radius	3.7m
	Max. Gradeability	20%-30%
	Max. Loading Weight	320kgs
	Net Weight	510kgs
	Overall Dimensions	2980X1350X1950mm
Body and Frame
Frame (Chassis)	Welded steel framework, with anti-rust treatment of acid washing, phosphating and electro-coating
Body and Roof	PP plastic front body and rear body; PP vacuum form roof
Windshield	Organic plastic windshield, splited tinted
Roof supports	Carbon Steel, powder coated
Backrest and Seat	Reborn Sponge, artificial leather + plastic armrest
Floor	Galvanized Steel plate and anti-slip rubber floor mat
Dashboard	Plastic in black, with 4 cup holders, 2 glove storage box, forward/reverse switch, battery capacity indicator, ignition key
Side trim	Plastic
Sider mirror	2pcs, foldable
Electric System
Lighting system and horn	All LED lights, 2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with 20A voltage reducer (converting from 72V to 12V), electric horn.
Backup Buzzer	12V
Digital Meter	LCD screen, with speedometer, odometer, battery power meter and various indicators
Charger	Smart charger, input 110V-240V~50Hz-60Hz, output 72V, 20A
Steering, Brake, Transmission and Suspension
Steering System	Single-stage rack and pinion steering system, automatic rocker compensating function
Brake system	4 Wheels hydraulic front disc rear drum brake, regen brake
Accelerator	Stepless speed change
Driving mode	Rear axle two stage deceleration, motor direct driving
Rear axle	Integrated, Gear ratio12.49:1
Suspension system	Front MacPherson Independent and rear plate leaf spring + cylinder hydraulic shock absorber
Wheel & Tyre	12x7 aluminum rim & 23*10.5-12 Tire

Mini lithium battery powered 4x4 cheap golf buggies for sale
The big teeth off road tire makes electric golf buggy to be suitable for using many places for different applications, such as in hotel, resort, residential community, airport, port, stations, museum, theme park, factory, campus, garden and any places where need a quite and clean vehicles, etc..
Detailed Photos
Our AdvantagesThe first company in China who specialized in supplying lithium battery powered 72V AC system electric club car golf buggy. It gives more power, longer range, longer life span, cheaper life cost.....
3 Years Warranty Lithium Battery
LG pouch cells made lithium ion battery pack.
72V/126Ah capacity (can be improved as per customer's request), with intelligent BMS to control the charging and discharging of each cell, then to protect the battery properly, BMS can be connected to App on the mobile phone for easy operation.
4000 times life cycles based on 99% DOD.
3 Years warranty to be provided!
Lower life cost, you are deserved to have!72V AC Curtis or SME Controller
Programmable US brand Curtis Controller (72V 400A AC Controller) or Italy made SME brand Controller (72V 450A AC Controller), with regenerative brake and walk-away function.
High and Stable Quality, Powerful, Global 2 Years Warranty.72V 4KW, 5KW or 7.5KW AC Motor
Very Powerful and Maintenance Free AC motor.
Motor power varies from 4KW, 5KW and 7.5KW.
With 7.5KW motor, the climbing ability can be 35%.High Quality Rear End
High quality rear end with aluminum cage, silent, durable and no oil leakingDetails Make Difference
Optional Accessories For Choose
Let us know if you want anything specially!
Company ProfileSuzhou Lexsong Electromechanical Equipment Co., Ltd. over 17 years of experience in the electric vehicle business. 3 production lines with an annual production capacity of 15,000 units .We have exported our electric vehicles to over 40 countries worldwide We are widely used in golf courses, hotels, resorts, parks and gardens, campuses, stations, airports, residential communities, shopping centres, etc. 100 models in 10 categories for different applications. Golf carts, utility vehicles, personal transporters, sightseeing vehicles, electric trucks, rubbish trucks, fire trucks, etc. In addition, we customise your exclusive electric vehicle with short delivery times and high quality.
We can be your reliable partner for electric golf carts in China.
Certifications
Customer Photos
Packaging & Shipping
Packaging and Loading

Container loading qty	Disassembled (with top basket, front basket, front bumper)	Disassembled (without top basket, front basket, front bumper)
Qty/20'	6units	6units
Qty/40'	12units	14units
Qty/40'HQ	20units	21units

Our electric vehicles have been exported to more than 40 countries around the world
Due to our reliable quality and competitive prices, our electric vehicles have been exported to more than 40 countries around the world, and are widely used in golf courses, hotels, resorts, parks&garden, campus, stations, airports, residential communities, shopping centres, etc.
FAQQ1. Do you accept to customize the vehicles as per our special request?
Answer: Yes, we customize vehicles as per customer's speical request with reasonable cost and lead time, as long as the customization is not related to the chassis modification.
Q2. What is your warranty term? Answer: We provide 1 year warranty. And for any failed part under warranty, if it can be repaired at your side and the repair cost is lower than the valve of the part, we will cover the repair cost; otherwise, we will send replacements and cover the freight cost if any.
Q3. Do you provide after service spare parts?Answer: Yes, we provide all the spare parts to our vehicles, even 5 years after we stop the production of the vehicle. For your easier working to select the spare parts, we also supply parts manual.
Q4. Do you provide technical support?Answer: Yes, we provide technical support by email and phone. If necessary, we can also send our engineer to your place.
Q5. Do you provide vehicle assembly service if we buy the vehicles in SKD or CKD way?Answer: When the vehicle is in SKD way, the reassembly is just bolt and nut work, it is not difficult at all. Unless you have the assembly capability, we do not sell the vehicles in CKD way. If you do have bigger volume, we can send our people to give instructions.
Q6. Do you accept OEM order?Answer: Yes, as long as the order quantity is reasonable (yearly 300-500 units), we will accept.
Q7. What are your terms to be your agent/dealer in my country?Answer: We have several basic requirements, firstly you shall be in electric vehicle business for some time; secondly, you shall have the capability to provide after service to your customers; thirdly, you shall have the capability to order and sell reasonable volume of electric vehicles.
Q8: What is your payment term?Answer: For new customers, our typical payment term is 'T/T 30% deposit against order confirmation, T/T 70% before container loading'. Irrecoverable L/C at sight is also acceptable. For old customers, our payment term can be more flexiable. Please contact us for more information.
