Medical Gauze Bleaching Line Machine Medical Cotton Dyeing Machine
| US$1,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
DF-241-1860
Material
Yarn
Voltage
380V
Load Capacity
Depends
Certification
CE, ISO9001: 2000
Warranty
1 Year
Customized
Customized
Condition
New
After-sales Service
Life-Time After Sale Service
Ss Material
SS316L
Gauze Layer
1-3 Reels
Machine Height
Depends on The Capacity
Machine Diameter
1860mm
Transport Package
Standard Package
Specification
depends on the machine
Trademark
unitex
Origin
China
Production Capacity
10000PCS/Year
Product Description
Machine Name: medical guaze bleaching line is mainly used for bleaching the woven gauze.The desizing and bleaching process is finished by this line.
Till now we have provided bleaching lines and accessories to all top-rank Chinese gauze factory.
It's a customerized line, we can design as your request according to our experience and your site.
The production line including
LD-991-220 type swing arm coiling machine-→10 tons driving crane transportation-→LD-220 type reversing machine-→10 tons driving crane transportation-→gauze roll transportation track trolley-→LD-1 type horizontal cooker Bleaching machine + LD-55 type gauze vacuum suction machine -→ gauze out of cylinder -→ 10 tons of crane to lift and transport to LD992-220 type horizontal drum dryer -→ LD-2R-220 type pressurized light tracking roll Machine-→LD-220 type slitting and rolling machine (finished product)

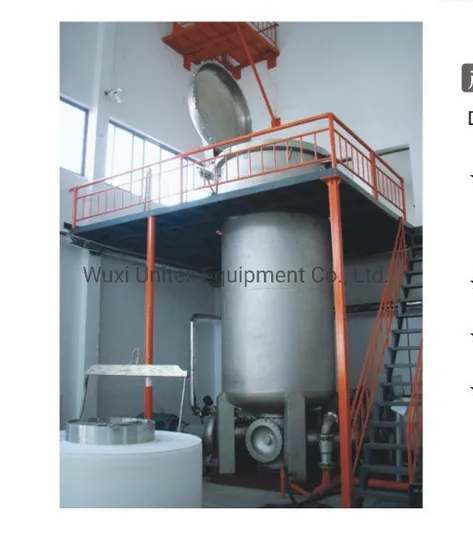

| 1 | Vertical tank | Body material SS316L, kier diameterφ1200-1860, thickness is 5-8mm, height is 1800-3000mm, the cover thickness is 6mm |
| 2 | Cover seal | Rubber seal, with pressure lock system |
| 3 | Cover open way | Air cylinder opening |
| 4 | Safety device | With safety valve, pressure gauge and Hammer Opening Cover Auxiliary |
| 5 | Water in&out | single water inlet and double outlet system, with high temperature discharge function. |
| 6 | Capacity | Gauze diameter 1050mm |
| 7 | Heating way | Inside coil pipe heating, rapid heating≥3ºC/min(steam pressure≥0.6Mpa) |
| 8 | Dosing system | 1 Dosing tank with new type stirring motor, with reverse-flow mixing system and level auto-control device |
| 9 | Dosing pump | 1 centrifugal pump 2.2kw |
gauze rolling machine
gauze drying machine
gauze bleaching machine
