Portable Uvis/Uvss Wildly Use in Border, Airport, Customs and Prison Under Vehicle Security Camera System

Portable Uvis/Uvss Wildly Use in Border, Airport, Customs and Prison Under Vehicle Security Camera System

Negotiable 1 Piece (MOQ)

Basic Info.

Model NO.
H2D-300
Screen Size
7"
Optical Zoom
Fixed Focus
Lens
OEM
Image Stabilization
Image Stabilization
Screen Type
HD Screen
Viewfinder Type
Electronic Viewfinder
External Flash
Without External Flash
Video Capture
Video Capture
Red-Eye Reduction
No
WiFi
Without WiFi
Image Sensor
CMOS
Memory Card Type
MicroSD/TF
Pole
2m Adjustable Telescopic
Camera
2 Cameras for Video Photo
Camera Resolution
5.0 MP
Camera View Angle
120 Deg
Wheel Tray Camera
5.0mega, 16 LED Lamps
LED Lamps
Adjustable Lightness 6 PCS/16PCS
Monitor
7 Inch LCD
Video Output
HDMI 1080P
Video Compression
H.264
Storage
64GB
Li-Battery
7500mAh
Transport Package
1set /Aluminum Allay Case, 8kg/ Set
Specification
CE, RoHS, FCC
Trademark
3rd Eye
Origin
China Shenzhen
Production Capacity
2000PCS/Week

Product Description

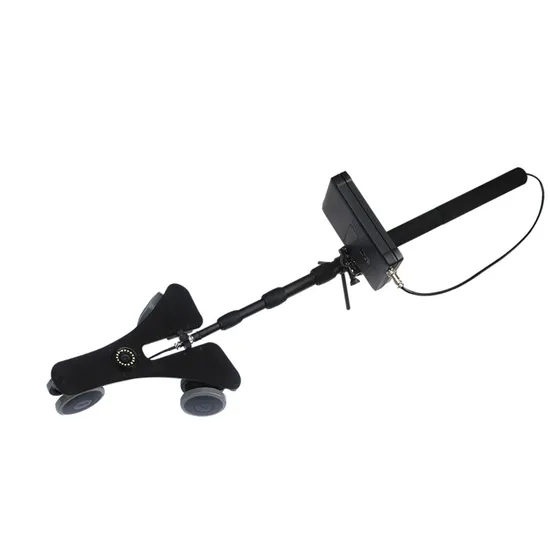

portable UVIS/UVSS Wildly use in Border, Airport, Customs and Prison Under Vehicle Security camera System
H2D-300

5.0MP HD Digital Under VehicleSecurity System H2D-300 is good vehicle checking device for public security, explosion, prison, customs and other departments.
Let's make the vehicle checking easier.
5.0MP Digital Under vehicle surveillance system mainly adopt to inspect the roof part, carriage ,beneath part of a variety of vehicles. It can quickly and accurately identify threats/ contraband/ smuggling of persons hiding everywhere. UVSS greatly improved vehicle safety inspection speed and accuracy, reduce investment in human resources.
5.0MP FULL HD 1080P Under Vehicle Scanning System , it did surpass the traditional under vehicle checking mirror.It is recordable and able to take photo and save image and video.
you won't miss any video under the vehicle. 64GB storage enough for scanning the vehicle everywhere.You won't worry about the image distort any more.
120 deg wide view angle .It comes with 18mm flexible gooseneck mini cameras heads, you can check everywhere as you want.
HDMI video output support much bigger TV screen offer you much better vision.
It won't be smudged and fragile , you can take it everywhere.
Special Features:
Double HD digital cameras for checking.
1st camera:5.0Mega 16 LED camera with universal wheel
2nd camera:5.0 Mega 6 LED camera Φ18mm with 0.25m flexible pole
Universal wheel with wear-resisting tires
Reinforced design passed 10000 times crash testing
7 inch monitor with sunshade
Support 64GB storage
Support HDMI video output
Support H.264 Video Compression Format
5000mah li-battery, 8 hours working time
2m Telescopic Survey Pole for all-purpose usage
Top grade aluminum allay case
Excellent video and photo
Specification:
Digital camera for wheels tray Optical Element 1/2.5 CMOS Sensor SONY
Optical Total Pixels 5.0 Mega :3200(H)×1800(V)
CMOS Sensor Size 5.6mm(H)×3.14mm(V)
LED lamps 16 pcs LED lamps high light
Sensitivity 0.08Lux/F1.2
Lens & View angle 3.6mm F1.2 (H )120 °
HD Video Output Interface FPD-Link3
Wheels on the tray Omni-directional wheel
Dimension & Weight 37 x 46mm, 35g(only camera)
Cable(5 Cores High-Speed Line) Diameter:4.0mm Length:3meters
Mini camera for soft metal pipe Optical Element 1/3 CMOS Sensor
Optical Total Pixels 5.0Mega:3200(H)×1800(V)
CMOS Sensor Size 5.07mm(H)×3.38mm(V)
LED lamps 6 pcs LED lamps hight light
Sensitivity 0.2Lux/F1.2
Lens & View angle 0.5mm F1.2 120 °
HD Video Output Interface FPD-Link3
Dimension & Weight 18 x 28mm, 10g
Cable(5Cores High-Speed Line) Diameter:4mm Length:3meters
Flexible pipe lenth 25cm soft metal pipe
Telescopic Pole Constriction Length:58cm Unfolded Length:228cm
DVR
7" SCREEN
HD Video Output HDMI:1920* 1080;1280*720
Video Storage Pixels(16:9) HDMI:1920* 1080;1280*720
Video Compression Format H.264
Video Storage AVI
HD Digital Video Input Interface FPD-Link 3
Photo Format JPG 5.0 MP :3200(H)×1800(V)
Storage External SD card TF card 1GB-64GB(Optional)
Operating System Windows & Mac OS
Port USB 2.0
Language Multiple
Voltage DC :7-24V USB DC:5V
Current(Monitor mode) 600 mA
Current(Video mode) 700 mA
AC Adapter DC 12V 1A
Built-in Battery Li-battery 5000mAh
Record time 8 hours
Dimension: 177mm x120mm x 20mm
Sunshade One-press open sunshade
Weight 350 g

What is in the parcel?
1* gooseneck inspection camera
1* wheel tray under vehicle security camera
1*7 inch monitor with sunshade
1*2m adjustable telescopic pole
1*HDMI cable
1*USB cable
1*AC adapter
1* Aluminum alloy case
1*8GB TF card
1*User manual

For more details, please watch video on youtube:
https://3rdeye-minicam.en.made-in-china.com (Product show)
https://3rdeye-minicam.en.made-in-china.com (real usage outside)
OEM/ODM available:

1) Laser print logo on the uvis device

2) Customized camera housing

3) Customized Color Box

4) Any your idea on camera we can help you to design and put it into production


After-Sale Service:

1) All products will be strictly Quality Checked in house before packing

2) All products will be well packed before shipping

3) All our products have 2 year warranty.


FAQ:
Q: Where do you ship from?
A: We shipped from Shenzhen, China.

Q: When will you ship out the item and can I have the tracking NO.?
A: Item will be shipped within 1-3 working days upon payment received(Holidays excluded), and of course, tracking will be updated to you ASAP.

Q: What kind payment mode do you accept ?
A: You can do payment via paypal , T/T,Western Union, Moneygram.

Q: Do you accept small orders like 1 pcs, 2pcs, 5pcs?
A: Yes,we can start with sample order ,the unit price will be different based on different quantities.
