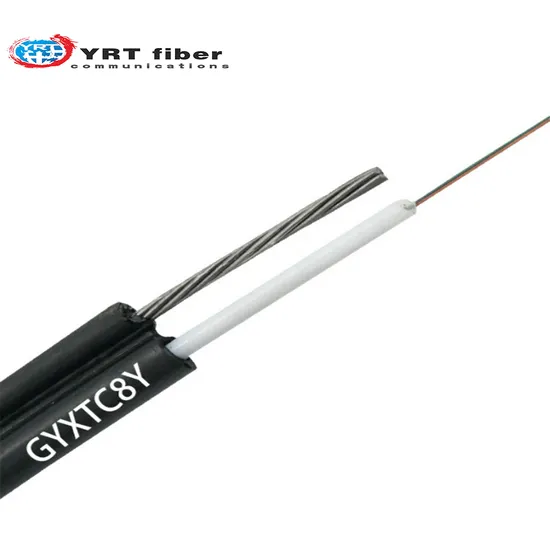

Gyxtc-8y 6/8/12-Core Communication Overhead 8-Shaped Suspension Wire Armored Optical Fiber

Product Description

Product Description Product Description
Characterstic
•Low insertion loss, high return loss.
•Excellent mechanical endurance.
•High credibility and stability.
•Good in repeatability and exchangeability.
•100% Insertion, Return Lossz End Face and Interference inspection.
Feature
•Can be installed without shutting off the power
•Light weight and small diameter reducing the load caused by ice and wind and the load on towers and back props
•Large span length and the largest span is over 1000m
•Good performance of tensile strength and temperature
•Long span life, over 30 years Detailed Photos
Technical Parameters

Model	Fiber Count	Steel wire Diameter (mm)	Weight (kg/km)	Tensile Strength Long /Short term N	Crush Resistance N/100mm	Bending Radius Static/ Dynamic mm
GYXTC-8Y-2	4	1.6	87	400/1000	1000/2000	10D/20D
GYXTC-8Y-6	6	1.6	87	400/1000	1000/2000	10D/20D
GYXTC-8Y-8	8	1.6	87	400/1000	1000/2000	10D/20D
GYXTC-8Y-12	12	1.6	87	400/1000	1000/2000	10D/20D
GYXTC-8Y-24	24	1.6	93	400/1000	1000/2000	10D/20D

Technical Parameters

Model	Fiber Count	Steel wire Diameter (mm)	Weight (kg/km)	Tensile Strength Long /Short term N	Crush Resistance N/100mm	Bending Radius Static/ Dynamic mm
GYXTC-8Y-2	4	1.6	47	400/1000	1000/2000	10D/20D
GYXTC-8Y-6	6	1.6	47	400/1000	1000/2000	10D/20D
GYXTC-8Y-8	8	1.6	47	400/1000	1000/2000	10D/20D
GYXTC-8Y-12	12	1.6	47	400/1000	1000/2000	10D/20D

Application 0
01
Our Factory

Certification
Packing
Company Profile Company Profile: YRTFIBER
General Information:
- YRTFIBER is a renowned manufacturer specializing in fiber optic products.
- The company focuses on producing a wide range of indoor and outdoor fiber optic cables, fiber optic patch cords, FTTH drop cables, fiber optic connectors, PLC splitters, and other passive fiber optic accessories.
- The factory is located in Qingfeng County, Puyang City, Henan Province, with a branch office in Building 390, World Center, Wuhan City, Hubei Province.
- YRTFIBER is committed to providing customers with exceptional service and has made substantial investments to stay abreast of industry standards.
- The company's manufacturing process adheres to strict quality control measures, ensuring the production of high-quality products, efficient packaging, and fast lead times.
- YRTFIBER's management and production practices comply with ISO9001, ISO14001, OHSAS18001, and SGS certifications.
Product Offerings:
- Indoor and outdoor fiber optic cables
- Fiber optic patch cords
- FTTH drop cables
- Fiber optic connectors
- PLC splitters
- Other passive fiber optic accessories
Key Features:
- Utilizes high-quality raw materials for product manufacturing.
- Equipped with advanced manufacturing equipment.
- Employs highly skilled workers to ensure superior product quality.
- Strong emphasis on excellent packaging and prompt delivery.
Partnership Opportunities:
- YRTFIBER welcomes inquiries and interest in any of the company's products.
- For more detailed information or queries, customers are encouraged to reach out to the company.
- The company values customer feedback and looks forward to cooperating with clients worldwide.
Our Exhibition FAQ: 1.Are you the real manufacturer?
Yes. We are the real manufacturer.
3.Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
2 years
5.Which kind of certification you have ?
ISO9001, SGS, CCC, RoHs,CE
6.What is your delivery time?
Usually within 7-20 working days
7.How do you ship the cables?
Cables will be shipped by Sea, Air, DHL, Fedex, EMS etc.
8.What is your payment way?
We accept T/T, Western Union, D/P etc.
9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
