1bz-2.5 Disc Harrow (disc harrow) Heavy-Duty Disc Harrow
Basic Info.
Model NO.
1BZ-1.8/2.2/2.5/3.0/3.4
Application Field
Agriculture, Livestock, Aquaculture, Forestry
Farming Policy
Dry Cultivating Machinery
Power Source
Tractor
Operation
Soil Preparation Machinery
Traction Type
Traction
Drive Type
Transmission Shaft
Arbor Configuration
Vertical Shaft
Certification
CE
Color
Green
Warranty
One Year Warranty
Price
Best
Colour
Many
Quality
Best
Transport Package
Iron Frame
Specification
ISO9001: 2000
Trademark
Dadi
Origin
China Shandong
HS Code
8432809000
Production Capacity
5000sets/Year
Product Description

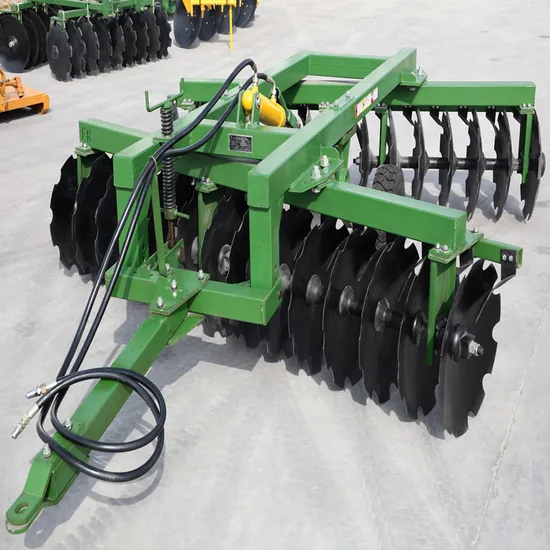

Heavy-duty disc harrow
The series heavy-duty offset disc harrow are mainly used for cleaning away stubble of plants before tillage, or crushing clods after tillage on uncultivated land and in sticky heavy clay soil fields, they can also be used as a plough for primary tillage in dry cultivated fields.
The series products are all fitted with hydraulic rubber wheel for transportation, It is easy to be transported and change direction on the edge of fields.
Disc harrow, disk harrow.harrow disk light disc harrow,heavy duty disc harrow,disc harrow factory,disc harrow in China,high quality disc harrow,farm disc harrow
Warranty :12 month
The series products are all fitted with hydraulic rubber wheel for transportation, It is easy to be transported and change direction on the edge of fields.
Technical parameters:
Specifications:
| Model | Unit | 1BZ-1.8 | 1BZ-2.2 | 1BZ-2.5 | 1BZ-3.0 | 1BZ-3.4 |
| Overall size | cm | 480*200*134 | 482*244*134 | 532*288*134 | 532*332*134 | 582*376*134 |
| Weight | kg | 1050-1100 | 1250-1300 | 1380-1430 | 1500-1550 | 1650-1700 |
| Working width | m | 1.8 | 2.0 | 2.5 | 3.0 | 3.4 |
| Working depth | cm | 20 | ||||
| Disc space | mm | 230 | ||||
| Qty. of disc | pc | 16 | 20 | 24 | 28 | 32 |
| Dia. Of disc | mm | 660 | ||||
| Ground clearance | mm | >160 | ||||
| Productivity | ha/h | 1.1 | 1.3 | 1.4 | 1.7 | 1.9 |
| Matched power | hp | 65-80 | 75-90 | 80-100 | 90-100 | 100-120 |
| Linkage | Trailed | |||||
| Model | Unit | 1BZ-3.9 | 1BZ-4.4 | 1BZ-5.3 | 1BZ-6.2 |
| Overall size | cm | 582*418*136 | 582*465*136 | 716*288*150 | 750*656*150 |
| Weight | kg | 2400-2450 | 2600-2650 | 3250-3300 | 3750-3800 |
| Working width | m | 3.9 | 4.4 | 5.3 | 6.2 |
| Working depth | cm | 20 | |||
| Disc space | mm | 230 | |||
| Qty. of disc | pc | 36 | 40 | 48 | 56 |
| Dia. Of disc | mm | 660 | |||
| Ground clearance | mm | >160 | |||
| Productivity | ha/h | 2.4 | 3 | 4 | 5 |
| Matched power | hp | 120-150 | 130-150 | 150-180 | 160-180 |
| FOB Price | unit | 4350USD | 5000USD | 6250USD | 7200USD |
| Linkage | Trailed | ||||
