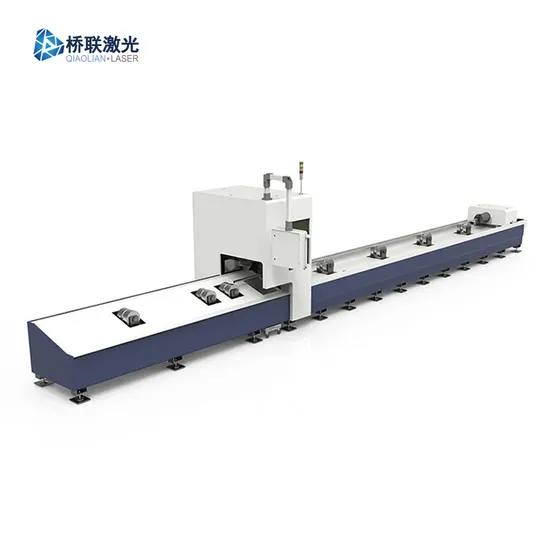

3000W 6000W 12000W CNC Fiber Metal Tube Laser Cutting Machine for Round Pipe Square Tube H Beam C-Steel Angle Steel Elliptic Tube

Product Description

3000w 6000w 12000w cnc fiber metal tube laser cutting machine for round pipe square tube H Beam C-Steel Angle steel elliptic tube Product Description
1. 3-chuck Clamping Technology
2.Real 0 tailing without tube length restriction
3.Cut 12000mm entire tube at most
4.Maximum pipe diameter 4505.Maximize the weight of single tube
6.Cover can be optional.
7.Automatic uploading can be optional
8.3D cutting function can be optional
II. Advantages of tube laser cutting machine
1.Multi-point Supporting for Heavy Tubes
Tubes are usually clamped and supported by three chucks concurrently. Any tube deformation can be automatically corrected to keep cutting precision high and cutting products of uniform size.
2.EtherCAT bus system
FSCUT5000 series is EtherCAT bus system specially designed for fiber laser pipe cutting machine. Work with TubesT 3D nesting software, it will achieve most efficiency and minimum waste.

3.Auto Focus tube Laser Cutting Head
The product is equipped with slender TRA components and slender nozzles, which can adapt to any complex tube cutting and cutting product conditions, and has a built-in motor drive unit, which drives the focusing mirror to automatically change its position within a certain range through a linear mechanism. It can realize continuous focusing, complete rapid perforation and automatic cutting of pipes of different thicknesses and materials; the optimized optical and water-cooled design enables the laser head to work continuously and stably for a long time.

4.Perform Well in Tube Cutting Cut max. 12000mm entire tubeMax. cutting range of round tube Φ20-450mmAlso cut profiles like channel, angle and I-shaped steel etc.

5.Imported Parts, Precision Guaranteed

Equipped with dualhigh-powered servo motors and drivers which from German	Core transmission parts like speed reducer and gears are imported from Japan	High-precision racks,guide rails and ball screws are produced by world-famous brands.

6. Quality Control System Rigorous quality inspection of the assembly process, perfect quality system, high-precision inspection and inspection equipment: laser interferometer, laser collimator and three-coordinate projector, to ensure that each delivered customer equipment can meet the company's factory quality standards;

Product Parameters
III. Parameters of tube laser cutting machine

Model	JCT3612	JCT3616	JCT3622	JCT3628	JCT3632	JCT3635	JCT3645
Power	1000W-12000W
Min.Dia(mm)	20
Max.Dia(mm)	120	160	220	280	320	350	450
Tube length(mm)	3000 / 6000 / 9000 / 12000
Maximum revolutions of chuck(RPM)	80-120
X/Y-axis Positioning Accuracy	±0.05mm
X/Y-axis Repositioning Accuracy	±0.03mm
Positioning speed	90m/min
Max. Acceleration	1G

*The above data are for reference only, subject to the actual product!
