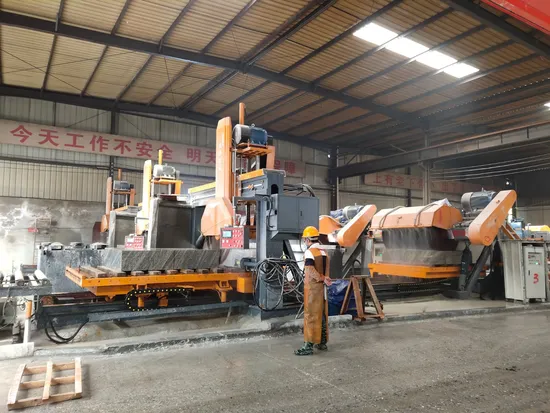

Granite Marble Kerbstone Cutting Machine – Advanced Stone Cutter for Natural Kerbstone Production

Product Description

Product Description
Hot Sale granite stone cutting machine for kerbstone
Machine Features: Note:if single DF1200-12 is required, roller on worktable is no need

Technical parameters:
Advantages:
1. No foundation needed, easy installation, easy for shipping.
2. It adopts enlarged trolley, 2 pcs of block can be cut at one time, which can greatly improve output and efficiency.
3. It uses the main spindle and a vice spindle to seal together which can ensure the machine stable while cutting hard granite.
4. It uses a simple program of movement on the controlling box, easy for setting and handling.
5. A hydraulic system is adopted on the machine

Production process:
1. Put the machine on the prepared ground.
2. Put several pieces of wood as thick as 50mm on the worktable to prevent blades cutting into the worktable.
3. Install water pipe.
4. Blade installation: Open blade cover, unscrew 8 retaining bolts and positioning bolts with dedicated spanner, loosen auxiliary spindle (shaft), put on blades and clamping plates as per intended stone size (thickness), align oil hole of auxiliary spindle to air hole according to the arrow direction on auxiliary spindle and box, have them fixed with bolts, close blade cover.
5. Check transmission fluids of spindle box, auxiliary spindle box, trolley track and lifting parts.
6. Connect control cabinet power.

After Sales Service:
We provide skilled and rich experience technician for installation and after-sale service.
Main Parts of the Machine:

About Us

DAFON Machinery is located in Quanzhou City, the hometown of overseas Chinese in southern Fujian Province, we are a professional stone machinery company integrates design, manufacture, sale as a whole. We mainly produce a curbstone assembly line machine, infrared trimming machine, automatic trimming machine, infrared middle block cutting machine, single-arm multi-blades cutting machine, large gantry cutting machine, bridge stone cutting machine, mining machine and all sorts of stone cutting machines.

More Product

FQA

Q. Do you have different quality grades and bonds for different materials?
A. Yes, for more than 10 years, we have accumulated rich experience on diamond tools production. Regular quality grades(A/B/C) and bonds(hard/medium/soft) are available for various types of materials and machines. We can customize product as per special requests(price/dimension) from clients.

Q. Do you offer free samples?
A. Normally we do not offer free sample. But further solutions will be discussed respectively upon request.

Q. If we need technical support, can you offer us?
A. Sure, we have pre-sale and after-sale service team to offer technical support, Well-trained salespersons and engineers are always to ready to respond to your technical doubts.

Q. Are you a manufacturer or trading company?
A. We are a professional stone machinery manufacturing company.We have our own production team and R & D team.

Q. How about the quality of machines?
A. We have our own experienced QC. All machines are manufactured strictly according to the national and international standards.Our machines will be strictly inspected and controlled before delivery.

Q. What is the MOQ ?
A. One set machine
