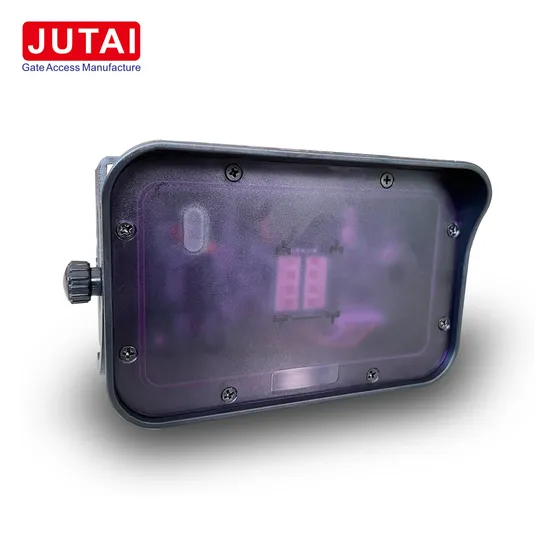

Vehicle Motion Detector/Safety Sensor/Microwave Radar Detector/ for Industrial Doors

Product Description

Product Name: Vehicle Motion Detector/Safety Sensor/Microwave Radar Detector for Industrial Doors
Category: Probe, Sensor
Keywords: Microwave Motion Sensor, Infrared Beam Sensor, Automatic Door Sensor, Motion Sensor, Door Sensor, Photoelectric Sensor, Infrared Sensor, Motion Detector, PIR Motion Sensor, Roller Shutter Doors, Industrial Motion Sensor, Safety Beam Detector, Radar Motion Sensor, Vehicle Safety Sensor, Security Motion Detector, Microwave Radar Detector, Automatic Gate Sensor, Door Safety Beam, Infrared Motion Sensor, Vehicle Motion Detector
Description: The Vehicle Motion Detector/Safety Sensor/Microwave Radar Detector for Industrial Doors is a top-of-the-line sensor designed to enhance safety and security in industrial settings. This advanced sensor uses microwave technology to detect vehicle motion accurately, making it ideal for use in industrial doors and automatic gates. With features such as infrared beam sensing and PIR motion detection, this sensor ensures reliable performance and quick response times. The Vehicle Motion Detector is easy to install and compatible with various industrial door systems, providing peace of mind and increased safety for your workplace.
Product description:TheRVP42-9Mmicrowave sensors have been specially designed to increase the comfort of opening all types of automatic doors. TheRVP42-9Mmicrowaves provide fast detection for all automatic door installations and particularly for applications with high-speed entries. Due to the industrial design and easy installation, these sensors will fit on every header or ceiling in any application you can imagine.
It is a 24G millimeter-wave radar that can distinguish between pedestrians and vehicles by analyzing the characteristics of the human body and vehicle movement and electromagnetic reflection characteristics. It can accurately determine the vehicle's driving direction and filter pedestrians. Users can choose one-way (toward) detection or two-way detection according to actual needs.
Product features:1.Detection Area:
The microwave range offers a narrow or wide detection area that makes it suitable for all types of installations. The narrow setting is easy to set by simply clicking the narrow lens onto the radar module. By turning the module left or right and tilting it up and down the microwave can be adjusted quickly and easily for many different applications. No external set-up device is needed. Adjust the detection area with a Sensitivity potentiometer.
2.Dual Relays Outputs:
It is a fully customizable, hands-free radar motion sensor equipped with dual relays:
a.Vehicle-detection relay active
b.Person-detection relay active
c.Vehicle-detection relay and person-detection relay both active
The below setting shows only active the vehicle-detection mode, not for person-detection.it can be set according to your project requirement.
3.Direction Recognition
It can be set the direction detection:
-Motion forward and close to the sensor
-Backward movement away from the sensor
-Forward and backward.
4.Energy Savings
- It increases energy efficiency and controls pests by limiting activation to approaching traffic only. Meaning the door will only be left open when someone is using it, and will automatically close when they depart.
5.Speed up workflows
- Experience seamless door automation with our advanced Vehicle Motion Detector. No need to stop and push a button-simply install or retrofit for both dock and pedestrian doors.
-Enhance your detection precision with adjustable settings. Our system filters for pedestrians, forklifts, and rejects parallel traffic, distinguishing between approaching and departing vehicles.
6. Effortless Remote Control Adjustments
-Quickly and safely make changes from the ground using our intuitive remote control programming.
Applications:
Factory Entrances and Exits Optimized for Pedestrian and Parallel Traffic Rejection Effective in Parking Garage Detection Efficient Barrier Arm Activation Product Installation Guidelines:
-Ensure the detector is securely mounted on a flat, vibration-free surface.
-Avoid placing obstructions like plants or signs in the detection area.
-Do not obscure the detector with covers or signs.
-Keep fluorescent lamps away from the detection area to avoid interference. JUTAI Radar Details:
1. Sleek Appearance:

2. Compact Dimensions:

3. Simplified Wiring:
4. Advanced Technical Data:

Application technology	Doppler radar
Transmission frequency	24.125 GHz
Transmission power	<20dBm
Detection height	2.0m to 9.0m
Angle adjustment	0°-180° longitudinal
Detection speed	5cm/s~25km/s
Detection area(30°Angle)	3.0m*3.5m @ height: 2m 6.5m*8.5m @ height: 9m
Operation voltage	12~28 VAC, 12~36 VDC
Operation current	Max. 75 mA
Power frequency	50 hz
Temperature range	-30ºC to+60ºC
Relative humidity	0% to 95%, no condensation
Protection grade	IP65
Relay output	Max.48 VAC/DC, Max. current 1A
External dimensions	162mm × 110mm × 65mm
Cable length	7 m
Sensor weight	400 g
