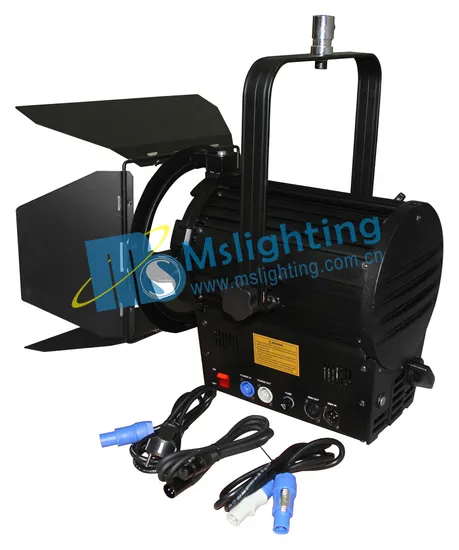

100W/300W COB Cw/Ww/RGB/RGBW/RGBA/RGBWA/Rgbwauv LED Profile Ellipsoidal Spot Light
Basic Info.
Model NO.
LED-FT100/ LED-FT300
Application
Stage, Dance Effect Lights, Film and Television, Disco
IP Rating
IP20
Certification
CE, RoHS, SGS
Usage
Theatres, Stage , Robust Housing
Control Mode
DMX 512 ,Autorun and Master/Slave
LED Lamp Color
Cw/Ww/RGB/RGBW/RGBA/RGBWA/Rgbwau^.
Light Source
1*100W/300W LED COB
Input Voltage(V)
90-250V,50-60Hz
Lamp Luminous Efficiency(Lm/W)
99%
Setting and Addressing
4-Digit LED
DMX Data in/out
XLR 3pin / XLR 5pin
Electronic Dimmer
0-100% Linear Dimmer
Electronic Strobe
1-30 Flashes/Second
Transport Package
Carton/Flycase
Specification
Packing Size: 35*47*49cm Weight: 8.5kgs
Trademark
MSLighting
Origin
Guangzhou, China
HS Code
94054090
Production Capacity
500PCS/Week
Product Description
| Quick Details | |
| Light Source: | 100/200W/300W LED COB |
| Input Voltage(V): | 90-250V ,50-60Hz |
| Lamp Luminous Efficiency(lm/w) | 99% |
| Certification: | CE,EMC |
| Model Number: | LED FT100/ LED FT300 |
| Usage: | Theatres, stage , robust housing |
| Control mode: | DMX 512, Auto run and Master/Slave,sound… |
| DMX Channels Details for 1 color | CH1 - Dimmer intensity 0-100% |
| CH2 - Strobe, the speed from slow to quick | |
| DMX Channels Details for 2 color (2in1) (2CH/4CH) | CH 1 - General Dimmer (1-255, dimmer, from dark to bright) |
| CH 2 - Color 1 (1-255, dimmer, from dark to bright) | |
| CH 3 - Color 2 (1-255, dimmer, from dark to bright) | |
| CH 4 - Strobe & speed adjustment | |
| DMX Channels Details for 3 color (3in1) (3CH/6CH) | CH 1 - General dimmer (1-255, from dart to light) |
| CH 2 - Color 1 (1-255, Dimmer,from dart to light) | |
| CH 3 - Color 2 (1-255, Dimmer,from dart to light) | |
| CH 4 - Color 3 (1-255, Dimmer,from dart to light) | |
| CH 5 - Strobe & Color change/ color gradual change open | |
| CH 6 - Speed adjustment | |
| DMX Channels Details for 4 color (4in1) (4CH/7CH) | CH 1 - General dimmer (1-255, from dart to light) |
| CH 2 - Color 1 (1-255, Dimmer,from dart to light) | |
| CH 3 - Color 2 (1-255, Dimmer,from dart to light) | |
| CH 4 - Color 3 (1-255, Dimmer,from dart to light) | |
| CH 5 - Color 4 (1-255, Dimmer,from dart to light) | |
| CH 6 - Strobe & Color change/ color gradual change open | |
| CH 7 - Speed adjustment | |
| DMX Channels Details for 5 color (5in1) (5CH/8CH) | CH 1 - General dimmer (1-255, from dart to light) |
| CH 2 - Color 1 (1-255, Dimmer,from dart to light) | |
| CH 3 - Color 2 (1-255, Dimmer,from dart to light) | |
| CH 4 - Color 3 (1-255, Dimmer,from dart to light) | |
| CH 5 - Color 4 (1-255, Dimmer,from dart to light) | |
| CH 6 - Color 5 (1-255, Dimmer,from dart to light) | |
| CH 7 - Strobe & Color change/ color gradual change open | |
| CH 8 - Speed adjustment | |
| DMX Channels Details for 6 color (6in1) (6CH/9CH) | CH 1 - General dimmer (1-255, from dart to light) |
| CH 2 - Color 1 (1-255, Dimmer,from dart to light) | |
| CH 3 - Color 2 (1-255, Dimmer,from dart to light) | |
| CH 4 - Color 3 (1-255, Dimmer,from dart to light) | |
| CH 5 - Color 4 (1-255, Dimmer,from dart to light) | |
| CH 6 - Color 5 (1-255, Dimmer,from dart to light) | |
| CH 7 - Color 6 (1-255, Dimmer,from dart to light) | |
| CH 8 - Strobe & Color change/ color gradual change open | |
| CH 9 - Speed adjustment | |
| Setting and Addressing: | 4-digit LED |
| DMX Data In/Out: | XLR 3Pin |
| Electronic Dimmer: | 0-100% linear dimmer |
| ZOOM | 15-60degree by manual. |
| Electronic Strobe: | 1-30 flashes/second |
| warranty: | 2 year |
| Switch Power Supply | Built-in and auto switching |
| Power In: | Fixed |
| CRI (Ra>): | 95 |
| Working Lifetime(Hour): | 60000 |
| Center Beam illuminance: | 1) 19°: 10,600Lux@2.5mtr |
| 2) 26°: 7,500Lux@2.5mtr | |
| 3) 40°: 5,500Lux@2.5mtr | |
| Drive Mode: | onstant Current |
| Emitting Color: | CW/WW/RGB/RGBW/RGBA/RGBWA/RGBWAU…. |
| LED Colour temperature- Warm White | 3200- 3300K |
| LED Colour temperature- Cold White | 6500K |
| Cooling: | Entire casing as heat sink plus 1 noiseless fans |
| Flicker Free | Refresh Rate >2000 Hz |
| Lamp Luminous Flux(lm): | 100W: 7000 |
| 200W: 14000 | |
| 300W: 21000 | |
| Color Temperature(CCT): | CW/WW/RGB/RGBW/RGBA/RGBWA/RGBWAUV |
| IP Rating: | IP33 |
| Brand Name: | MSLighting |
| Shell colour | Black |
| Shell Material | Silver |
| Key point: | Temperature-protected handly |
| Working Temperature | -40 °C- +60°C |
| Packaging & Delivery | |
| Packaging Detail: | Standard Export packing by carton or OEM package |
| Delivery Detail: | 2-5 days for sample , 5-12 days for mass quantity order |
| Key point : | |
| 1. Ideal for theatres , stages , robust housing, locking possibility at the mounting bracket | |
| 2. Easy lamp replacement | |
| 3. Temperature-protected handle | |
| 4. With single yoke |
