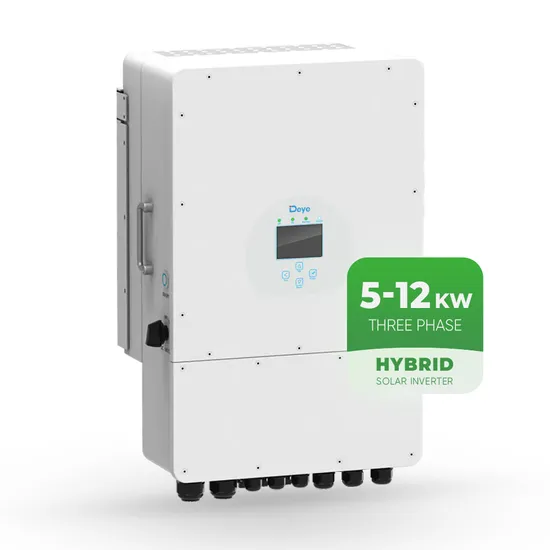

Deye Low Frequency 48V 8 10 12Kva 3Ph Mppt Hybrid Grid Solar Power Inverter Price With Wifi
| US$1,890.00-2,147.00 | 2 Pieces (MOQ) |
Basic Info.
Nature of Source Flow
Active Inverter
Phase
Single
Output Power
5-12kw
Certification
CE, ROHS, ISO9001, IEC
Brand
Growatt
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Half-Bridge Type
Nature of Wave String
Sine Wave Inverter
Product Name
Deye Hybrid Solar Inverter
Application
Solar Power System Home
Communication
WiFi/ GPRS
Communication with BMS
RS485 / DRM / Pocket WiFi
Battery Voltage
48 VDC
Efficiency
93%-97% (High Efficiency)
OEM
OEM Accepted
MPPT Range @ Operating Voltage
150-500V
Capacity
5-12KW
Transport Package
Carton Package
Specification
464W*798.4H*300D
Trademark
Deye
Origin
China
HS Code
8504403090
Production Capacity
1000 Piece/Pieces Per Week
Product Description
Product Description| Model | SUN-8K-SG04LP3 | SUN-10K-SG04LP3 | SUN-12K-SG04LP3 |
| Battery Input Data | |||
| Battery Type | Lead-acid or Li-lon | ||
| Battery Voltage Range (V) | 40~60V | ||
| Max. Charging Current (A) | 190A | 210A | 240A |
| Max. Discharging Current (A) | 190A | 210A | 240A |
| Charging Curve | 3 Stages / Equalization | ||
| External Temperature Sensor | Optional | ||
| Charging Strategy for Li-Ion Battery | Self-adaption to BMS | ||
| PV String Input Data | |||
| Max. DC Input Power (W) | 10400W | 13000W | 15600W |
| PV Input Voltage (V) | 550V (150V~800V) | ||
| MPPT Range (V) | 200V-650V | ||
| Start-up Voltage (V) | 160V | ||
| PV Input Current (A) | 13A+13A | 26A+13A | 26A+13A |
| No.of MPPT Trackers | 2 | ||
| No.of Strings Per MPPT Tracker | 1+1 | 2+1 | 2+1 |
| AC Output Data | |||
| Rated AC Output and UPS Power (W) | 8000W | 10000W | 12000W |
| Max. AC Output Power (W) | 8800W | 11000W | 12000W |
| Peak Power (off grid) | 2 times of rated power, 10 S | ||
| AC Output Rated Current (A) | 12A | 15A | 18A |
| Max. AC Current (A) | 18A | 23A | 27A |
| Max. Continuous AC Passthrough (A) | 50A | ||
| Output Frequency and Voltage | 50/60Hz; 230/400Vac (Three phase) | ||
| Grid Type | Current Harmonic Distortion | ||
| Current Harmonic Distortion | THD<3% (Linear load<1.5%) | ||
| Efficiency | |||
| Max. Efficiency | 97.60% | ||
| Euro Efficiency | 97.00% | ||
| MPPT Efficiency | 99.90% | ||
| Certififications and Standards | |||
| Grid Regulation | IEC61727, IEC62116, IEC60068, IEC61683, NRS 097-2-1 | ||
| Safety EMC / Standard | IEC62109-1/-2, IEC61000-6-1, IEC61000-6-3, IEC61000-3-11, IEC61000-3-12 | ||
| General Data | |||
| Operating Temperature Range (ºC ) | -25~60ºC , >45ºC Derating | ||
| Cooling | Smart cooling | ||
| Noise (dB) | <30 dB | ||
| Communication with BMS | RS485; CAN | ||
| Weight (kg) | 36.8 | ||
| Size (mm) | 422W×658H×281D | ||
| Protection Degree | IP65 | ||
| Installation Style | Wall-mounted | ||
| Warranty | 5 years | ||
