Refill Natural Gas CO2 Argon Tank for Sale

Product Description

Products Description As one of the important components of the whole industry chain serving the low temperature industry, Honto brand cryogenic storage tank products can provide different insulation methods for the industry users at present, such as ordinary stacking insulation, vacuum powder insulation, high vacuum multilayer insulation, etc.; from 3.8m3 to 50000m3, various fixed pressure vessels and fixed atmospheric pressure vessels of different volumes. Through 20 years of technology accumulation, Hongtu series of cryogenic storage tank products and business scale have been in the forefront of the country. It has the overall solutions in various fields from storage to industrial application for industry users, and fully meets the needs of industry users. Looking forward to the future, Hongtu company will base on the scientific and technological achievements achieved, and realize the second leap in the large-scale and scientific and technological products.
CRYOGENIC STORAGE TANK Design codes: GB150, GB/T18442, ASME VIII-1Capacity: 5~200m3; Working Pressure:0.8~1.2MPa; Type: Vertical/Horizontal;Material: S30408/SA240 304 (for Inner tank) ; Q345R/16MnDR/SA516 (for outer tank)

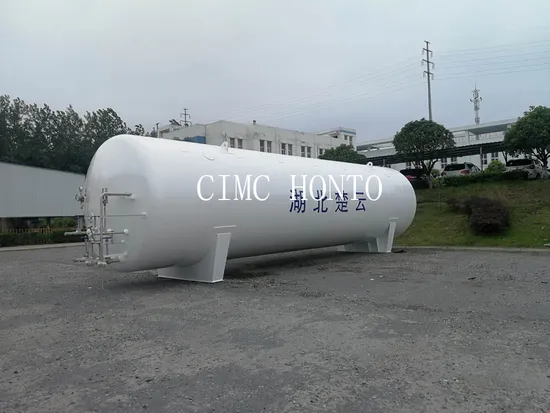

Cryogenic Storage Tank for LNG
Capacity	11.12m³	11.2m³	22.3m³	33.4m³	44.5m³	55.6m³	200m³
Design Code	GB	ASME VIII-1 2013
Type	Horizontal	Vertical					Horizontal
Liquid	LNG
Filling Ratio	≤0.9
Curb Weight	6300KGS	8830KGS	12600KGS	16260KGS	23700KGS	27600KGS	72800KGS
Filling Weight	4260KGS	4260KGS	8520KGS	12780KGS	17040KGS	21300KGS	76680KGS
Total Weight	10560KGS	13090KGS	21120KGS	29040KGS	40740KGS	48900KGS	149480KGS
Design Pressure (Inner tank)	1.36MPa	0.88MPa			1.76MPa		1.0MPa
Design Pressure (Outer tank)	-0.1MPa
Working Pressure (Inner tank)	1.24MPa	0.8MPa			1.6MPa		0.8MPa
Working Pressure (Outer tank)	-0.1MPa
Design Temperature	Inner Tank -196ºC, Outer Tank 50ºC
Overall Dimension (mm)	5500x2416x2770	6180x2520x2520	9720x2520x2520	13250x2520x2520	11665x3020x3020	13910x3020x3020	24254x4024x4320
Material (Inner tank)	SA30408	SA240 304
Material (Outer tank)	Q345R	SA-516 GR.70					Q345R
Head Type	Elliptical
Insulation Type	High Vacuum Multi-Layer Insulation

Cryogenic Storage Tank for Liquid Oxygen, Liquid Nitrogen, Carbon Dioxide, etc.
Design Code	GB150 GB/T18442 GB/T18442.7	ASME VIII-1 2013(inner tank) GB150(Outer tank)	GB150 GB/T18442 GB/T18442.7	GB150 GB/T18442	GB150 GB/T18442
Type	Vertical			Horizontal	Vertical
Capacity	3.16m³	11.4m³	63.2m³	31.6lm³	52.7m³
Liquid	LO2		LN2	LCO2
Filling Ratio	≤0.95
Curb Weight	3500KGS	14300KGS	22000KGS	18500KGS	22000KGS
Filling Weight	3420KGS	12357KGS	48420KGS	30540KGS	54100KGS
Total Weight	6920KGS	26657KGS	70420KGS	49040KGS	76100KGS
Design Pressure (Inner tank)	1.6MPa	1.82MPa	0.88MPa	2.31MPa
Design Pressure (Outer tank)	-0.1MPa
Working Pressure (Inner tank)	1.52MPa	1.6MPa	0.8MPa	2.2MPa
Working Pressure (Outer tank)	-0.1MPa
Design Temperature	Inner Tank -196ºC, Outer Tank 50ºC		Inner Tank -196ºC, Outer Tank-20/50ºC	Inner Tank -40ºC, Outer Tank50ºC
Overall Dimension (mm)	3630x2330x2116	5582x2870x2520	15080x3020x3010	11000x2616x2900	13800x3050x3050
Material (Inner tank)	S30408	SA240M 304	S 30408	16MnDR
Material (Outer tank)	Q345R
Head Type	Elliptical
Insulation Type	Vacuum+Perlite

Certifications
Company Profile
Jingmen Hongtu Special Aircraft Manufacturing Co., Ltd (hereinafter called HONGTU, and branded as HONTO) has made prominent contributions to the development of China's aviation industry since established in 1971 as the AVIC Corp II factory No. 322. Now, Hongtu as a key enterprise under China International Marine Containers (Group) Ltd. (CIMC) (ranked the 68th in China's Top 500 businesses), is engaged in R & D of normal temperature storage & transportation equipment, cryogenic storage & transportation equipment, EPC services, chemical equipment and other types of energy chemical storage & transportation equipment. The Company has more than 1,300 employees, including approx. 200 R&D professionals, and has workshop area totaling 130,000 m2. In the 1980s, HONGTU entered into the industry of hazardous chemicals storage & transportation equipment manufacturing based on the advantages of aviation technology, providing customers with individualized and integrated solutions in the fields of hazardous chemicals'storage & transportation, gasification in cities/towns and vehicle/vessel's oil-to-gas transformation. The Company always leads the development of the industry. The production and sales of "HONTO" Brand LPG tanker has been ranking No.1 in China in the past 36 years. The domestic market share of HONGTO reaches over 60% all along. HONGTU has been engaged in the manufacturing of energy and chemical storage & transportation equipment for over 3 decades and is also China's only LPG full-industrial chain equipment manufacturer and solution provider. The Company has ASME "U" and "U2" Stamps Qualification and all Chinese National Permits for design, manufacture and installation of various pressure vessels, spherical tanks, urban gas pipeline projects and marine fuel tanks, and has developed and drafted a number of national standards on pressurized and non-pressurized products of China. The Company provides global customers and partners with safe, efficient and value-added energy and chemical storage & transportation equipment under the concept of providing service in the full product life cycle and creating values for customers, through the three-in-one marketing mode of brand communication, product sale and lifelong service, and is committed to become a leading competitive supplier with in the field of global energy chemical industry. "HONTO" brand LPG storage and transportation equipment has been distributed to more than 40 countries & regions in North America, South America, Southeast Asia, South Asia, Middle East and Africa, etc.
Our Advantages 01 Powerful R&D Ability
HONGTU has been rated as "Hubei Province Technical Center for Pressure Vessels", "Hubei Province Workstation for High-skilled Talents", etc. We have acquired more than 120 patents through the "Producing, Learning and Researching" practice, and frequent technical communications and cooperation with China Standardization Committee on Boilers and Pressure Vessels, China Classification Society, Tsinghua University, Shanghai Jiao Tong University, Zhejiang University, Fuzhou
University, Huazhong University of Science and Technology, YPDI(Nanjing Yangzi Petrochemical Design Engineering Co., Ltd.), Burg Industries B.V., TGE GAS INVESTMENT SA, Department of Energy Business(DOEB in Thailand), Australia MLI company, and other Government agencies at home and abroad, Universities, famous companies in the industry.
02 Top Expert Team
We have more than 330 professional technical staff, 30 senior engineers(including 5 Researcher-level Engineers), about 500 staff who are multi-skilled technical talents and senior technicians, 9 outsourced experts and professors employed in the industry. We are the Editorial Board of the China National Boards of Supervision Regulation on Safety Technology for Transportable Pressure Vessel; We have participated in the compiling of many other standards, such as Road Tanker for Liquefied Gas, Road Tankers for Cryogenic Liquid, Supervision Regulation on Safety Technology for Transportable Pressure Vessel, Road Tanker for Dangerous Liquid Goods Transportation.
03 Strong Production Capacity
HONGTU has been facilitated with more than 2000 sets of equipment, such as plasma cutting machines, US Lincoln welding machines, welding robots, all kinds of large and medium-sized rolling machines, beveling machines, cranes, heat treatment furnace, NDT equipment, 2000 tons of spherical shell press machines and other large heavy equipment. Among them, there are more than 200 sets of testing equipment.
04 Comprehensive Industrial Chain Solution
HONGTU has been engaged in manufacturing of energy and chemical storage & transportation equipment for over 3 decades. Focusing on the production, storage and transportation, application and intensive processing of upstream, midstream and downstream liquefied petroleum gas industry chain, HONGTU forms complete industrial equipment cluster from oil refining device, spherical tank, large scale flat bottomed vertical tank to mounded type tank, from lightweight and large-volume liquefied gas tanker to core equipment manufacturing of various types of end applications and engineering application, is China's only LPG whole industry chain equipment manufacturer and solution provider.
05 Scientific and Reorous QA&QC System
HONGTU has a sound quality assurance system and perfect quality control procedures. Products from the entry of raw materials to the delivery to the user must pass 111 quality control points, 243 quality control procedures and 47 procedure document reviews. Annual radiographic inspection films of the products exceed more than 400,000 copies and each product quality files keep for more than 20 years, so each weld quality can be tracked. HONGTU continues to carry out the LEAN Management, introduce the ONE module, passes the HSE system(quality, occupational health and safety, environment) certification and realizes the comprehensive management of information, quality and workers in the manufacturing site.
06 Professional International Services and Marketing Network
HONGTU has its own international business network and a sound international business organization structure, including 50 plus professionals engaged in technical service and overseas marketing, dedicated to providing overseas customers with technical consultation, business negotiation, product service, personnel training and a full range of integrated solutions services, and has built a three-level service assurance system comprised of salesperson, engineer and professional service personnel.
