ISO 9001 Approved Bed Type Blin Plywood Case/Steel Pallet Machine CNC Drilling Center
| US$30,000.00-32,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
BL-S800
Type
Tool Milling Machine
Object
Tool
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
CNC
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Table Size
900*500mm
Table Max. Loading
300kg
T Slot(No./Width/Gap)
5/18/90mm
Max. Drilling Dia.(U Driller)
20mm
Max. Tapping Dia.(Standard/Optional)
M18
X/Y/Z Axes Travel
800/520/450mm
Spindle Type
Bt30
Spindle Motor
5.5/7.5kw
Spindle Speed
12000rpm
Distance From Spindle Nose to Table Face
120-570mm
Positioning Precision
0.003mm
Repeatable Positioning Precision
0.003mm
Tool Magazine
Slant Disc Type
Tool Changing Time
1.8s
Transport Package
Plywood Case/Steel Pallet
Specification
1500*1800*2100
Trademark
BLIN
Origin
China
HS Code
8457101000
Production Capacity
480 Unit/Year
Packaging & Delivery
Package Size
250.00cm * 320.00cm * 250.00cm
Package Gross Weight
250.000kg
Product Description
CNC vertical drilling tapping milling machining center- Adopt HT300 class cast iron
- 3 axes adopt wide linear guideway, high rigidity
- 3 axes adopt big pre-stretched ball screw

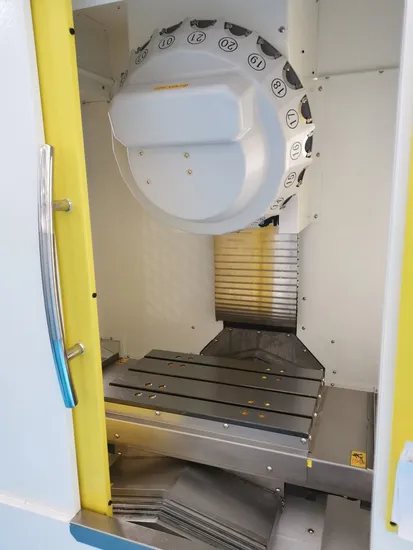

- Adopt Slant Disc type 21T/16T tool magazine,fast tool changing
Details:
| Item | Specification | Unit | BL-S600 | BL-S800 |
| Capacity | Max. drilling dia.(U driller) | mm | Φ18 | Φ20 |
| Max. tapping dia. | mm | M16 | M18 | |
| Worktable | Table size(L×W) | mm | 700×420 | 900×500 |
| T slot(NO./width/distance) | mm | 3/14/125 | 5/18/90 | |
| Table max. loading | kg | 300 | 500 | |
| Spindle | Spindle motor power | kw | 5.5/7.5 | |
| Spindle type | / | BT30 | ||
| Spindle max. speed | rpm | Direct-drive 12000(opt.:20000) | ||
| Distance from spindle nose to table face | mm | 135~485 | 120~570 | |
| Feeding axes | X/Y/Z axes travel | mm | 600/400/350 | 800/520/450 |
| Cutting feed speed | mm/min | 5~15000 | ||
| X/Y/Z axes rapid moving speed | m/min | 48/48/48 | 48/48/36 | |
| Positioning precision | mm | ±0.003/300 | ||
| Repeatable positioning precision | mm | 0.003 | ||
| Tool magazine | Tool magazine type | / | Slant disc type | |
| Tools qty | / | 21 | 16 | |
| Tool changing time(tool to tool) | s | 1.6 | 1.8 | |
| Max. tool dia.(full/(no adjacent tool) | mm | Φ50/Φ120 | Φ60/Φ120 | |
| Others | Overall dimension(L×W×H) | mm | 1900×2100×2200 | 2400×1700×2100 |
| Weight | kg | 3000 | 4500 | |
Main parts list:
| Item | Brand |
| Ball screw | TAIWAN-HIWIN/PMI |
| Linear guideway | TAIWAN-HIWIN/PMI |
| Ball screw bearing | SWEDEN SKF/GERMAN FAG |
| Spindle | TAIWAN |
| Tool magazine | TAIWAN-SANJET |
| Main electric parts | FRANCE-SCHNEIDER |
| Pneumatic parts | TAIWAN-AIRTAC |
| Lubrication pump | JAPAN-HERG |
Standard configuration: - SYNTEC 22MA CNC controller
Optional configuration: - FANUC 0I MF CNC controller
- 4th axes
