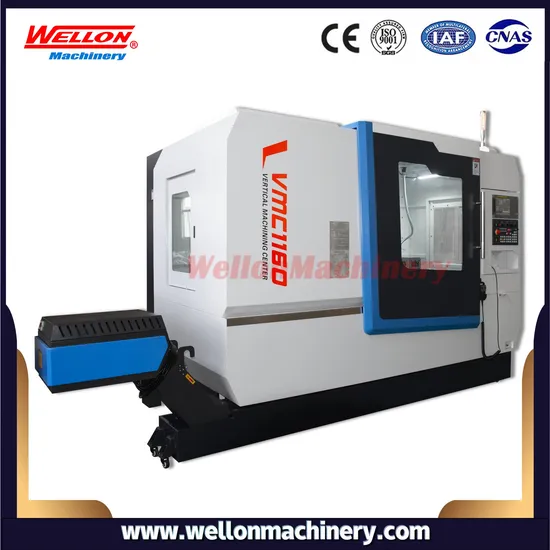

Vmc High Speed CNC Milling Vertical Machining Center Vmc1160

Product Description

Product Description
Detailed Photos



Product Parameters

Main configuration & accessories:
1. Resin sand casting;
2. X, Y, Z rails adopt stainless steel telescopic cover;
3. Taiwan production pneumatic cylinder;
4. Taiwan ATC, carousel type and disc type are available as option;
5. Headstock balancing system have heavy casting or nitrogen balance system as option;
6. Full enclosed cover;
7. Rigid tapping;
8. Work lamp;
9. USB and Internet interface;
10. Manual pulse generator (MPG);
11. Centralized automatic lubrication system.
12. Cooling system.
13. Heat exchanger for electrical cabinet ;
14. Leveling blocks & bolts;
15. Toolbox and tools;
Technical Parameter:

Model	VMC1160
Table size	1200*600 mm
X axis travel	1100mm
Y axis travel	600mm
Z axis travel	600mm
Max. table load	800kg
T slot qty-width*distance	5-18*100mm
Max.spindle speed	8000 rpm
Spindle nose to table surface	120-720mm
Spindle axis to column surface	670 mm
Max. diameter of drilling	40mm
Max. Threading	M20
Spindle taper	BT40
Main motor power	11kw
Feeding rate	0-10000mm/min
X/Y/Z axis motor power	3/3/4.5 kw
X/Y/Z axis rapid feed	36/36/32 m/min
Tool changer type	Disc type
Tools capacity	24
Tool change time	1.8 sec
Max. tool length	150mm
Max. Tool diameter	Φ100
Max.tool(kinfe) weight	3kg
Positioning accuracy X/Z	±0.008mm
Repeat positioning accuracy X/Z	±0.005mm
Net Weight	7500kg
Overall Dimension	2980*2450*2800mm

Standard accessories:
Fanuc 0i-MF(5) control system
Taiwan Spindle: 8000rpm
X/Y/Z axes: Fanuc servo drive motor
Main motor: Fanuc spindle motor
24 tools Disc type magazine
USB for information transfer
Rough cutting of thread
Full closed cover
Automatic lubrication
Coolant system
Work lamp
Safety door
Tri-color indication lamp,
Air gun
Water gun
Air conditioner in cabinet
3-Axis linear guideway from Taiwan Hiwin
Ball leadscrew from taiwan Hiwin
Company information

Packaging & Shipping

FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,
Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.
