2000*600mm 620ah High Percision Automatic Processing High Speed up and Down Hydraumatic Auto Feed Surface Grinder Grinding Machine
| US$36,000.00-45,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
620AHD
Type
Surface Grinding Machine
Processing Object
Planar Mill
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Condition
New
Table Dimensions
2000*600 mm
Table Speed
7-25 M/Min
Occupied Area
6200X2700 mm
Gross Weight
10000 Kgs
Transport Package
Customizable
Specification
Customizable
Trademark
TRANSTAR
Origin
China
Product Description
Product DescriptionOur High Precision Handwheel Feed Surface Grinder is meticulously designed with state-of-the-art components to deliver unparalleled performance. Key features include a robust frame, high-accuracy handwheel feed system, and a user-friendly interface for effortless operation.

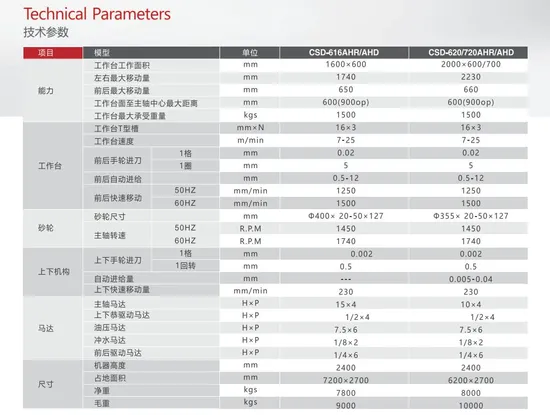

Product Parameters
| Mountings | Specifications | Unit | CSD-616AHR/AHD | CSD-620/720AHR/AHD | ||
| Ability | Table Dimensions | mm | 1600×600 | 2000×600/700 | ||
| Maximum forward and backward movement | mm | 1740 | 2230 | |||
| Maximum left-right movement | mm | 650 | 660 | |||
| Distance between spindle center and work surface | mm | 600(900op) | 600(900op) | |||
| Maximum bearing weight of working table | kgs | 1500 | 1500 | |||
| Work Table | Table T-slots | mm×N | 16×3 | 16×3 | ||
| Table speed | m/min | 7-25 | 7-25 | |||
| Front and rear handwheel feed | a check | mm | 0.02 | 0.02 | ||
| a round | mm | 5 | 5 | |||
| Auto-supplying from front to back | mm | 0.5-12 | 0.5-12 | |||
| High speed moving from frong toback | 50HZ | m/min | 1250 | 1250 | ||
| 60HZ | m/min | 1500 | 1500 | |||
| Grinding Wheel | Grinding Wheel Size | mm | Φ400×20-50×127 | Φ400×20-50×127 | ||
| Speed of mainshaft | 50HZ | R.P.M | 1450 | 1450 | ||
| 60HZ | R.P.M | 1740 | 1740 | |||
| Upper and lower mechanism | Up& down handwheel feed | a check | mm | 0.002 | 0.002 | |
| a turing round | mm | 0.5 | 0.5 | |||
| Auto-supplying volumn | mm | --- | 0.005-0.04 | |||
| High-speed mouing dimension from up to down | mm/min | 230 | 230 | |||
| Motor | Spindle motor | H×P | 15×4 | 10×4 | ||
| Drive motor up and down | H×P | 1/2×4 | 1/2×4 | |||
| Drive motor up and down | H×P | 7.5×6 | 7.5×6 | |||
| Vacuum motor | H×P | 1/8×2 | 1/8×2 | |||
| Back and front driving motor | H×P | 1/4×6 | 1/4×6 | |||
| Machine Size | Mechanical height | mm | 2400 | 2400 | ||
| Occupied area | mm | 7200×2700 | 6200×2700 | |||
| Net weight | kgs | 7800 | 8000 | |||
| Gross Weight | kgs | 9000 | 10000 | |||
Products Details: The High Precision Handwheel Feed Surface Grinder from Dongguan TranStar Machinery Co., Ltd. boasts a range of sophisticated features, such as an ultra-precise handwheel mechanism, durable construction, and advanced grinding capabilities. Ideal for various industrial applications, this machine guarantees superior surface finishes and enhanced productivity.
