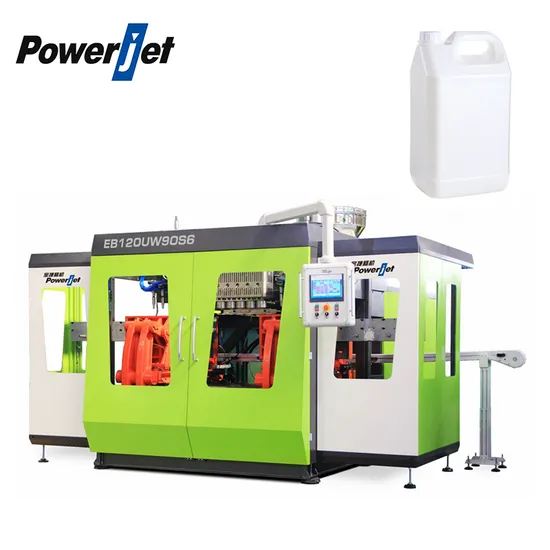

Fully Automatic HDPE 5liter Plastic Bottle Extrusion Blow Molding Machine
| US$23,000.00-52,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
EB70U
Warranty
1 Year
Plastic Proceed
PP, HDPE, PE, ABS/PP, PE/PP, HDPE/PP
Core Components
PLC, Engine, Bearing, Gearbox, Motor, Pressure Ves
Applicable Industries
Energy & Mining, Hotels, Home Use, Machinery Repai
Showroom Location
Egypt, Turkey, United Kingdom, United States, Viet
Transport Package
Fixed in The Container with Wire Rope, Suitable Fo
Trademark
Powerjet
Origin
China
HS Code
8477401000
Production Capacity
5000 Sets Per Year
Product Description
Product DescriptionEB70U High-speed Double Station Extrusion Blow Molding Machine
Powerjet Single Station Extrusion Blow Molding Machine EB70U is specialized for manufacturing bottles and containers with Max 7L.Max Bottle Capacity - 7(L)Clamping Force - 85/110(KN)Extrusion Weight(HDPE) - 80~120(kg/hr)Applications - Wide Range Of Bottles For Daily necessities, toiletries, beverages, water tanks, laundry detergent/shower gel/motoroil bottles, etc
Detailed Photos
FEATURES:
1:Toggle balance clamping structure, with platen opening & clamping and mold platen movement by linear guide, to achieve low friction and high speed.
2 Based on the Finite Element Analysis design, and platen, toggle, and platen frame are made in high-intensity nodular cast iron.
3:High-speed mold clamping oil cylinder with differential speed function, and high-speed mold moving cylinder with special anti-shock cushion valve structure.
4:Specially designed to screw with a high L/D ratio ensures good plasticizing and stable extrusion; high precision and no part line die head guarantees customers' top quality requirement.
5:Multi-screw & multi-die heads can be adopted to improve the quality of the product and lower the cost of material.
6:Multiple-way PID-controlled temperature heating is precise and stable.
Product Parameters
| MODEL | UNIT | EB70U75S EB70UW75S | EB70U85S EB70UW85S | EB70U75S-plus EB70UW75S-plus | EB70U85S-plus EB70UW85S-plus |
| Max.Product | L | 7 | 7 | 10 | 10 |
| Clamping Force | kN | 85/110 | 85/110 | 160 | 160 |
| Max.Mold Size(WxH) | mm | 480x450 | 480x460 | ||
| mm | 580x440 | 580x420 | |||
| Screw Diameter | mm | Φ75 | Φ85 | Φ75 | Φ85 |
| Screw L/D Ratio | L/D | 24 | 24 | 24 | 24 |
| Screw Rotary Speed | RPM | 65 | 60 | 65 | 60 |
| Extrusion Weight(HDPE) | kg | 80 | 120 | 80 | 120 |
| Extrusion Motor Power | kW | 22 | 30 | 22 | 30 |
| Pump Motor Power | kW | 11 | 11 | 11 | 11 |
| Heating Capacity | kW | 19 | 21 | 19 | 21 |
| Operation Pressure | Mpa | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 |
| Air Consumption | m³/min | 3.0 | 3.0 | 3.0 | 3.0 |
| Cooling Water Consumption(25ºC) | L/min | 100 | 100 | 100 | 100 |
| Machine Dimension (LxWxH) | mm | 4220x3170x2600 | 4880x3490x2700 | ||
| Machine Weight | kg | 6000 | 6200 | 6100 | 6300 |
