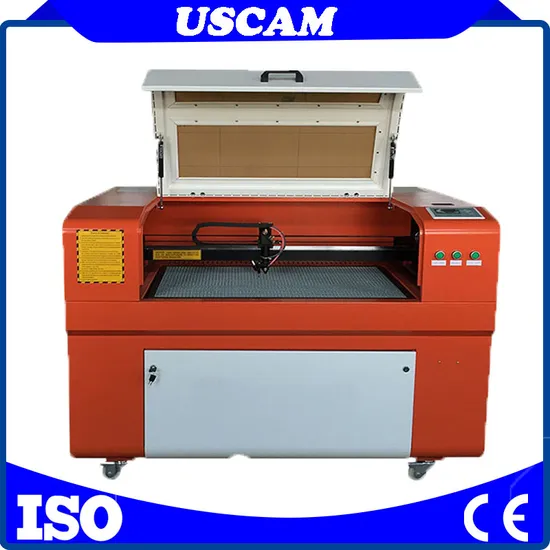

CO2 CNC Laser Cutting Engraving Machine for Wood Acrylic Engraver

Product Description

This co2 laser engraving machine can use for cutting metal&nonmetal meterial.
Metal materail: This laser cutting machine can cut carbon steel, stainless steel. According to different metal
materials and thickness, we will adjust the pluse width, current, frequency, cutting speed.
Non-metallic materails : This laser cutting machine also can cut wood, bamboo, jade articale, stone(only
can engraving), organic glass, crystal(only can engraving), rubber, plastic, etc.
Parameter of co2 laser machine

Name:	co2 laser cutting machine 6090
Processing area	900mm*600mm (3feet*2feet)
Laser power	80/100/130/150/180W
Laser type:	Sealed Co2 laser tube
Resetting positioning accuracy:	±0.01mm
Compatible Software:	Laser cut 5.3, CorelDraw, AutoCAD, Photoshop
Whole machine size:	1420mm*1020mm*1150mm
Engraving speed	1-6000mm/min
Cutting speed	1-1000mm/min
Cutting thickness	0-20 mm acrylic (others determined by materials)
Resolution ratio	≤0.0125mm
Position system:	Red dot
Interface:	USB
Minimum shaping character	letter 0.8mm, Chinese 2mm
Support graphic format	DST, PLT, BMP, DXF
Gross power	1000W
Driving mode:	DC0.8A 24V stepper motor
Cooling mode:	Circulation water cooling
Working voltage:	AC 110 - 220V±10%, 50 - 60Hz or depend on customer
Operating temperature	0-45C
Operating humidity:	5-95%
Driving system	stepper
Option:	Up and down table, rotary attachment
Packing:	wooden box
Guarantee time:	2 years, laser tube 10 months
Option:	Rotary attachment for column materials
Operation:	Video to tell customer how to operate the machine
Net weight:	190KGS before package, 240KGS after package

Features of co2 laser cutting engraving machine
1.Taiwan HIWIN square linear guide rail installed on X&Y axis, make sure the works stably and precisely.
2.The professional manufacturers adoptes square tube framework in China, with more than 40% higher
fuselage strength than iron sheet stucture. This design prevents the machine from quivering, resonance
and distortion during long term work.
3. New-style high-efficiency laser tube is adopted. Laser beam is more stable than the traditional type.
4.Red dot position system is added in standard configuration,contributing to simple and precise working position.
5.Humanized and modern appearance showing RECI's consistent humanity idear, making operation
6.Advanced DSP control system,with professional motion control chip, has the function of consecutively
high-speed curve cutting and the shortest path selection, which largely improves your working efficiency.
7.USB offline control system makes the operation more convenient and faster.
8.Automatic up-down table can be chosen for thick materials and high objects

Application and Sample of Co2 Laser Machine
This type machine is a kind of laser engraving machine system equipped with Co2 laser tube,it is used to
engrave on acrylic, PVC, rubber sheet, plastic, crystal, glass, wood, bamboo, oxhorn, figuline,marble, leather,
cloth, double-color board, etc. nonmetal materials .

Max Cutting Thickness of Co2 Laser with Different Power

Material/Max cut thickness(mm)	40w	60w	80w	100w	130w	150w
Acrylic	3	8	12	15	20	30
MDF	2	4	7	9	13	20
Wood	3	5	8	10	15	20
PVC	2	4	7	9	13	18
Color-board	2	3	6	8	12	18
Rubber	2	4	7	8	9	10
Leather	1	4	8	10	13	15
Cottom	3	6	12	15	20	25
Paper	3	4	8(30 pcs)	10	12	15
Plastic	1	4	7	10	10	10
ABS bord	3	8	12	15	20	25
Paper board	2	5	6	8	12	18
Metal						2mm(with Oxygen)

Spare Parts Supports
We provide all replacement parts for all machines we sold, if you have a parts that break beyond warranty
period, you could order it directly from us at reasonable prices.
We would post the new parts with step by step instructions in PDF format on how to replace the parts to you.
After Service 1.1.5years quality guaranty, the machine with main parts(excluding the consumables) shall be
changed free of charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery
7.Our staff can be sent to your company to install or adjust if necessary.
Packing and shipping
1. Standard plywood case, its compressive strength and bearing quality is better.
2. the board area is bit, the soil structure is good, it is better in leakproofness and waterproof.
3. when importing, the plywood case is with fumigation-free, the procedure is simple.
4. Delivery Detail: within 7-15 days after received your payment
About Payment
We accept T/T , you can pay 30% in advance, 70% before delivery.
The machine will be produced after received your deposit.after the machine is ready, we will show you the
machine photos and the testing video.
After you agree, please finish the balance.Finally.we arrange the delivery.
FAQ
Q: What's the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is
covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by
thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have
full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don't worry,
you will receive the parcel in good condition.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will
send detail training video, user's manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or
someone else. We will response within 24 hours as quick as we can to solve it for you.
