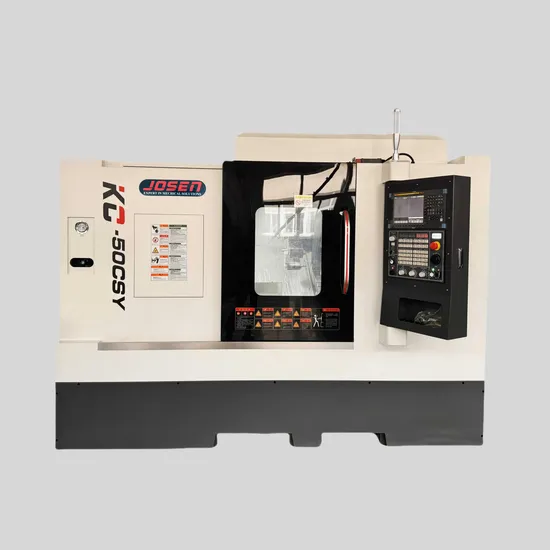

High-Dynamic Response Multi-Functional High-Stiffness High-Performance Dual-Spindle with Y-Axis CNC Lathe Milling Center

Product Description

Product Description

1. Equipped with high precision spindle: Eliminate spindle vibration effectively, The runout accuracy of the spindle positioning surface around than 2 μm. which provides the best workpiece stiffness, concentricity, surface roughness and roundness due to the workpiece clamping closer to the spindle bearing. It can also significantly prolong the service life of the tool. The front end of the spindle is a labyrinth sealing structure with positive air pressure protection to prevent coolant and impurities from entering the spindle. Twin spindle with Y axis driven turret can be from simple to complex one hit machining from raw material to finished parts .less setup time ,complete in one setup .during machining process can be turning ,milling, tapping, drilling, boring , hobbing ,slotting operation . 2. The main castings are made of high-grade cast iron by resin sand casting. Adopting advanced finite element analysis technology, the design structure is reasonable and the layout is optimized. And by aging treatment, it can ensure the long-term machining stability of the performance . 3. X and Z axis servo motors are directly connected with precision ball screws through flexible couplings with high precision, and the two ends of the screws are fixed, The reinforced bearing support seat and the ball screw are pre-stretched to ensure the rigidity of the transmission and the dimensional stability of the cooling and heating machine. 4. automatic centralized lubrication system to lubricate the screw, guideway and other moving parts through the set oiling interval and oiling duration to ensure the accuracy and easy service of the machine . 5. The spindle mounting with Magnetic ring encoder, which makes the positioning and C-axis indexing more accurate. 6. The 12-station BMT55 driven turret with bidirectional positioning index, short tool change time and high positioning accuracy, which is conducive to improving machining accuracy. The Y-axis 100 MM travel stroke (± 50) off centerline, capable of eccentric milling, drilling and tapping. High torque power turret and servo-driven C-axis are standardly equipped with 4-axis machining ability. 7. The feed system is driven by servo motor with roller screw drive for high precision and wear resistance. 8. The machine is supported by P-class large-size precision heavy-duty roller guideway with strong support rigidity and high guiding accuracy. The machine is fully protected by the outer cover to prevent the cutting fluid from splashing.

Product Parameters

NO.	Description	Unit	Details
Machine performance
1	Maximum swivel diameter of the bed	mm	530
2	Maximum turning diameter	mm	330
3	Maximum cutting length	mm	450
4	Maximum distance between two chucks	mm	450(with jaws) 530(without jaws)
5	Standard Chuck Size	Inch	8/6
CNC system
1	Fanuc system		OITF PLUS
Spindle
1	Spindle type		Motor spindle
2	Spindle specifications/sub-spindle specifications		A2-6(motor spindle)/A2-5 (motor spindle)
3	Spindle/sub-spindle through-hole diameter	mm	66/56
4	Standard bar diameter	mm	52/42
5	Front bearing hole	mm	100
6	Standard spindle speed	rpm	4500/5500
7	Spindle motor power	Kw	15/22
8	Sub-axis motor power	Kw	11/15
Turret
1	Power servo turret	mm	BMT55
2	Positions of turret	NO.	12
3	Diameter of cutter plate	mm	330
4	Maximum Boring Bar Diameter	mm	40
5	Tool size	mm	25 x 25
6	Power tool holder power	mm	4.5
7	Rotating Max speed of live tool	rpm	6000
X, Z axis accuracy
1	X, Z axis positioning accuracy	mm	± 0.005
2	X, Z axis Repeat Positioning Accuracy	mm	± 0.003
X-axis parameters
1	X axis travel	mm	210
3	X-axis rapid traverse speed	m/min	24
4	X axis Ball Screw Diameter and Pitch	mm	40 x 10(C3 class)
5	X axis guideway type and dimensions	mm	35 (Roller guideway class P4)
6	X-axis motor power	Kw	3
Z-axis parameters
1	Z1 axis travel	mm	550
2	Z2 (secondary axis) maximum travel distance	mm	460
3	Z-axis rapid traverse speed	m/min	24
4	Z axis ball screw diameter and pitch	mm	40 x 10(C3lever)
5	Z /Z2 axis guideway type and dimensions	mm	35/45 (Roller guideway class P4)
6	Z-axis motor power	Kw	3
Y-axis parameters
1	Y axis travel	mm	±50
2	Y-axis ball screw diameter and pitch	mm	32 x 10(C3 class)
3	Y-axis guideway type and size	mm	harden Box
4	Y-axis motor power	Kw	2.3
Other
1	Coolant tank capacity		200
2	Power Chassis Capacity		35
3	Machine size	mm	3000 X 1900
4	Machine weight	kg	5000

Detailed Photos
Company Profile
Certifications
Our Advantages
Packaging & Shipping
FAQ
1. What is your product range?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.
2:What kind of controllers do you use on machines?
A :Siemens, GSK, Fanuc, Syntec etc. You can choose as your request.
3. What is your trade terms?
A : EXW, FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me model or technical parameter you need, tell us what you want to do by using CNC machining center, we can provide machine with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5: What's the payment terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
6. What about the after sale service?
We provide one year warranty, if any parts broken, we will send you a new one for free.

7.Before sending me an inquiry on our machine, it is better for you to provide me the following information?
1)Your metal workpiece size. Because in our factory, we have different models according to working area.
2)Your workpiece materials.
Aluminum/Steel/Iron/Titanium Alloy?
3) You also can send us the drawing of your workpiece, so that we can have a moe careful check and give your more accurate suggestions.
