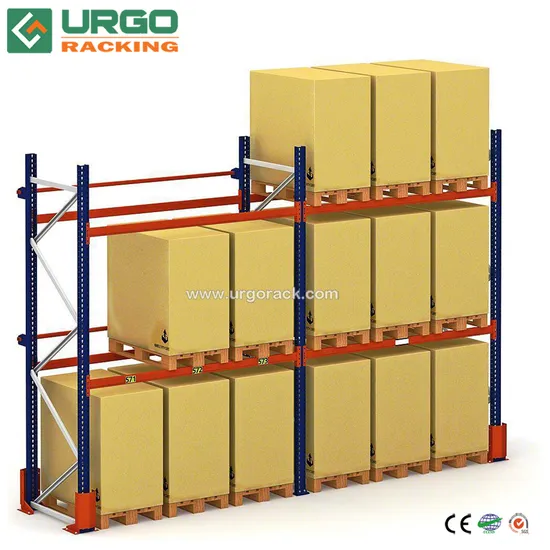

Heavy Duty Adjustable Storage Pallet Rack

Product Description

The structure of URGO heavy duty pallet rack includes uprights and beams, According to the customer's actual pallet load capacity and warehouse size, select the column and beam specifications, as well as increasing racking accessories.
Warehouse Rack Use and customized Width drive in pallet racking

Features	1. 90% picking efficiency, and appropriate for picking heavy goods by pallet. 2. Surface finishing with araldite static powder coating. 3. High Strength and durability, easy for complete installation. 4. Pallets can be located, accessed and moved individually. 5. Rapid handling of almost all types of palletised goods. 6. Bottom level of pallets can be stored on the floor, lowering structure costs. 7. Strength and rigidity prevents compression damage to goods. 8. Infinitely adjustable and offering a wide range of options and components to accommodate specialized needs. 9. Maximizes space use in any warehouse configuration while retaining optimum product accessibility.
Beam & Frame	1. Frame depth normally from 800-1000mm, height is limited by handling equipment of approximate 11mm. 2. Beam length from 1000-3300mm depends on requirement or design. 3. Operation aisle is from 2200-3800mm depends on operating truck
Main Parts Specs	1. Upright section: 80*60*2.0, 90*70*2.0, 100*70*2.0, 120*95*2.0-2.5mm, etc. 2. Box beams section: 80*50*1.5, 100*50*1.5, 110*50*1.5, 120*50*1.5-2.0, 140*50*1.5-2.0, 160*50*1.5-2.0, 180*50*2.0mm, etc., 3. Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components.
Load Capacity & Dimension	1. Loading capacity: 500-4,000 kgs UDL/beam level. 2. Height: 1,000-11,000mm 3. Depth: 400-1,500mm 4. Length: 1,500-3,300mm 5. Specail sizes also avaiable to specific storage needs.
Delivery Time	Within 25 days for ordinary order quantity. Big production capacity allows us in a position to make quick delivery.

Upright:
1. High load capacity up to 21000kg.
2. Frames include all the elements needed for assembly: bracing, feet and nuts & bolts.
3. Blue epoxy coated (RAL 5012/5015/5017).
4. Standard heights : From 2 to 11.5m.
5. Adjusted by 50/75mm pitch.
Column Profiles:

Column Specification (mm)	Thickness (mm)	Upright Loading (kg)
W80 x D60	1.8-2.0	4000-6000 KG
W85 x D67	1.8-2.3	7500-12500 KG
W90 x D60	1.8-2.5	8000-10000 KG
W90 x D70	1.8-2.5	10000-12000 KG
W100 x D70	2.0-2.5	11000-14000 KG
W120 x D95	2.3-3.0	17000-21000KG

Beam:
1. High load capacity up to 5000kg.
2 .Manufactured with the highest quality steel Q235.
3. Orange epoxy coated (RAL 2004).
4. Lengths available: 1500/2000/2300/2700/3000/3300/3600/3900mm
5. Boltless connection with 3/ 4/ 5 connector hooks.
6. A security pins per beam to prevent accidental dislodgement.
7. Powder coating finish
Beam Profiles:

Loading (kg) Specification (mm)	The Length of Box Beam (mm)
	1500	2000	2300	2500	2700	3000	3300	3600	3900
80 x 50 x 1.5	3000	1740	1340	1160	1010
90 x 50 x 1.5	4080	2350	1800	1645	1345	1010	850
100 x 50 1.5		2960	2260	1930	1680	1380	1040
110 x 50 x 1.5			2640	2250	1950	1600	1340	1140
120 x 50 x 1.5			3200	2730	2358	1930	1518	1379
140 x 50 x 1.5				3868	3330	2720	2370	2020
160 x 50 x 1.5					4220	3690	2970	2600	2340
160 x 50 x 1.8						4400	3420	3020	2590
160 x 50 x 2.0						4130	4170	3320	2840

Loading (kg) Specification (mm)	The Length of P Box Beam (mm)
	1500	2000	2300	2500	2700	3000	3300	3600	3900
100 x 50 x 1.5	4470	2512	1900	1610	1380	1120	920
110 x 50 x 1.5	5484	3085	2332	1974	1693	1371	1133	952
120 x 50 x 1.5		3910	2957	2503	2146	1738	1436	1207	1030
140 x 50 x 1.5		5722	4330	3662	3140	2543	2102	1766	1505

Main Spare Parts Profiles:

Optional Accessries Urgo heavy weight pallet rack conventional accessories include: cross beam, back brake beam, back mesh, side mesh, steel plate, grid plate, wood plate, column protector, guard bar etc.
