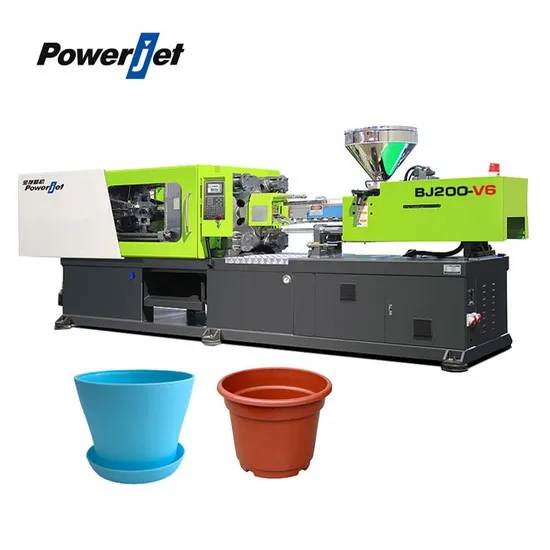

High-Performance Injection Molding Machine for Flower Pot Production

High-Performance Injection Molding Machine for Flower Pot Production

US$30,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
BJ200
Plastic Type
Thermoplastic
Clamping Way
Hydraulic
Certification
CE, ISO9001:2008
Opening Stroke
490mm
Injection Weight (G)
462 G
Screw Diameter (mm)
52 mm
Injection Rate (G/S)
153 G/S
Open Stroke(mm)
490 mm
Power (Kw)
16 Kw
Ejector Stroke(mm)
140 mm
Ejector Force(Kn)
65 Kn
Trademark
Powerjet
Origin
Guangdong, China

Product Description


STANDARD INJECTION MOLDING MACHINE
With The New Driving System For Our Standard Injection Molding Machine, BJ Series Saving More Energy Than Before. The Motor Will Stop At The Stage Of Cooling For Saving Energy And Also Can Provide Higher Injection Accuracy And Speed.

Clamping Force - 50~1380(Ton)
Driving System - Hydraulic
Motor Type - Servo Or Variable
Applications - Food And Beverage Packaging, Necessities Products, Home Appliances, Electrical Components, Automotive Parts

FEATURES:
Variable Pump System:
Perfect combination between computer and high efficient proportional plunger variable pump saves electricity by 25%-50%.

Clamping System:
Reliable and durable, Effective mold protection High repeatability of mold opening and closing.

Injection System:
Stable & precise, easy for adjustment & operation by efficient separating screw and high mixing screw increase the range of material used.

Control System:
User-friendly control system, powerful, fast, precise control, easy to operate, the program can meet various process needs.

Lubrication System:
Major friction parts are equipped with lubrication points. Electric lubricant pump controlled by computer sends automatically lubricating oil (grease) to lubrication points.





DESCRIPTION UNIT BJ200
CLAMPING UNIT Clamping force KN 2000
Opening stroke mm 490
Max.datlight mm 1040
Platen size mm 775*775
Space between bars mm 510*510
Max.mold height mm 550
Min.mold height mm 230
Ejector stroke mm 140
Ejector force KN 65
INJECTION UNIT Screw diameter mm 52
Screw L/D Ratio L/D 19.9
Injection Pressure MPa 180
Shot volume cm3 520
Screw stroke mm 462
POWER UNIT Hydraulic system Pressure MPa 17.5
Pump motor power KW 18.5/21.8
Heater power kW 11.5

Please feel free to consult us whenever you want to know more information. Thanks~

About our company:
Powerjet Plastic Machinery Co., LTD Focus On Manufacturing And Development Of Injection Molding Machine And Blow Molding Machine Over 24 Years. Powerjet And Installed Over 18,500 Molding Machines Worldwide And Renowned In "Energy-Saving, High Performance, High Speed, Precision".Factory in 50,000 square meters, with more than 350 staff members, over 20 branch offices across the country with advanced experience and lean production.
And we also focus on the development of special injection molding machines according to the customer's need, like machines for PET preform, PVC/PPR fitting, thin-walled product, silicone, batelite, and multi-material products, and also provide the turnkey projects for the customers.

Our Services & Strength Established distributors in multiple countries like Thailand, Malaysia, Indonesia, Vietnam, Uzbekistan, USA, Mexico, Brazil, and Pakistan. With a global sales network, our local offices and agents can provide more convenient and sincere services. 1:Agent In Worldwide
Setting Up Agent In More Than 20 Countries For Sales And Support
2:Lifetime Support
24 Hours Online Service And Overseas Installation & Maintenance
3:Spare Parts
We Supplying Screw, Motor, Control Panel And Plastic Mold For Machines
4:Operation Training
Support Training To Engineer For Setup, Processing & Troubleshooting
5:Plastic Mold Testing
Provide Testing Mold Service Before Customer Receiving The Machine
