Computerized Rubber Polyretec Standard Wood Box Package Metal Tire Shredder

Computerized Rubber Polyretec Standard Wood Box Package Metal Tire Shredder

US$30,800.00
1-4 Pieces
US$29,800.00
5+ Pieces

Basic Info.

Model NO.
PTDS1000
Material Processed
Tire, Rubber
Plastic Type
Rubber
Screw
Double-Screw
Automation
Automation
Computerized
Computerized
Certification
CE
Motor Power
22+22kw
Rotation Diameter
430mm
Shredding Width
1000mm
Rotation Speed
14rpm
Capacity
1000kg/H
Weight
4520kg
Bearing Brand
NSK
Blades Material
D2 and H13
Motor
Siemens
PLC Control System
Siemens
Transport Package
Standard Wood Box Package
Specification
3315*1885*2200mm
Trademark
POLYRETEC
Origin
Made in China
HS Code
84778000
Production Capacity
100sets/Year

Product Description

Product Description
The PTDS series shredders have been designed fora wide array of applications and industries, suitablefor shredding solid material such as E-waste, metal,wood, plastic, scrap tires, packaging barrel, pallets,etc. Depending on input material and the followingprocess the shredded material can be used directlyor go into the next step of size reduction. It is widely used in industry waste recycling, medical recycling,electronic recycling, pallet recycling, municipal solidwaste recycling, plastic recycling, tire recycling,paper making industry and etc Detailed Photos
Machine photo:

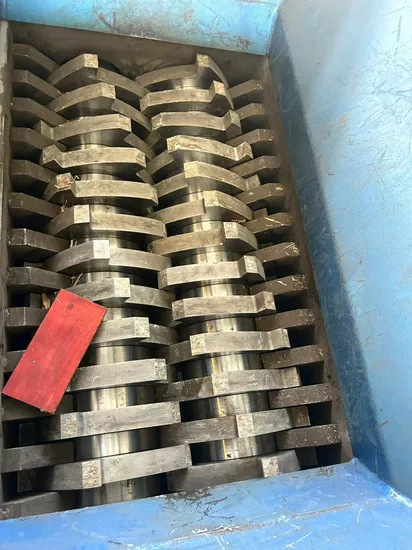

Shredder chamber inside:
Shaft and rotated blades:
3D drawing:
Application material:
Product Parameters
Parameter:
Model PTDS 300 400 600 800A 800B 1000 1200

Motor power(kw)


7.5

7.5

5.5+5.5

7.5+7.5
15+15 15+15 15+15
18.5+18.5 18.5+18.5 18.5+18.5
22+22 22+22 22+22
30+30 30+30 30+30
Rotation diameter(mm) Φ276 Φ276 Φ276 Φ276 Φ430 Φ430 Φ430
Shredding width(mm) 400 500 600 800 800 1000 1200

Rotation speed(Rpm)

13

13

14

14
5.4-12 5.4-12 5.4-12
6-12 6-12 6-12
7.5-12 7.5-12 7.5-12
10-12 10-12 10-12
Center distence(mm) 210 210 210 210 320 320 320

Rotated blades number
15mmthickness 20 / 40 / / / /
20mmthickness 15 20 30 40 40 / /
40mmthickness / 10 15 20 20 25 30
50mmthickness / / / / 16 20 /
75mmthickness / / / / / / /
Blade teeth number Standard rotor 1/2/3/6 1/2/3/6 1/2/3/6 1/2/3/6 1/2/3/6 1/2/3/6 1/2/3/6

Dimension
L 1500 1587 2530 2710 3055 3315 3574
W 1222 1222 1275 1275 1835 1885 1965
H 1850 1850 1850 1850 2200 2200 2200
A 1040 1140 1330 1530 1523 1723 1923
B 1154 1154 1194 1194 1418 1418 1418
C 604 604 643 643 875 875 875
D 518 518 560 560 895 895 895
E 840 940 770 970 1016 1216 1416
Weight 1370 1470 2080 2300 4380 4520 5120

Our Advantages
Slow Speed High Torque Shredding Principle. Low Dust and Low Noise Operation. Rugged Low Maintenance Design. Shock Absorbing Gearbox Mounting Arrangement reduces Stress on Drive Components. Strong Blades manufactured from high quality steels are suitable for shredding tough materials. Two Piece Split Bearing Housing Arrangement enables quick access to bearings and rotor. Advanced Adjustable Sealing System prevents product migration and ensures long bearing service life. Stand Alone Electrical Control Panel with Siemens PLC Control System. Tested, Approved and Certified to the applicable CE safety standards. International famous NSK brand bearing Packaging & Shipping
