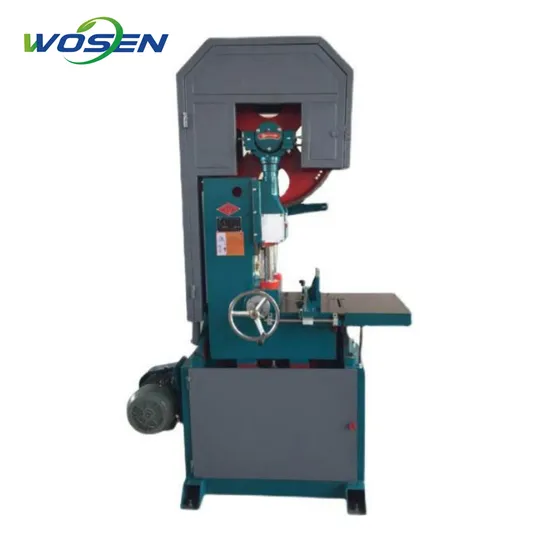

Vertical Wood Band Saw Cutting Machine Timber Sawmill Machinery
| US$2,400.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
MJ328, MJ329, MJ3210
Power Type
Electric
Layout
Vertical
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Normal Precision
Certification
ISO
Customized
Customized
Condition
New
Color
Customized
After-sales Service
Provide
Product Name
Vertical Band Saw with Table
Application
Process Small Log or Planks
Cutting Type
Vertical Cutting
Power
Electric Motor
Max. Process Length
500-5000mm
Process Width
300mm
Process Thickness
10-800mm
Machine Weight
1000kg
Customize
We Can Customize Machine for Client
Transport Package
Plywood Box / PE Film
Specification
1500*1000*2000mm
Trademark
Wosen
Origin
Shandong, China
HS Code
8465910000
Production Capacity
100 Sets/Month
Packaging & Delivery
Package Size
120.00cm * 90.00cm * 210.00cm
Package Gross Weight
950.000kg
Product Description
Product DescriptionVertical Band Sawmill With Table
| Technical Parameter | MJ328 | MJ329 | MJ3210 |
| Saw Wheel Diameter | 800mm | 900mm | 1000mm |
| Saw Wheel Width | 110mm | 120mm | 120mm |
| Saw Wheel Speed | 750r·p·m | 750r·p·m | 750r·p·m |
| Saw Wheel& Clip Model | Manual | Manual | Manual |
| Saw Blade Length | 5700mm | 6400mm | 6800mm |
| Max Sawing Wood Width*Height | 300x600mm | 300x700mm | 300x800mm |
| Main Motor Power | 11kw | 15kw | 22kw |
| Weight | 1000kg | 1300kg | 1600kg |
Related Machines
1.MJ329 Vertical Band Sawmill With Carriage
| Model | MJ329-E3000/E5000 | MJ329-CNC3000/CNC5000 |
| Saw Wheel Diameter | 900mm | 900mm |
| Max Sawing Wood Diameter | 700mm | 700mm |
| Saw Blade Length | 6400*125*1.05mm | 6400*125*1.05mm |
| Saw Clip And Wheel Up and Down | Manual | Manual |
| Main Motor Power | 15 KW | 15 KW |
| Carriage Length | 3000mm/5000mm | 3000mm/5000mm |
| Max Sawing Wood Length | 3000mm/5000mm | 3000mm/5000mm |
| Wood Grasp Clip Quantity | Manual x 3 PCS | Pneumatic x 3 PCS |
| Log Rotation | Not including | Not including |
| Carriage Forward/Backward | Electric | Electric |
| Sawing Thickness Setting | Electric | Touch Screen |
| Weight | 2000kg | 2000kg |
2.MJ3210 Vertical Band Sawmill With Log Carriage
| Specification | MJ3210-E3000/E5000 | MJ3210-CNC3000/E5000 |
| Saw Wheel Diameter | 1000mm | 1000mm |
| Max Sawing Wood Diameter | 800mm | 800mm |
| Saw Blade Length | 6900*125*1.05mm | 6900*125*1.05mm |
| Saw Clip And Wheel Up and Down | Electric | Electric |
| Main Motor Power | 22KW | 22KW |
| Carriage Length | 3000mm/5000mm | 3000mm/5000mm |
| Max Sawing Wood Length | 3000mm/5000mm | 3000mm/5000mm |
| Wood Grasp Clip Quantity | Manual x 3 PCS | Pneumatic x 3 PCS |
| Carriage Forward/Backward | Electric Type | Electric Type |
| Sawing Thickness Setting | Electric Type | Touch Screen |
| Weight | 3000kg | 3000kg |
3.MJ3210A Vertical Band Sawmill With Carriage
| Specification | MJ3210A-E3000/E5000 | MJ3210A-CNC3000/CNC5000 |
| Saw Wheel Diameter | 1000mm | 1000mm |
| Max Sawing Wood Diameter | 1000mm | 1000mm |
| Saw Blade Length | 7300*125*1.25mm | 7300*125*1.25mm |
| Saw Clip And Wheel Up and Down | Electric | Electric |
| Main Motor Power | 30 KW | 30 KW |
| Carriage Length | 3000mm/5000mm | 3000mm/5000mm |
| Max Sawing Wood Length | 3000mm/5000mm | 3000mm/5000mm |
| Wood Grasp Clip Quantity | Manual x 4 PCS | Pneumatic x 4 PCS |
| Carriage Forward/Backward | Electric Type | Electric Type |
| Sawing Thickness Setting | Electric Type | Touch Screen |
| Weight | 5000kg | 6000kg |
4.Square Timber Cutting Multiple Blade Rip Saw
| Model | FM60 | FM80 | FM100 | FM120 | FM150 | FM200 | FM250 | FM300 |
| Process Height | 0-60mm | 30-80mm | 40-100mm | 50-120mm | 60-150mm | 90-200mm | 110-250mm | 150-290mm |
| Process Width | 250/300/400mm | |||||||
| Blade Diameter | 150mm | 180mm | 210mm | 230mm | 255mm | 355mm | 380mm | 455mm |
| Main Motor | 18.5KW*2 | 22KW*2 | 22KW*2 | 22/30KW | 22/30KW | 37KW*2 | 45KW*2 | 55KW*2 |
| Weight | 1190kg | 1260kg | 1420kg | 1560kg | 1620kg | 2550kg | 2580kg | 2700kg |
5.Multiple Blade Sawmill With Laser
| Model | QB30-500 | QB50-500 | QB50-800 | QB70-900 |
| Max. Cutting Height | 30mm | 50mm | 50mm | 70mm |
| Max. Cutting Wood Width | 500mm | 500mm | 800mm | 900mm |
| Blade Diameter | 160mm | 210mm | 210mm | 255mm |
| Feeding Type | Belt | Belt | Belt | Press Roller |
| Main Motor | 7.5KW | 11KW | 15KW | 22KW |
| Overall Size | 1320*850*1350 | 1350*850*1350 | 1350*950*1350 | 2200*1350*1600 |
| Weight | 400kg | 510kg | 730kg | 1580kg |
Company Profile
Our company is China leading manufacturer of woodworking machinery,we are able to offer professional woodworking machinery to customers.
Our products are mainly included wood crusher,band saw, circular sawmill, wood pallet machine, wood pellet machine, wood planer, production line and so on. We have exported our machines to more than 70 countries and regions around the world, such as Southeast Asia, North America, South America, Africa, Europe, Middle East, Australia, Russia and so on.
In order to meet different requirements of customers, we have been constantly developing and improving product technology, quality and after-sale service. And we able to customize machine according to customer requirements, so it has won the favor of many customers.
If you are interested in our machine, please feel free to contact us.
Our Workshop
FAQ
1.What is the machine delivery time ?Delivery time is 10-15 days.2.What is the payment term ?Payment term is 30% TT advance and balance before delivery machine.3.Could the machine customized according to client requirements ?Yes, can customize according to client requirements.4.What terms of trade can provide?We accept EXW, FOB, CIF, Express Delivery.5. What is your company business scope ?Our company main sell woodworking machine, including wood crusher, wood sawmill, wood pallet machine, wood pellet machine, drying kiln, wood planer and so on.
Packaging & Shipping
