Professional Sliding Table Saw for Precision Woodworking Projects

Product Description

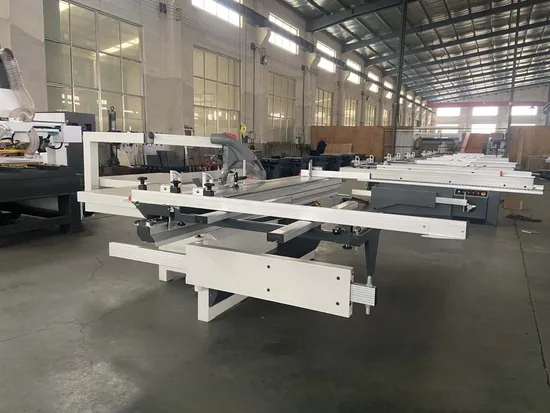

ZD400T Sliding Table Panel Saw


European style dust hood with control arm The saw blade protection allows the operator to visualize the panel while cutting and increases the dust extraction capacity.
Control panel Humanized design and easy to operate control panel. Auto lifting of the main and scoring blades Digital indicator for angles.
Independent electric box is dustproof, which can low rate of power failure. Top quality electric parts, more sensitive and longer lifetime.
European style double layers high strength Aluminum profile sliding table can support the larger panels, with high precision.
Quick and secure pressing the wood board, 0° to 45° angle adjustable.
The cutting assembly of ZD400T was projected to assure a high quality and precise cut. With high quality 5.5kw main saw motor and 1.1kw scoring saw motor.
Specification:

Dimension of sliding table	3200x415 mm
Gross cut capacity	3200 mm
Width of cut between saw blade and rip fence	1250 mm
Tilting saw group	0-45°
Diameter of main saw blade	400 mm
Max cutting height 90°/ 45°	120mm/80mm
Speed of main saw spindle	3000/4000/5000 r.p.m
Main saw motor power	5.5 kw
Main spindle diameter	30 mm
Diameter of scoring saw blade	120 mm
Speed of scoring saw spindle	8000 r.p.m
Scoring saw motor power	1.1 kw
Scoring saw spindle diameter	22 mm
Gross weight	1100 KGS
Overall dimension	3250x3150x900 mm

PRODUCT APPLICATION
Company Introduction
Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years. We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance, spare parts and technical advice.We are committed to providing one-stop service for factory production. Relying on the favorable geographical advantages of Qingdao Industrial Park, we have formed a series of panel-type furniture equipment such as table saws, edge banding machines, and CNC routers, as well as solid wood woodworking machines such as :polishing machines ,palner machine,press machine etc,which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, and Australia.Bring our products and services for more than 66 countrys people and customers. We have established 7 complete system to gurantee all process of orders with timely and effective supervision and feedback .Our company has got ISO9001 international system certificate and CE security certificate for different kinds of machines.
Our Missions:
To provide customers with quality products and services, customer satisfaction is our highest criterion
Our Values:
Bring the highest quality and best advice for customer
Commitment to deliver the best we can in an ethical and professional manner
Continuously improve product technology and services to provide more customers with one-stop equipment procurement services.

SUCCESSFUL CASES


CERTIFICATE

PAYMENT AND LOGISTICS
TOP RATED
Recent activities CIFF FWM Shanghai Exhibition September 19,2024
FAQ:
Q:How to order?
A:Ask us → come to map to customize → use the situation to inform → receive our product design recommendation → negotiate details
Festival → Confirm the sample → sign contract/deposit → batch production → goods are ready → balance/delivery → further cooperation
Q:Which transportation method is available?
A:It is a special express delivery of shipping, the China Express Mail, and the Express Express can choose other transportation methods. Please contact us. If you need another shipping route.
