Product Description
Introduction Of 8m Aerial Working Platforms 10m 14m 16m 20m Electric Lifting Equipment Self-Propelled Folding High-Altitude Elevator Hydraulic Telescopic Boom Curved Arm Lift
ZMQBPT series Aerial working platforms make many difficult and dangerous jobs easier and are especially suitable for a larger range of continuous work at high altitude in airport terminals, stations, wharves, shopping malls, sports stadiums, community properties, factories, mines and workshops.
This kind of aerial lifting platform is characterized by compactness, flexibility and convenience. A self-propelled aerial working platform can be used instead of scaffolding to reach the height you need and solve your hard works.zmwm21
Operated by only one person, the machine can complete lifting, forward, backward, steering, slewing and other actions, which greatly improves work efficiency.
Product Parameters
Parameters of 8m Aerial Working Platforms 10m 14m 16m 20m Electric Lifting Equipment Self-Propelled Folding High-Altitude Elevator Hydraulic Telescopic Boom Curved Arm Lift

Specifications	ZMQBPT10D	ZMQBPT12D	ZMQBPT14D	ZMQBPT16D	ZMQBPT18D	ZMQBPT20D	ZMQBPT22D
Overall length (folded)	5.5m	6.3m	7.0m	7.18m	8.35m	8.86m	9.9m
Overall length (folded)	1.65m	1.78m	1.93m	2.18m	2.2m	2.25m	2.4m
Overall height (folded)	2.35m	2.35m	2.35m	2.53m	2.53m	2.53m	2.9m
Table size	1.6*0.8m	1.6*0.8m	1.6*0.8m	1.6*0.8m	1.8*0.8m	1.8*0.8m	1.8*0.8m
Number of working arms	5 sections	5 sections	5 sections	5 sections	5 sections	5 sections	5 sections
Travelling speed (folded)	4km/h	4km/h	4km/h	4km/h	4km/h	4km/h	4km/h
Lifting Travelling speed (unfolded)	0.8km/h	0.8km/h	0.8km/h	0.8km/h	0.8km/h	0.8km/h	0.8km/h
Mechanical arm swing	≤0.5%	≤0.5%	≤0.5%	≤0.5%	≤0.5%	≤0.5%	≤0.5%
Forearm luffing angle	130°	130°	130°	130°	130°	130°	130°
Min.turning radius	Outer wheel 4.4m Inner wheel 2.25m	Outer wheel 4.4m Inner wheel 2.25m	Outer wheel 4.6m Inner wheel 2.35m	Outer wheel 4.6m Inner wheel 2.35m	Outer wheel 4.55m Inner wheel 1.85m	Outer wheel 5.2m Inner wheel 2.2m	Outer wheel 5.2m Inner wheel 2.2m
Height of the worktable from the floor (folded)	620mm	630mm	300mm	200mm	90mm	100mm	-200mm
Wheelbases	1907mm	1907mm	2017mm	2017mm	2100mm	2540mm	2540mm
Track width	1440mm	1440mm	1550mm	1550mm	1800mm	1830mm	1830mm
Weight	4900kg	5800kg	6596kg	6900kg	8550kg	9200kg	11000kg
Voltage	24v	24v	24v	24v	24v	24v	24v
Tires specification	28X9-15 Solid Tire	28X9-15 Solid Tire	28X9-15 Solid Tire	28X9-15 Solid Tire	28X9-15 Solid Tire	28X9-15 Solid Tire	28X9-15 Solid Tire
Tires size	580mm	580mm	670mm	670mm	800mm	800mm	1000mm
Colour	yellow/customized	yellow/customized	yellow/customized	yellow/customized	yellow/customized	yellow/customized	yellow/customized
Max. working height	10m	12m	14m	16m	18m	20m	22m
Max. platform height	8m	10m	12m	14m	16m	18m	20m
Max. operating radius	5.8m	6.9m	8m	8.9m	10.6m	11.7m	12.2m
Max. spanning height	5.1m	5.7m	6.6m	7.6m	8.25m	8.55m	9.45m
Max. permissible chassis angle	1.5°/3°	1.5°/3°	1.5°/3°	1.5°/3°	1.5°/3°	1.5°/3°	1.5°/3°
Driving form	4x2x2	4x2x2	4x2x2	4x2x2	4x2x2	4x2x2	4x2x2
Max. Climbing	25%	25%	25%	25%	25%	25%	25%
Worktable load	230kg	230kg	230kg	230kg	230kg	230kg	230kg
Max. number persons carried	Two people	Two people	Two people	Two people	Two people	Two people	Two people
Worktable rtation angle (optional)	±80° (overall length will increase 200mm )	±80° (overall length will increase 200mm )	±80° (overall length will increase 200mm )	±80° (overall length will increase 200mm )	±80° (overall length will increase 200mm )	±80° (overall length will increase 200mm )	±80° (overall length will increase 200mm )
Wind rating	Level 3-4	Level 3-4	Level 3-4	Level 3-4	Level 3-4	Level 3-4	Level 3-4
Rotary angle of rotary table	355°discontinuous	355°discontinuous	355°discontinuous	355°discontinuous	355°discontinuous	355°discontinuous	355°discontinuous
Type of power	rechargeable battery	rechargeable battery	rechargeable battery	rechargeable battery	rechargeable battery	rechargeable battery	rechargeable battery
Travel drive	5.5kw	5.5kw	6.3kw	6.3kw	6.5	7.5kw	7.5kw
Lifting drive	4kw	4kw	4kw	4kw	5.5kw	5.5kw	5.5kw
Battery Voltage	2v	2v	2v	2v	2v	2v	2v
Battery capacity	250ah	250ah	250ah	250ah	330ah	330ah	400ah
Battery Charger	48v35A	48v35A	48v35A	48v/40A	48v/40A	48v/45A	48v/45A
Number of batteries	24 pieces	24 pieces	24 pieces	24 pieces	24 pieces	24 pieces	24 pieces
Hydraulic oil tank volume	60L	60L	60L	60L	80L	80L	80L

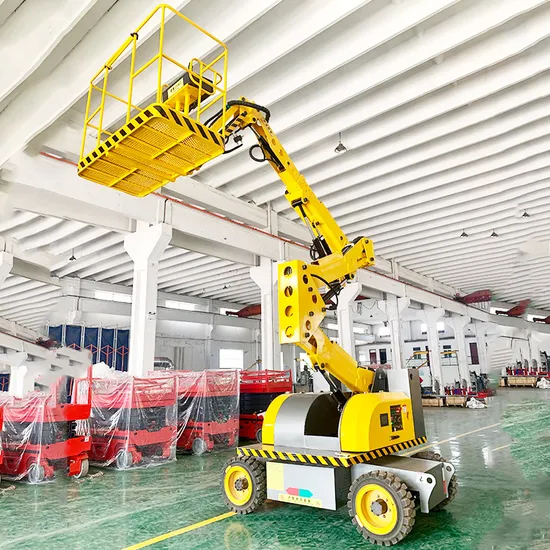

Detailed Photos
Photos of 8m Aerial Working Platforms 10m 14m 16m 20m Electric Lifting Equipment Self-Propelled Folding High-Altitude Elevator Hydraulic Telescopic Boom Curved Arm Lift
