Automatic Plastic Bottle Blowing Moulding Machine Price

Product Description

Product Description

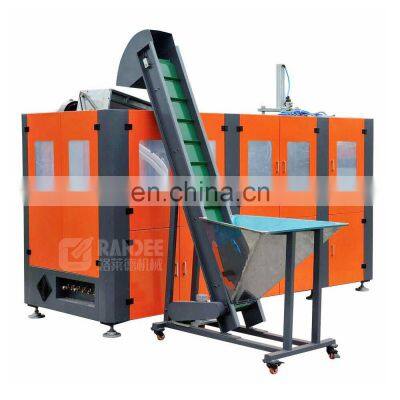

Automatic Plastic Bottle Blowing Moulding Machine Price
Product Description
GD-A6 Full automatic blow molding machine is suitable for producing PET/PE and PP plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
Features of main body:
1). Stable performance with advanced PLC.
2). Automatic preform conveyer to save human cost.
3). Preform self-rotation and infrared pre-heater revolution assure the even distribution of heat, which improve the bottle shaping rate, increase the production.
4). High adjusting performance to enable preheat the preforms perfectly by adjust the voltage control area in the PLC, which could adjust the temperature of the infrared lights in the pre-heater, and keep the proper temperature and humidity invariable.
5). High safeties with security automatic-locking device in each mechanical action, which will make the production into a perfect safe environment, in case of the breakdown in certain procedure.
6). Introduce the FESTO air cylinder to avoid contamination and noise.
7). Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
8). Strong clamping force with high pressure and double crank links to lock the mould.
9). Two ways of operating: automatic and manual.
10). Safe,reliable and unique design of the position of valve to make the pneumatic diagram in the machine easier to understand.
11). Low cost,high efficiency,easy operation and maintenance etc, profited from the fully automatic technological process.
12). Ideal cooling system make the finished bottles without any flaws.
13). Easy for you to install,test and start up.
14). Low rejection rate: less than 0.2 percent.
Operation:
The standard operation of GD-A6 stretch blow molding machine includes four steps as follow
Step 1. Put the preform into preform container and the conveyor will take the preform to orientation units automatically.
Step 2. Load the preform at neck up to preform holder, and then preform is conveyed into baking tunnel.
Step 3. After heating, preform is conveyed into the blow station, then close the mold, stretch and blow under low pressure and high pressure, exhaust, open the mold.
Step 4. The finished bottle is taken off by automatic discharging system
Main machine :
1.1 New Auto Preform Unscrambler System.*Adopts one-way preform-feeding structure and preform-separating by servo motor structure which solve the preform block and abrasion problem.
*There are two photoelectric sensors to control preform-loading motor and preform-separating cylinder that will warn the operator to add the preforms into the hopper when lacks preform instead of stopping the machine.
1.2 New Heating System.*Perfect heating system design decrease power consumption.
*Special oven design helps power saving and easy maintain.
*Each lamp position and temperature can be adjusted.
*Cycle air-cooling system keeps the oven temperature constantly.
We can design different bottle drawing for special customers
1.3The Application Of Servo System On Main Transmission.The transmission adopts servomotor for positioning that can orientate the preform-heating base quickly, accurately and steadily when the machine starts and running.
1.4 Servo Technology Innovation On Clamping System & Stretching.*Adopts servo motor to drive the two cranks to control the clamping system which can shorten the mold-clamping time and improve productivity, and also solve the swelling mold and big joint line problem with the effect of pressurize plate.
* Servo motor using for stretching to ensure the bottle blowing speed faster and more stable bottle quality.
1.5 Easy To Change Bottle Shape.*Drawer type mold structure design is easy for mold changing. Within one hour can change a mold on the condition of same bottleneck diameter.
1.6 Intelligent Human-Machine Interface.*Human-machine interface control, easy operate and monitor.
*Live production information supervise, auto record production data everyday
*Failure warning and troubleshooting.
Main technical parameter:

Model	GD-A6
Clamping force	680KN
Clamping stroke	125mm
Max. Stretching stroke	330mm
Bottom moving stroke	60mm
Number of cavity	6 cavity
Theoretical output	8000BPH (500ML)
Max. Mould thickness	200mm
Electrical System
Voltage standard	380v/3PH/50Hz or special order
Number of Heating Zone	6 Sections
Total power (full loaded)	35KW
Bottle specifications
Max. Bottle volume	1000ml
Neck Diameter Range	22-38mm
Max. Container Diameter	70mm
Max. Container Height	300mm
Air system
Low Air compressor	10Bar
High Air compressor	30-40Bar
Dimension & Weight
Blow molding machine	5.65X2.0X2.2m
Preform Auto loader	1.5*1.5*2.2m
Net Weight	6.8T

Related products
Company information
Workshop detail
Our team
Our exhibition
Project cases
FAQ
Q1: How to find suitable plastic bottle blow moulding machine or complete water production line?
A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn
Q2: What's the capacity of plastic bottle moulding machine?
A2: We have full automatic and semi automatic unit with 800BPH to 13000BPH for 500ml plastic bottle
Q3: How to choose the capacity of blowing machine for water production line?
A3: If you want 2000-3000BPH for 500ml water production line, you can choose semiautomatic blowing machine with 1500BPH, the cost is about 8000-10000USD, if 4000-5000BPH for 500ml, you can choose full automatic 4 or 6 cavity normal speed or high speed servo driven blowing machine, the cost is about 40000-60000USD, if you want more details, you can send me inquiry, we can give you more professional technical solutions.
Q4: Are you a trading company or a manufactory?
A4: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .
Q4: Do you have technical support after we purchased your machines?
A4: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.
Q5: If you buy our machines, can you offer us wear-out spare pats?
A5: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
