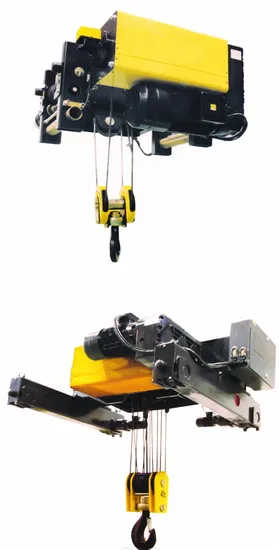

Movable Wireless Remote Control Electric European Hoist 1t~32t
| US$3,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HD
Application
Gantry Crane, Bridge Crane, Single Grinder Crane
Type
Electric Hoist
Sling Type
Wire Rope
Lift Speed
0.8/5m/Min
Maximum Lifting Height
20m
Chain Falls
European Type
Certification
CE, ISO9001:2000
Condition
New
Color
Yellow
Transport Package
Export Packing in Wooden Cases
Specification
customizable
Trademark
KUANGYUAN
Origin
Xinxiang, China
Production Capacity
500, 000 Sets/Year
Packaging & Delivery
Package Size
20000.00cm * 1000.00cm * 1000.00cm
Package Gross Weight
20000.000kg
Product Description
Product Descriptions
Design, production and inspection carry out the last issued relevant national standard, equivalently adopts some foreign criteria including FEM, DIN and lEC. Compared with the general QD bridge crane, its weight is reduced by about 15 ~ 30%, the maximum wheel pressure is reduced by about 10 ~ 35%, which can the requirements of crane for factory building structure and reduce production cost, As the core componentof driving mechanism, reducer gear pair with hard tooth surface and high accuracy, together with steel reelforged wheel and variable-frequency speed regulating system, which makes this type of crane becomerenewal product of traditional general bridge crane .
Technical specification:
| S.W.L (T) | Work duty | Lifting height (m) | Lifting speed (m/min) | Rope reeving | Travelling speed (m/min) | B (mm) | K1 (mm) | K2 (mm) | L (mm) | H (mm) | Wheel load (KN) | Weight (kg) |
| 1.6 | M6 | 6 | 1.6/10 | 2/1 | 2~20 | 200~300 | 500 | 450 | 930 | 400 | 6.1 | 300 |
| 9 | 500 | 450 | 1100 | 400 | 6.2 | 335 | ||||||
| 12 | 500 | 450 | 1270 | 400 | 6.3 | 370 | ||||||
| 2.5 | M6 | 6 | 0.8/5.0 | 4/1 | 2~20 | 200~350 | 500 | 450 | 1180 | 430 | 9.1 | 315 |
| 9 | 500 | 450 | 1400 | 430 | 9.2 | 350 | ||||||
| 12 | 500 | 450 | 1620 | 430 | 9.3 | 385 | ||||||
| 3.2 | M5 | 6 | 0.8/5.0 | 4/1 | 2~20 | 250~350 | 500 | 450 | 1180 | 450 | 11.5 | 335 |
| 9 | 500 | 450 | 1400 | 450 | 11.6 | 370 | ||||||
| 12 | 500 | 450 | 1620 | 450 | 11.7 | 405 | ||||||
| 6.3 | M5 | 6 | 0.8/5.0 | 4/1 | 2~20 | 300~450 | 490 | 450 | 1170 | 500 | 22 | 400 |
| 9 | 490 | 450 | 1400 | 500 | 22.1 | 450 | ||||||
| 12 | 490 | 450 | 1630 | 500 | 22.2 | 500 | ||||||
| 8 | M6 | 6 | 0.8/5.0 | 4/1 | 2~20 | 300~450 | 550 | 540 | 1120 | 650 | 28 | 580 |
| 9 | 550 | 540 | 1290 | 650 | 28.1 | 610 | ||||||
| 12 | 550 | 540 | 1460 | 650 | 28.2 | 640 | ||||||
| 10 | M5 | 6 | 0.8/5.0 | 4/1 | 2~20 | 300~450 | 550 | 540 | 1120 | 650 | 34.7 | 580 |
| 9 | 550 | 540 | 1290 | 650 | 34.8 | 610 | ||||||
| 12 | 550 | 540 | 1460 | 650 | 34.9 | 640 | ||||||
| 10 | M6 | 6 | 0.66/4.0 | 4/1 | 2~20 | 300~450 | 560 | 550 | 1140 | 700 | 34.7 | 650 |
| 9 | 560 | 550 | 1320 | 700 | 34.8 | 690 | ||||||
| 12 | 560 | 550 | 1500 | 700 | 34.9 | 730 | ||||||
| 12.5 | M5 | 6 | 0.66/4.0 | 4/1 | 2~20 | 300~500 | 560 | 550 | 1140 | 700 | 43.3 | 660 |
| 9 | 560 | 550 | 1320 | 700 | 43.4 | 700 | ||||||
| 12 | 560 | 550 | 1500 | 700 | 43.5 | 740 |
