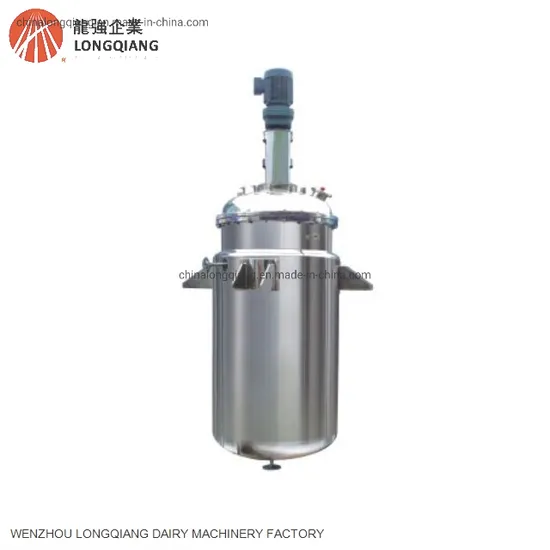

Agitation Fermentation Tank Stainles Steel Fermenter

Product Description

Fermentation tank
Fermentation tank is widely applied in pharmacy, fine chemical engineering and biological engineering in dustries. The tank body has interlayer and heat-insulating layer (for heating, cooling or heat insulating). The tank body, upper and lower closure heads (or taper) all adopt spinning R-angle processing. The internal wall of the tank has got mirror polishing with finish Ra≤0.4μm, It has no sanitary dead corner and its wholly-enclosed design ensures that materials are always.
Mixed and ferment at non-pollution state. It is equipped with devices including air respirator, cleaning ball, sanitation inlet, viewing mirror, and viewing lamp. The fermentation process of Pharmacy, fine chemical engineering and biological products is aseptic and untainted. Fermentation tank adopts aseptic system which helps avoid microorganism pollution in the air and greatly extends quality warranty period and purity of the products. We specially designed and installed aseptic respiratory air hole or aseptic normal-pressure fermentation system, which can finish circulating heat-up and cooling through medium heat-up and cooling. The parts that contact materials are all made of stainless steel SUS304 or SUS316L. Heat preservation adopts polyurethane blister or pearl cotton. External surface adopts sand grinding surface polishing treatment. All is in accordance with GMP standard. Volume has different specifications ranging from 100-20000L.
Technical Parameter

Model	100L	200L	500L	1000L	2000L	5000L	10000L	20000L
Diameter(mm)	400	500	700	900	1200	1500	1800	2300
High(mm)	2000	2300	2650	2900	3800	4480	5250	6550
Pressure in tank(MPa)	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2
Pressure in jacket(MPa)	0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.3
Impeller number	2	2	2	2	2	3	3	4
Agitation speed(r/min)	80
Motor power(Kw)	0.55	0.75	1.1	1.5	3	5.5	7.5	7.5
Cooling way	Jacket					Tubular
