Salt Lick Block Making Machine Salt Mineral Lick Block Making Machine

Product Description

Product Description
1. Structure: it consists of an upper beam, a slide block, a workbench, an upright post, a main cylinder, hydraulic system and electrical system components. The Salt table making hydraulic press machine column uses the high quality 45# forging steel and the surface hardness can reach HRC38-42.The main oil cylinder seals use imported materials to ensure reliable sealing.
2. Hydraulic System: The hydraulic system device is arranged on the right side of the press, with cartridge integrated system, flexible action, reliable work, good sealing performance. The hydraulic pump comprises an oil tank, a high-pressure pump, motor, cartridge valves and other components.
3. Electrical Control System: an independent electric cabinet and a centralized control panel.
4. Operation: Two working modes as inches and semi-automatic strokes.
5. Security: The emergency stop button can stop the machine immediately. The slide has Limit Switch on both up and down of the work table. Hydraulic support safety circuit is arranged in the cylinder piston inside of the hydro-cylinder.

Product Parameters

Parameters	YQ32-200	YQ32-315	YQ32-500	YQ32-630	YQ32-800
Nominal Force(KN)	2000	3150	5000	6300	8000
System Pressure(Mpa)	25	25	25	25	25
Max opening distance(mm)	900	1000	1500	1800	1800
Slider effective stroke(mm)	600	600	900	1000	1000
Effective worktable size(mm) -L.RXF.B	800x800	800x800	1400x1400	1500x1500	1500x1500
Salt Block Weight (Kg)	2	2-5	5-10	10-15	15-20

Machine application

2kg~5kg Salt Block- 315ton hydraulic press
5kg~10kg Salt Block - 500ton hydraulic press
10kg~15kg Salt Block - 630ton hydraulic press
10kg~20kg Salt Block - 800ton hydraulic press

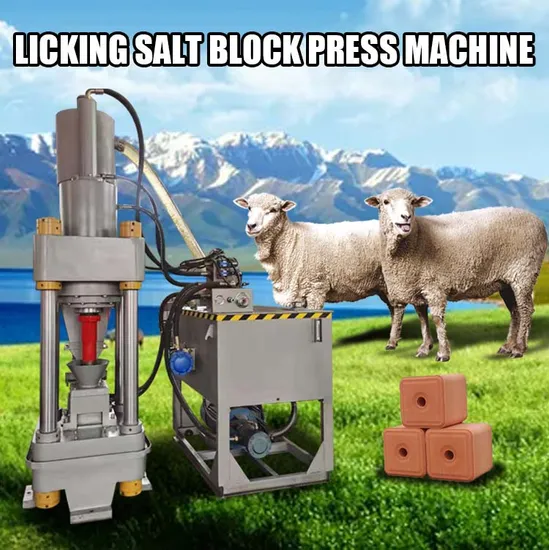

Machine display

Packing and shipping
