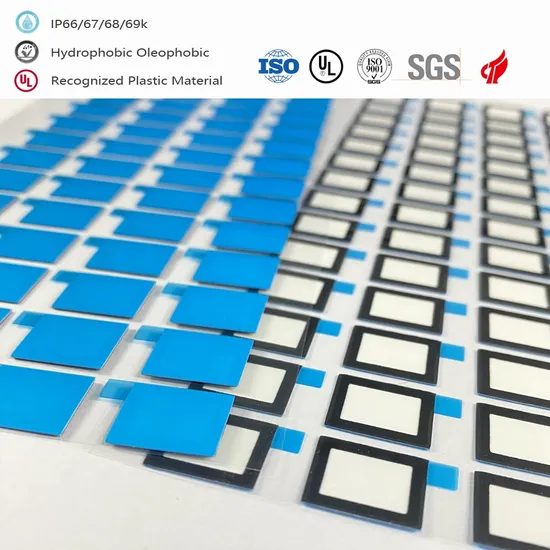

Hydrophobic IP 68 Adhesive Breathable Eptfe Acoustic Vent Membrane

Product Description

Products	Medium gas volume, medium protection level			Trademark		Smart Membrane®-Vent
product name	BD 04100300 black			Product ID		DT
Product performance and features
Waterproof breathable product main function		Our products can provide excellent protection performance and durability in harsh environment
\		Test Standard	Characteristic value		Notes
IP grade		IC	IPX7		IPX7 is a test area of1cm2,Problem 30 under 1.0 m water column minutes without wading
Water entry pressure, kPa		\	≥ 10		The test area is:1cm2,The test time is 50sec
Typical air permeability mL/cm2/min@7kPa		Industry standards	≤3000		The test area is 1cm2 of the actual test air permeability
Operation Temperature		GB/T2423.1-2008	Tmin = −40ºC ;Tmax = +120ºC		\
Surface Properties		(AATCC)118-1989	Hydrophobic		Oleophobic modification can be carried out according to practical application
Category		\	(e-PTFE)∣non-woven fabrics		\
Structure		\	Laminating film: With backing material		\
Thickness,mm		GB 6672-86	0.10±0.03		\
Application		Waterproof, breathable, filtered
Function		Quickly balance pressure to extend service life, effectively manage condensation, and reduce shell design complexity, weight, and cost;Reliable protection of sensitive electronic devices from water and other liquids;Effective protection against contaminants such as dirt, dust or salt.

Membrane Vents 1.SST-Porous®BD G00 series ePTFE membrane vents in grey color, made by over 95% PTFE fine powder and some extend of black color,
through special stretching process, thousands of "nodes" and "fibers" are formed.
2.As its proprietary ePTFE microporous membranes allow air and gases to pass through freely, so moisture can diffuse before
condensation problems arising.
Customization: SPIDER Tech's protective vents can be customized to match your products in spec., color, property and we can provide you with specific solutions. For more information, please contact us freely.
Don't hesitate to contact us at anytime, no matter inquiry, TM message, via email or skype. If we are online,we will reply you at once. Even if sometime we are not online because of time difference, we promise you will be replied within 8 hours.
Design1) Use tweezers place the adhesive tape on the surface of the counterbore, and then press the patch against the mounting surfaceedge .
2) Press the rim after the adhesion for about 1.5s ;Don't make any move on the membrane after adhesion until 24 hours.
Attention:Ensure that the enclosure's mounting surfaces are smooth, clean and free from oils, particles or other contaminants;
Ensure that the enclosure's mounting surface is dry prior to vent installation.
What is SST-Porous Adhesive & BD GOO series Waterproof venting?1.SST-Porous0 BD G00 series-Adhesive ePTFE protection vents in Gray color , research & developed by Spider(SST) independentlymade by 100% PTFE material, combined with acrylic adhesive by precise processing to form an adhesive breathable protection vents.
2.SST-Porous@BD G00 series- adhesive protection vents in gray color, they could reliably keep out rain, sleet, snow, dust, dirt anddebris, and continuously equalize inteal pressure(compensate pressure). They could be mounted to the surface of the electroniccomponent housing either automatically or manually.Application CaseApplication of Acoustic Vents Membrane for Speaker:
• Cell phone• Smart phone• Portable media players• Bluetooth earphone• Outdoor radio• Interphone/ Two-way radio • Headphones• Heart rate monitor• Personal medical devices• GPS devices• Tablets• Cycling computers
Why Choose Us
Payment & LogisticsPacking Details:
1) Packing in a PE bags and carton for outer packing, 500-1000pcs pure eptfe membrane /bags.
2) Carton Size: Customized or based on actual weight and volume.
Shipping Details :
1)By express (3-5 working days)Within 3-7 days upon receipt of the payment.
2)Tell us your requirement about the Shipping by CLICKING HERE, so that we can provide solution to save your
