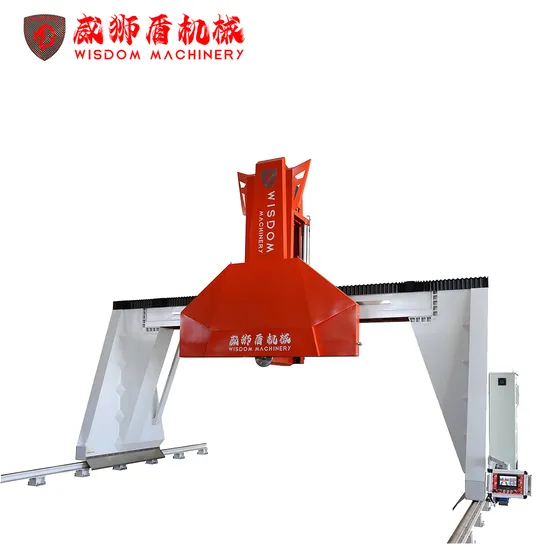

Wisdom Machinery Stone Rock Block Cutting Machinery for Quarry

Wisdom Machinery Stone Rock Block Cutting Machinery for Quarry

US$80,000.00-150,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
WSD-G3600
Type
Stone Cutting Machine
Usage
Ceramics, Fire Brick, Red Brick, Jadestone, Cement Brick, Granite, Marble
Application
Construction, Stone Industry
Source Voltage
Custmized
Automation
Automatic
Cutting Ability
High Speed
Control
PLC
Transport Package
Standard Export Package
Specification
3600mm
Trademark
WISDOM
Origin
Jinjiang, Fujian, China
HS Code
84641010
Production Capacity
50 PC/Month

Product Description

1. Super heavy duty Casted iron bridge
2. Super heavy duty double shaft gearbox transmission
3. 100Hp 75KW Blade motor
4. Blade Variable Frequency Drive to meet different cutting speed
5. 12 Meter Super Heavy Duty tracks
6. Auto on/off water
7. Multi rock programming, Auto continuous cutting multi blocks
8. Auto lubrication system
9. Easy operation interface available in English and Spanish
10. Metric and Imperial unit
11. Swivel Arm operator panel
12. Industry anti water Wireless controller
13. Super heavy steel wall
Specification
Main motor power Unit 75KW 100HP
Max cutting width mm 3500
Max lifting stroke mm 2000
Max Blade size mm 3600
Water consumption M³/h 6
Weight kgs 18000
Dimension mm 8800*12000*8000

Product pictures

Company Intruction
You can always trust Wisdom
With more than 10 years committed to the stone machinery industry, Wisdom Machine is an experienced manufacturer.
Our machines are designed with American standard, and for maximum durability and high efficiency so that we can provide competitive stone machines for customers and continuously create value for customer, to achieve mutual benefit.
Package and Loading
Similar Products
Other Products
FAQ
1. What is your Warranty Time
We provide 2 years free parts warranty for our bridge saw.
2. What is the MOQ?
1 Set
3. Can you make custimzed stone machine?
We have experienced and professional engineer, to make custmized stone machine is our advantage.
4. What is the lead time of your machine?
For standard machine, takes around 20-30 days, for custimzed machine, lead time will depends.
