53FT 45FT 3 Axle 40ton Cargo Box Dry Van PVC Fabric Water-Proof Curtain Side Truck Semi Trailer with BPW Air Suspension for Russia Market

53FT 45FT 3 Axle 40ton Cargo Box Dry Van PVC Fabric Water-Proof Curtain Side Truck Semi Trailer with BPW Air Suspension for Russia Market

US$18,000.00-31,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
curtain side-004
Type
Semi-Trailer
Load Capacity
40t
Certification
ECE, GCC, CE, ISO9001, DOT, CCC, ISO/TS16949, as Required
Wheel Base
9000-10000mm
Tread
1840
Grade
Light Duty
Types of Suspension Systems
Air Suspension
Shape
Van-type
Axle Number
3
Tire Number
7
Self-dumping
Not Self-dumping
ABS Anti-lock Braking System
ABS Anti-lock Braking System
Material
Steel
Condition
New
Name
Curtain Side Semi Trailer
Axle
Fuwa/BPW/L1
Tire
as Required
Rim
as Required
King Pin
90
Landing Gear
Jost
Twist Lock
Optional
Floor
Wood Floor
Payload
40tons
Color
Optional
Valve
Wabco
Trailer Type
Van Type Semi Trailer
Pacakge Type
Nude
Painting
Customizable
Function
Cargo Transporting
Transport Package
Wax Spray
Specification
14.5*2.5*4.0m
Trademark
Tank
Origin
China
HS Code
8716391000
Production Capacity
3000sets/Year

Product Description

Product Description

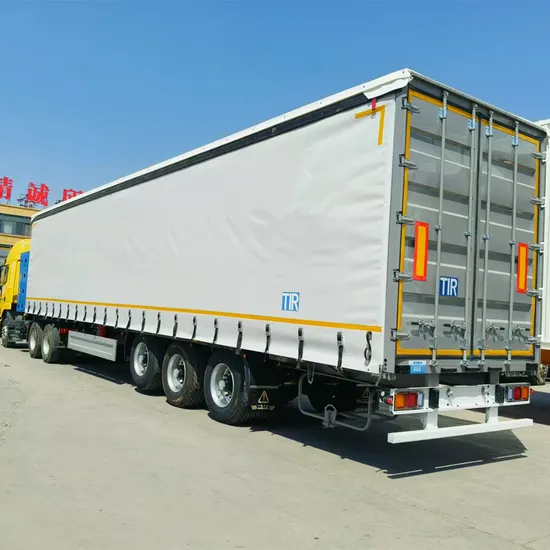

53ft curtain side semi trailer with BPW air suspension
Curtain Side Semi Trailer, also called canvas side curtain semi trailer, is an efficient semi trailer widely used in the logistics and transportation. This design not only improves loading and unloading efficiency but also can adapt to a variety of transportation needs.
Inside dimension13640×2480×2700mm(Size is according to customers requirements)
Overall dimension13885*2500*4000mm
Payload40000 kg
Tare weight6700kg
Front and rear gateAluminium alloy
Side plateAluminium rail
Frontand rearpillarCarbon steel
Central pillarSliding pillar/6 sets
Roof-hosting system4sets,the roof can slide to open
Theroof curtain650GRM,low temperature resistant(-40ºC)
The side curtain900GRM,low temperature resistant(-40ºC)
Floor hooks28 pcs or according to requirments
Axle10T disc braking system,wheel track 2050,two axle with ABS BPW FUWA or local brand is optional
Tire385/65R22.5/20PR 7 pcs brand and model is optional
Rim11.75-22.5/7pcs brand and model is optional
Side beam16mmchannel steel(carbon steel)
Through beamFactory standard
Thickness of Floor30mm Waterproof phenolic resin floor(two-sided)
Thickness of Upper and lower wing plateUpper wing plate 10mm,Lower wing plate 10mm
Web plate thickness andheightThickness 5mm,height480mm
LandinggearFUWA or JOST or SAF brand 28T two-speed landing gear
SuspensionThe first axle can be lifted,and imported air suspension
Kin ping50mm/90mm JOST Bolt-in
Tool box1 piece 600mm Aluminium
Sparetire framesSide-installed 2 pcs
EBSWABCO EBS
Detailed Photos
This curtain side semi trailer we choose aluminum alloy track,more smooth and lightweight to use.Very easy to open when we need load and unload goodsReinforced aluminum alloy cross brace makes the trailer light and strong.The goods more secure during delivery.The floor of the curtain side semi trailer we choose 30mm wood floor.Anti corrosion on both sides, anti slip on the surface.It is designed according to customers requirements.The front and rear doors are both made of aluminum alloy material,The front door is made in a corrugated style for greater durability. There is a hidden ladder at the rear of the car, making it easier and faster to get in and out of the curtain side semi trailer.FUWA or JOST brand landing.Even if we use local brand landing gear we also can guaranteed quality.We will not use bad trailer parts to reduce the cost. Our Advantages
1.Years of experience in semi trailer design and production can supply best design for customers.
2.Famous Brand Axle/suspension/landing gear/tires support trailer durable and high attendance rate.
3.China best raw material support stronger trailer chassis and body.
4.Professional advanced production technology and strict quality control ensure the quality of semi-trailer
5.Years of export experience can help customers apply for various certifications or certificate of Origin.
The steel plates used for semi trailer manufacturing are purchased from china well-known large steel factory.
Cutting raw material according to production drawings.Welding the main beam of the semi trailer.We use Gantry Main Sill Welding Machine.Welding other accessoriers of the semi trailer such cross member,suspension,floor.Sandblasting and rust removal of semi trailer frame.Make the semi trailers easier to paint and less prone to peeling and rusting Clear the welding slag and conduct welding quality inspection on the semi-trailer.Dust free spray painting room:1coat of anti corrosive prime,2coats of final paint.Color and logo is according to customers requirements.
Customer also can choose electrostatic powder spraying.
Stronger adhesion and corrosion resistanceComplete assembly, wait for shipment after re inspection.
We will try to save more space for customers to save shipping cost.
Packaging & Shipping
1.Loading in the container by cutting the tail.One 40HQ can load two sets 40ft flatbed semi trailer.
2.3 units flatbed semi trailer in one set to save cost.Nude with wax spray.
32 units semi trailer in one set.Professional package design to meet different customer needs
Company Profile
Shandong tank automobile company limited is a professional semi trailer and trailer parts exporter.Our company have our own semi trailer and trailer parts factory.Our factory covering an area of 200000 square meters, and over 130 employees.
At present, the company mainly specializing in manufacturing special vehicles such as low bed semi trailer, flatbed semi trailer, skeleton type semi trailer,cargo transport semi trailer,oil tank semi trailer, bulk cement semi trailer,dumper semi trailer and so on.We also export used truck tractors.And our trailer parts factory mainly manufacture semi trailer axle,mechanical suspension,air suspension,bogie suspension and landing gear. Our boasts strong technical force, advanced line production equipment of welding and excellent quality guarantee system, modern testing means and high qualified specialist technicians, making the products trusted and welcomed widely by the users from all over the world. The company wants the customer's thoughts and urgency. Solving problems for customers and meeting customer needs is our eternal pursuit!
Our company's products are sold worldwide. The company has won the unanimous recognition of consumers with satisfactory product quality and perfect after-sales service. We have a professional R & D team. We can design and produce according to the drawings provided by our customers.

FAQ
1.What's your payment terms ?By T/T,LC,Paypal. T/T 30% deposit in advance, balance 70% before shipment by T/T or L/C2.How long is your production lead time?It depends on product and order quantity. Normally, it takes us 15 days for an order with MOQ quantity .3.Can you do OEM and ODM for me?We accept all OEM and ODM orders,you just contact us and give me your design and information. we will offer you are reasonable price and make samples for you .4.When can I get the quotation ?We usually quote you within 8 hours after we get your inquiry. If you are very urgent to get the quotation,please call us or tell us in your mail, so that we could regard your inquiry priority.
