Agricultural Machinery Mini Farm Tractor 8HP 10HP 12HP Rotary Tiller Diesel Mini Power Tiller Power Weeder Diesel Cultivator

Agricultural Machinery Mini Farm Tractor 8HP 10HP 12HP Rotary Tiller Diesel Mini Power Tiller Power Weeder Diesel Cultivator

US$240.00-300.00 50 Pieces (MOQ)

Basic Info.

Model NO.
178F Diesel
Application Field
Agriculture
Farming Policy
Dry Cultivating Machinery
Power Source
Diesel
Operation
Soil Preparation Machinery, Movable Operation
Traction Type
Semi Hanging
Drive Type
Gear Drive
Arbor Configuration
Vertical Shaft
Certification
ECE, EU, CE
Color
Orange
Warranty
6 Months
Model Name
178f/P Diesel Engine Power Tiller
Nominal Power
4 .0kw
Nominal Speed
3600 R/Min
Working Speed
0.1~0.3 M/S
Weights
85 Kg
Total Number of Knives Installed
32
Maximum Turning Radius
180 mm
Ploughing Width
1050
Fuel Consumption Per Unit of Working Are
≤30kg/H.M
Fuel Type
Diesel
Starting Mode
Hand Pull Start
Structure Type
Forced Air-Cooled, Four-Stroke
Transmission Mode
Gear
Connection Mode
Direct Connection
Specification Model
Handheld
Transport Package
Wooden Box/Carton
Specification
95 * 56 * 85 cm
Trademark
Eagle Sino / Customized
Origin
Chongqing. China
HS Code
8432290000
Production Capacity
100000 PCS/Year

Packaging & Delivery

Package Size
95.00cm * 56.00cm * 84.50cm
Package Gross Weight
119.000kg

Product Description

Product Description

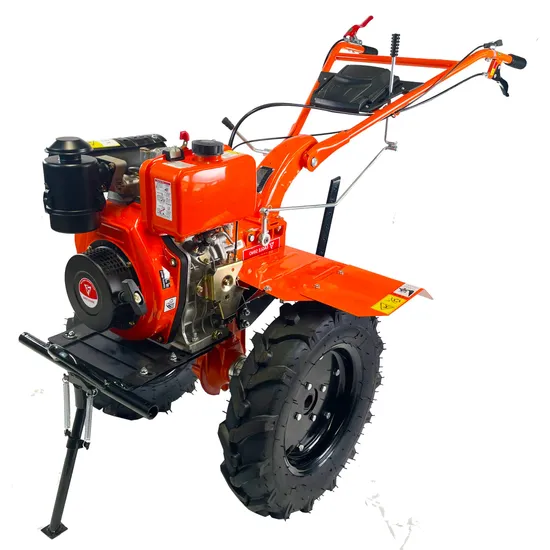

178F Agricultural Machinery Mini Tiller
The 178F diesel cultivator is designed with a direct connection between the engine and the gearbox, which ensures continuous and stable power output and reduces the loss of power in the transmission process.
EAGLE SINO's cultivator adopts air-cooled diesel engine with good engine reliability, which provides a stable power source for the cultivator. The weight of the direct-connected cultivator is moderate, which ensures the stability of the machine and makes it easier for the operator to carry and operate.
As the direct-connection structure reduces friction and vibration between transmission components, it makes the machine run more smoothly. During the working process, the vibration and noise generated are relatively small, which not only improves the comfort of operation, but also reduces the interference with the surrounding environment.
EAGLE SINO cultivators with different tillage tools can be used for dryland ploughing and rotary ploughing of paddy fields. With specialised implements, it can be used for pumping, irrigation, spraying and threshing

Product name 173F Diesel powered Power Tiller
model name 1WG4.5-110FC-ZC
Specification Model Handheld
Matching Engine Model Name 178F Diesel engine
Structure Type Forced air-cooled, four-stroke, swashplate, single-cylinder
Nominal Power 4.0 kW
Nominal Speed 3600 r/min
Starting Mode Hand pull start
Fuel Type Petrol
Overall dimension(mm) 1740x1100x800
Weights 97kg
Transmission mode Gear
Connection mode Direct connection
Adjustment of handrail Horizontal direction 0 °
Vertical direction 100°
Knife and roller speed Fast gear F:130 r/min
Slow gear S:93 r/min
Maximum turning radius 180 mm
Total number of knives installed 32
Type of rotary ploughing knives Dryland Knife
Main clutch Type Friction blade type
Condition Normally open
Ploughing width 1100 mm
Ploughing depth ≥100 mm
Working speed 0.1~0.3 m/s
Hourly productivity ≥0.04 hm²
Fuel consumption per unit of working area ≤30 kg/hm ²

Detailed Photos
★ Strong Power Output
The diesel engine has a higher torque and power output, which allows the micro-cultivator to maintain efficient tillage in hard soils or for long periods of continuous operation.
★ Dust Filtration is More Thorough
The high quality air filter is extremely effective in blocking particulate impurities in the air, providing the engine with a highly clean intake, thereby improving the dynamic performance and efficiency of the micro-cultivator.
★ Rapid Heat Dissipation
The thermal conductivity of the muffler is good, which helps the machinery to dissipate heat quickly when working at high load, prevent the performance decline or mechanical damage caused by overheating, and ensure the stability of continuous operation
Company Profile
Chongqing Eagle Sino Machinery Co.,Ltd, specializing in the production of power tillers, power weeder, cultivator, water pump, generators, brush cutters is located in No. 178 longtang dadao, longshui, dazu, chongqing, China. With a commitment to quality and innovation, we have established ourselves as a leading manufacturer in the agricultural machinery industry. Our factory covers an extensive area and is equipped with advanced production facilities and technologies. Our state-of-the-art assembly lines ensure efficient and precise manufacturing processes, allowing us to meet the growing market demand. Our team of highly skilled engineers and technicians possess extensive expertise in the design and development of micro tillers.
They constantly strive to improve the performance, durability, and functionality of our products to provide farmers with reliable and efficient tools for their agricultural operations. In addition to our focus on quality, we also place great emphasis on customer service. Our dedicated sales and support teams are always ready to assist customers with their inquiries and provide prompt after-sales support. With years of experience and a passion for excellence, our products are dedicated to delivering high-quality products and services to customers around the world, contributing to the modernization and efficiency of agricultural production.
Packaging & Shipping
FAQ
Q1:Do you support OEM/ODM?
A1:Yes.We can offer OEM/ODM service.
Q2:Are the engines of rotary tiller machines customizable?
A2:Yes. We can customize the engine according to customer's design.
Q3:What is your MOQ of power tiller?And how long is your processing time?
A3:1 sets. If there is no stock, it will be 10-20 working days, if there is stock, it can be sent out immediately.
Q4:How long is your warranty?
A4:1 year or 6 months warranty whichever comes first except the wearing and tearing parts.
Q5: What are your terms of payment?
A5: For large purchases, we can accept 30% deposit and 70% final payment when the goods are ready.
Q6: How do you ship and how long does it take to get there?
A6:We usually ship by express or ocean freight, other shipping ways are also available.
Q7:How do you handle product failures?
A7:First of all, our products are manufactured under a strict quality control system. And there is a strict inspection process before shipment. The rate of defective products and low. For defective batches, we will repair and resend them to you, or we can discuss a solution, including a re-recall, depending on the actual situation.
