Basic Info.
Applicable Material
Fabric, Rubber, Plastic, Genuine Leather, Artificial Leather
Solenoid Valve
Made in Taiwan
Electric Parts
Made in Japan(Omron Brand)
Ring
Made in Japan(Nok Brand)
Automatic Grade
Automatic
Transport Package
Wooden Case
Production Capacity
200 PCS/Year
Product Description

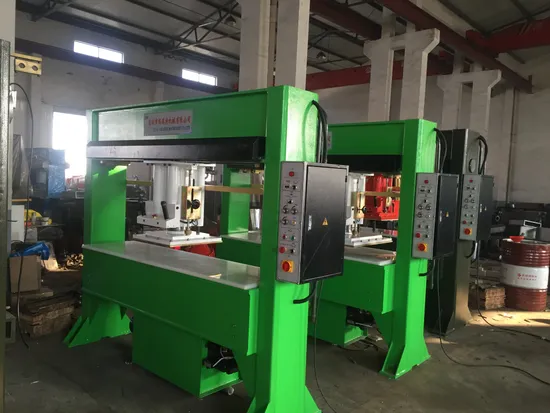

30T moving head cutting press
Product Description
Features:
1. Gantry frame structure made of profile steel is adopted, with high intensity and without deformation.
2. The cutting head can automatically move horizontally, with excellent operating visual field and safe and reliable operation.
3. The hydraulic system specially designed is featured by low noise and low oil consumption.
4. The lifting position of pressing board can be freely set to reduce idle travel and enhance work efficiency.
5. The movement of cutting head is controlled by automatic speed variation to realize flexible movement with high speed and accurate positioning and without impact.
6. Differential oil way is adopted to allow rapid and convenient cutting.
7. Products of special specifications can be customized. Product Parameters
Main Technical specification |
Model | GRT-T30 |
Maximum cutting force | 30T |
Working table size | 1600*500mm/1800*500mm/2000*500 |
Cutting head size | 500*500mm |
Adjustable stroke | 5-150mm |
Motor power | 2.2KW |
Electric Supply Voltage | 3x440/415/400/380/220/200V, 50/60 Hz |
Machine dimensions | 2200*720*2000mm |
G. W | 1600kg |
REMARK:MY FACTORY CAN MAKE THE MACHINE ACCORDING YOUR REQUEST,FOR EXAMPLE,THE WORKTABLE SIZE,CUTTING HEAD SIZE. Detailed Photos
