Basic Info.
For
Ceramic Pressure Transmitter
Output Signal Type
Analog Type
Production Process
Injection
Measuring Medium
Liquid, Gas and Steam
Customized
Non-Customized
Applicable Media
Liquid, Gas, Steam
Pressure Range
0-10bar, 0-20bar
Cell
Ceramic Capacitive Pressure Sensor
Pressure Measurement
Gauge Pressure, Sealing Pressure
Power Supply
4.75-5.25VDC
Accuracy(Linearity, Hysteresis and Repea
1%F.S.
Work Temperature
-20~70ºC
Temperature Drift(Zero)
±0.15% F.S. (-20~70ºC)
Electrical Connection
Cable Outlet/Parkard Connector
Mechanical Connection
G1/4, NPT 1/4 Male
Transport Package
Standard Export Carton Box
Specification
G1/4 male, 1/4NPT male
Production Capacity
5000 Pieces Per Month Pressure Transmitter
Product Description

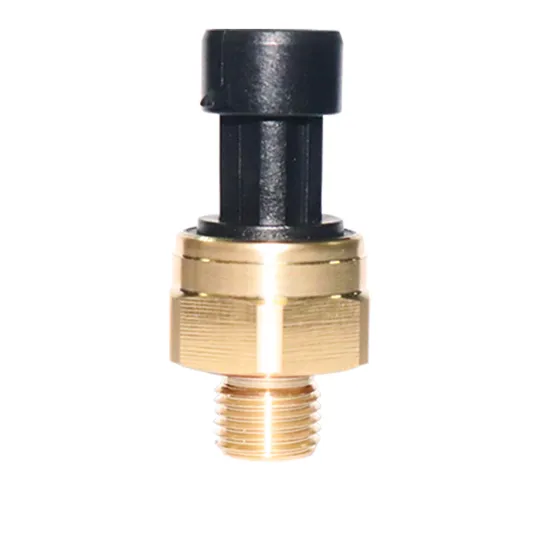

WNK 0.5-4.5V Ceramic Water Air Pressure Sensor Brass Housing Product Description WNK83MA is a low cost ceramic capacitive pressure sensor. It uses our patented ceramic capacitive core pressure sensor, with accuracy of 1%FS, suitable for various IOT, IIOT and other process control fields. WNK83MA has brass or stainless steel 304 housing and electrical connectors of Packard and direct cable. Its output is linearity 0.5-4.5V. With big stock, we ship you sensors very fast. As an original producing factory, OEM, ODM and customization services are welcome!
Applicable media | Liquid, gas, steam |
Pressure range | 0-1000Kpa 0-2000Kpa |
Pressure measurement | Gauge pressure, sealing pressure,absolute pressure |
Output | 0.5-4.5V |
Power Supply | 4.75-5.25VDC |
Accuracy(lineraity, hysteresis, repeatability) | 1%FS |
Compensation temp | -20~70°C |
Working temp | -40~110°C |
Temp drift(zero) | ±0.15%FS(-20~70°C) |
Temp drift(full range) | ±0.15%FS(-20~85C) |
Electrical connection | Parkard |
Mechanical connection | 1/4 NPT |
Housing material | Brass |
Mechanical Dimension
Application
Product Show
Company Profile
FAQ
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
Q: What's your quality control system? A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
Q: What is the warranty of your products? A: 12 month from shipment date, for non-man-made damages.
Q: Shipping and Delivery? A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea.
