Hydraulic Lift Toothpaste Making Jar Cream Mixing Agitador Body Lotion Homogenizer Mixer Vacuum Cosmetic Emulsifying Machine

Product Description

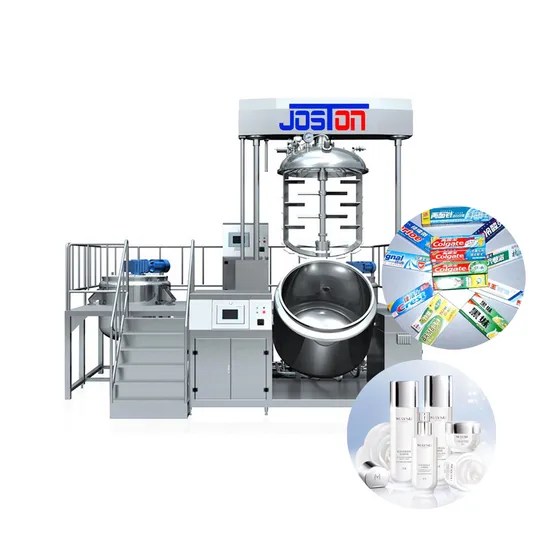

The machine including vacuum emulsifying mixer tank,water phase tank ,oil phase tank, vacuum pump, hydraulic system, tilting system, pipeline and electric control system.
Vacuum emulsifying tank machine for pharmaceutical and cosmetic is a complete vacuum mixer system for the manufacturing of ointment and cream in the cosmetic, pharmaceutical, food and chemical industries like fine chemical products, especially the material having high matrix viscosity and solid content. Such as cosmetic, cream, ointment, detergent, salad, sauce,lotion,shampoo, toothpaste and so on.
Main structure:
1. Main Emulsify mixer tank:
Structure: With three-layer structure, upper and lower end sockets. The upper end socket is connected to the tank body with flange between them.In the mixer tank, there are three mixers:
1.1 Cutting and vortex emulsify mixer: 1150-3500 rpm (frequency control)
1.2 Low-speed frame type scraping mixer: 10-40 rpm (frequency control)
1.3 Low-speed converse mixer:electric motor is the same as low-speed frame type scraping mixer's 10-40 rpm.
1.4 Attached units of the tank: Liquid feed inlet with stainless steel pipe filter, solid adding material inlet, vacuum inlet, compress air inlet, breaking vacuum nozzle, sight glass, temperature sensor, CIP cleaning head, dust proof asepsis respiratory device.
1.5 three layers structure ,jacket can be heating by steam or electrical
2. Pre-treatment tank:
1.1 oil phase tank and water phase tank
1.2 Structure: open (half-open) type, with mixer.
1.3.three layers tank structure ,jacket can be heating by steam or electrical
3. Vacuum system
Adopting water ring type vacuum pump
4. Hydraulic system
Composed of oil cylinder, solenoid valve, over-fall valve, oil box, and pressure- keeping valve. 5. Electric control system (PLC control/button control optional )
Technical description:

Model	capacity	Emulsify motor For emulsifying tank		Scraper /Frame Agitator motor For emulsifying tank		Dimension mm			Vacuum pump :Kw	Oil/water tank motor Kw
		KW	RRM	KW	RPM	L	W	H
JSRHJ-20	20	2.2	0-3500	0.37	0-40	1800	16000	1850	0.75	0.37
JSRHJ-50	50	3	0-3500	0.75	0-40	2700	2000	2015	1.1	0.737
JSRHJ-100	100	3	0-3500	1.5	0-40	2920	2120	2200	1.45	0.75
JSRHJ-150	150	4	0-3500	1.5	0-40	3110	2120	2200	2.2	0.75
JSRHJ-200	200	5.5	0-3500	1.5	0-40	3150	2200	2200	3.0	0.75
JSRHJ-350	350	7.5	0-3500	2.2	0-40	3650	2650	2550	3.7	1.1
JSRHJ-500	500	7.5	0-3500	2.2	0-40	3700	2800	2700	4.0	1.1
JSRHJ-750	750	11	0-3500	4	0-40	3780	3200	3050	5.5	2.2
JSRHJ-1000	1000	15	0-3500	4	0-40	3900	3400	3150	7.5	2.2
JSRHJ-1500	1500	18.5	0-3500	7.5	0-40	4000	4100	3600	11	3.0
JSRHJ-2000	2000	22	0-3500	7.5	0-40	4850	4300	3750	11	3.0

Product drawing
SERVICEWe have established some overseas agent office to make the after-sales serivce already ,so it can will be service client in fast response .also in our headquarter service team ,there is a expert team which can support client in 7*24 hours .
1. Customer inquiry and consultation (URS documents)
2. Confirmation of treatment plan (DQ documents &PID Drawing)
3.Quotation offer with the technolgy document (Quotation PI )
4.Engineering and Manufacturing (Prodcution &Quality inspection )
5. Product inspection (FAT documents)
6. Delivery arrangement and loading work (full set Shipment documents)
7. After-sales service (OQ,PQ ,SAT documents)FAQ1.What about your factory?
