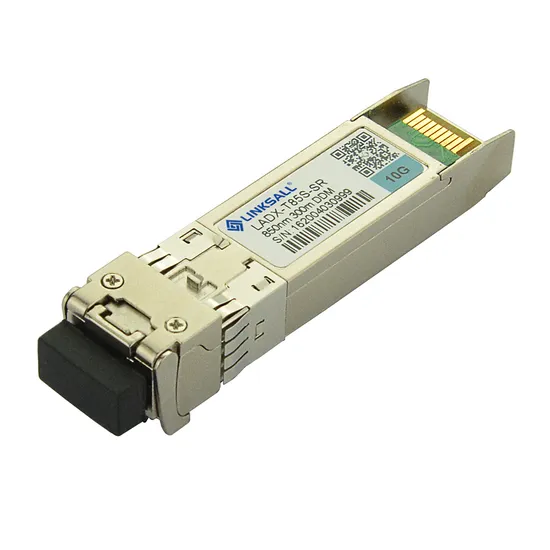

10G 850nmn 300m multi-mode sfp transceiver / module
Product Features
10Gb/s serial optical interface compliant to 802.3ae 10GBASE-SR 850nm VCSEL transmitter, PIN photo-detector Duplex LC connector Metal enclosure, for lower EMI Electrical interface compliant to SFF-8431 2-wire interface for management Specifications compliant with SFF 8472 Single 3.3V power supply Case operating temperature range:0°C to 70°C
Applications
10GBASE-LR/LW & 10G Ethernet
Standard
Compliant with SFF-8472 SFP+ MSA. Compliant to SFP+ SFF-8431 and SFF-8432. Compliant to 802.3ae 10GBASE-SR. RoHS Compliant.
Absolute Maximum Ratings
Parameter | Symbol | Min. | Typ. | Max. | Unit | Note |
Storage Temperature | Ts | -40 | - | 85 | ºC | |
Power Supply Voltage | VCC | -0.5 | - | 4.7 | V | |
Case Operating Temperature | Tcase | -5 | - | 70 | ºC | |
Optical Characteristics
Parameter | Symbol | Min | Typ | Max | Unit | NOTE |
Transmitter | | | | | | |
Output Opt. Power | POUT | -6 | | -1 | dBm | 1 |
Optical Wavelength | λ | 840 | 850 | 860 | nm | |
Output Eye Mask | Compliant with IEEE 802.3ae | |
Receiver | | | | | | |
Rx Sensitivity | RSENS | | | -10 | dBm | 2 |
Input Saturation Power (Overload) | Psat | 0.5 | | | dBm | |
Wavelength Range | λC | 770 | 850 | 860 | nm | |
LOS De -Assert | LOSD | | | -14 | dBm | |
LOS Assert | LOSA | -30 | | | dBm | |
LOS Hysteresis | | 0.5 | | | dB | |
Notes: Class 1 Laser Safety per FDA/CDRH and IEC-825-1 regulations. Measured with a PRBS 231-1 test pattern, @10.325Gb/s, BER<10-12 .
Electrical Characteristics
Parameter | Symbol | Min | Typ | Max | Unit | NOTE |
Supply Voltage | Vcc | 3.14 | 3.3 | 3.46 | V | |
Supply Current | Icc | | | 250 | mA | |
Transmitter | | | | | | |
Input differential impedance | Rin | | 100 | | Ω | 1 |
Single ended data input swing | Vin,pp | 180 | | 700 | mV | |
Transmit Disable Voltage | VD | Vcc-1.3 | | Vcc | V | |
Transmit Enable Voltage | VEN | Vee | | Vee+ 0.8 | V | 2 |
Transmit Disable Assert Time | | | | 10 | us | |
Receiver | | | | | | |
Differential data output swing | Vout,pp | 300 | | 850 | mV | 3 |
Data output rise time | tr | 28 | | | ps | 4 |
Data output fall time | tf | 28 | | | ps | 4 |
LOS Fault | VLOS fault | Vcc-1.3 | | VccHOST | V | 5 |
LOS Normal | VLOS norm | Vee | | Vee+0.8 | V | 5 |
Power Supply Rejection | PSR | 100 | | | mVpp | 6 |
