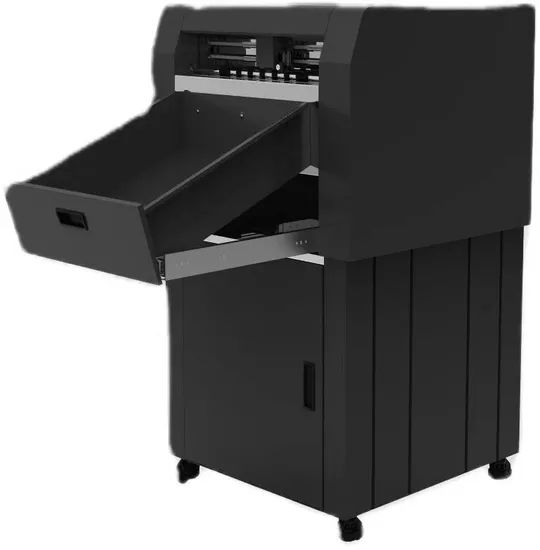

Auto Feeding Digital Label Cutter Servo Motor Die Cutting Machine Vkd370PRO

Product Description

Multi Sheet Label Cutter Auto Feeding Digital Label Servo motor Die Cutting Machine VKD370PRO Main Features: 1. Servo Motor, Integrated carriage head board, Strong and high precision. 2. Double blade design, Support Diamond Blade, Creasing Tool, and pens 3. 5inch Touch Screen provides easy operation process.
3. Lift type automatic suction feeding system
4. CCD Camera fast positioning, accurately detects the registered marks on the media.
5. QR code recognition function. 6. High precision on Contour Cutting. 7. It can load approximately 1000 sheets of paper at once, with a maximum loading thickness of 14cm VKD370 PRO adopting high-quality servo motor driver, achieves accurate cutting in a high speed and its key indicators all perform excellence comparing with the same products. Application: This unit is suitable for the batch label processing of all kinds and small production such as Labels, Stickers, Heat transfer sheets for garment and the POP as table advertising.The most prominent features are AUTO FEEDING and HIGH SPEED CUTTING, so it must be a most cost-effective tool for the business batch.

Model	VKD370PRO
Contour cut	CCD camera for automatic contour cut
Paper loading quantity	About 1000 pcs
Feed method	Lift type adsorption paper feed
Cutting size	360mm*530mm
Cutting Speed	0-1200mm/s (Servo Motor)
Cutting head	Double blade
QR code identification	Support
Applicable cutting materials	Adhesive/cardboard/PVC/PET, etc
Contour Cutting Precision	+0.01mm
Communication port	USB, U Disc, Wifi
Packing size	L*W*H: 790*787*1230mm
W.G	92kg
