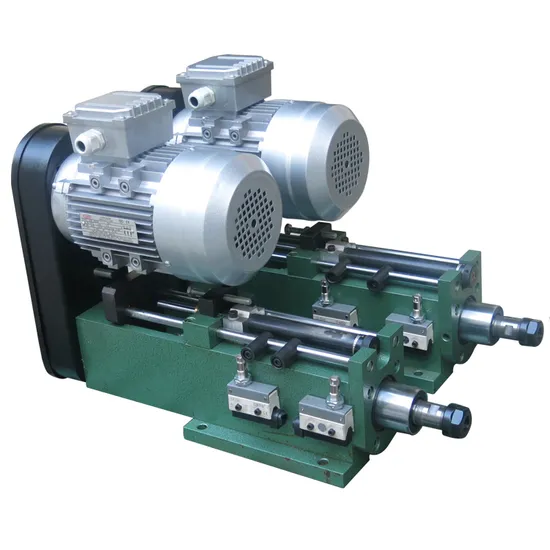

Oil or Air Type Drilling Head Unit with One Spindle or Multi Spindle

Oil or Air Type Drilling Head Unit with One Spindle or Multi Spindle

US$750.00-800.00 1 set (MOQ)

Basic Info.

Model NO.
CX-HD5-85
Controlling Mode
PLC
Number of Shaft
Customized
Hole Diameter
1-10mm
Automatic Grade
Automatic
Precision
Normal Precision
Certification
CE
Condition
New
Transport Package
Wooden Packing
Specification
customized
Trademark
Chansin
Origin
China
HS Code
8459290000
Production Capacity
500set/Year

Product Description

Oil or air type drilling head unit with one spindle or multi spindle
Maximum Drilling φ1-φ10mm
Main Spindle Taper ER20/JT6
Main Spindle Travel 85mm
Spindle Max Rotating Speed 1400 (r/min)
Cylinder Area 21.6m2
Center Height 70±0.01
Motor 0.75KW
Net Weight 38kg
Using Hydraulic 20-30 kg/cm2
Size(L*W*H) 115*464*370mm

Standard Type Drilling Machine
Drilling Machine CX-8510 CX-13016 CX-15035
Maximum Drilling Dia. 10mm 16mm 35mm
Spindle Sleeve Dia. 50mm 60mm 90mm
Spindle Stroke 85mm 130mm 150mm
Spindle to Column Distance 200mm 210mm 250mm
Spindle Nose to Work Table 100-330mm 100-350mm 120-420mm
Spindle Tapper JT6/ER20 JT6/ER25 MT4/Line Groove
Spindle Speed 1400/2800 rpm 1400/2000 rpm 1000/1400 rpm
Machine Head Travel 280mm 280mm 320mm
Motor Power 0.75kw 1.5kw 2.2kw
Electricity 380V/415/440V 3 Phase 380V/415/440V 3 Phase 380V/415/440V 3 Phase

Standard Type Tapping Machine
Tapping Machine CX-4508 CX-6516 CX-6532
Spindle Stroke 45mm 65mm 65mm
Tapping Range 1-8mm 2-16mm 5-32mm
Machine Head Travel 260mm 300mm 460mm
Spindle Nose to Work Table 90-350mm 100-350mm 100-600mm
Spindle Speed 50HZ:1340/760/420rpm 60HZ:1600/900/500rpm 50HZ:590/400/250rpm 60HZ:720/480/300rpm 50HZ:280/150/80rpm
60HZ:320/180/120rpm
Standard Gear Pitch(mm) 0.25,0.3,0.35,0.4,0.45,0.5,0.6,0.7,0.75,
0.8,1.0,1.25
0.4,0.45,0.5,0.7,0.75,0.8,1.0,1.25,
1.5,1.75,1.8,2.0,2.5
0.8,1.0,1.25,1.75,2.0,2.5,3.2,3.5
Standard Gear Pitch(inch) 16,18,20,24,28,32,40,44,48,56,64 10,11,12,14,16,18,19,20,24,28 8,9,10,11,12,14,16,19
Multi spindle Capacity M2*16,M3*9,M4*5,M5*3,M6*2,M8*1 M4*13,M5*10,M6*7,M8*4,M10*3,M12*2,M16*1 M8*16,M10*10,M12*7,M14*6,M16*4,
M18*3,M20*3,M32*1
Motor Power 0.75kw 1.5kw 2.2kw
Electricity 380V/415/440V 3 Phase 380V/415/440V 3 Phase 380V/415/440V 3 Phase

Non Standard Type / SPM Type Drilling and Tapping Machine
Drilling and Tapping Heads
CX-HD5-85 AIR/HYDRAULIC DRILLING HEAD
Maximum Drilling φ1-φ10mm
Main Spindle Taper ER20/JT6
Main Spindle Travel 85mm
Spindle Max Rotating Speed 1400 (r/min)
Cylinder Area 21.6m2
Center Height 70±0.01
Motor 0.75KW
Net Weight 38kg
Using Hydraulic 20-30 kg/cm2
Size(L*W*H) 115*464*370mm
CX-HD6-130 HYDRAULIC DRILLING HEAD
Maximum Drilling φ1-φ16 mm
Main Spindle Taper ER25/JT6
Main Spindle Travel 130mm
Spindle Max Rotating Speed 1400 (r/min)
Cylinder Area forward 37.1m2 backward 15.8m2
Center Height 70±0.01
Motor 1.5KW
Net Weight 50kg
Using Hydraulic 20-30 kg/cm2
Size(L*W*H) 160*719*417mm
CX-HD8-150 HYDRAULIC DRILLING HEAD
Maximum Drilling φ1-φ35mm
Main Spindle Taper MT4/LINE GROOVE
Main Spindle Travel 150mm
Spindle Max Rotating Speed 1500 (r/min)
Cylinder Area forward 71.2m2 backward 31.4m2
Center Height 90±0.01
Motor 1.5KW
Net Weight 67kg
Using Hydraulic 20-30 kg/cm2
Size(L*W*H) 280*860*470mm

Multi Spindle Device
Our engineers will design the multi spindle device according to your product's size and the holes distribution. It can be very small or very big. There are two types, fixed type and adjustable type. Fixed type multi spindle device, the spindles are fixed, can't be adjustable. Adjustable type multi spindle device, the spindles are adjustable, can be suitable for various kinds of products.
Vibrating Plate
We have our own vibrating plate work shop and we have experience on it more than 20 years.
Fixtures/Jigs
We are providing jigs/fixtures design service. All designs are based on easy control, safety and high efficiency .
Machined Samples
Our Customers
FAQ
1. Are you a manufacturer or trade company? -- Manufacturer
2. What is payment terms? -- 30% deposit, the balance will be paid before delivery
3. What is the warranty time ? -- One year warranty and life time maintenance.
4. Do you provide OEM service?-- Yes
5. Can you send engineers to serve overseas ? -- Yes, You are responsible for round-trip air tickets and accommodation of our engineers.
6. What is the loading port ? -- Shenzhen / Guangzhou port
