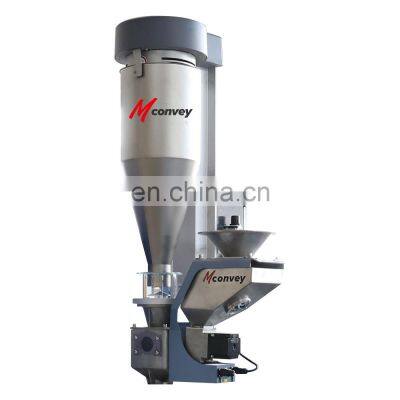

Liansu Loss in weight feeder controller Plastic Pipeline Extrusion Automatic loss weight loss in weigh feeding machine

Product Description

Product Description
Features:● Control sysetm and screw freqency coversion drive with same platform software ,it is convenient to control integration with extruder；● Discharge valve adopts unique gear structure to prevent material blocking, pateneted product；● All spare parts of the whole series product can be in common use ；● With two control modes can freely swcith: ‘extrusion output mode ' and ‘ meter weight control mode ；● With the alarm histroy function；● With Ethernet communication function, it can realize networking with the molding machine and centralized monitoring function. Working principle:Loss in weight Feeder (granules) is generally installed on the top of the plastic extruder to realize the closed loop control of the extruder output(kg/h)：via real-time collect the weighing hopper raw material comsuption which is in unit time of extruder(actual extrusion quantity kg/h) ,and real-time comparison with the extruder setting (target extruder), if there is difference between these, the software of loss in weight feeder will fynamincally adjust the speed of the extruder screw to achieve the exact consistency between the actual and the target extrusion amount；Furthermore, the loss in weight feeder can also access the ‘line speed m/min' signal of the haul-off unit which at the end of the extruder production line.Through the internal calculations of the softward, that is:(extrusion quantity kg/h）/(linear speed m/min)=pipe weight kg/meter (linear speed can be converted from ‘meter/min' to ‘meter/h', we can get the ‘meter weight' control which is we required；Control system standard equipped with standrad ethernet interfaces which is facilitate data integration with third-party devices.Specification table:ModelOutput (kg/hr)Load cell（kg)Storage bucket (L)hopper capacity（L）Plastic granule (mm)power supplyVoltageLSGC-WSZ5520663-51Φ220V 50/60Hz1¢, 220V, 50HzLSGC- WSZ60601006183-51Φ220V 50/60Hz1¢, 220V, 50HzLSGC-WSZ1201201006503-51Φ220V 50/60Hz1¢, 220V, 50HzLSGC-WSZ3003003001001Φ220V 50/60HzLSGC-WSZ5005003001501Φ220V 50/60HzNote: A main raw material hopper is optional for the above models; hopper loader (6U) + adapter flange; PLC control, touch screendisplay; Siemens load cell.Product Display
