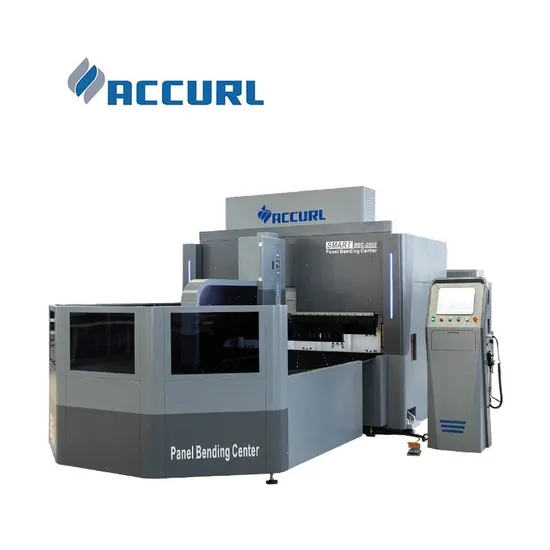

Accurl Automatic Panel Bender Metal Sheet Bending Machine Center

Accurl Automatic Panel Bender Metal Sheet Bending Machine Center

US$109,000.00
1 set
US$98,000.00
2 set
US$97,000.00
3+ set

Basic Info.

Model NO.
BEC2000
Condition
New
Certification
CE, CE ISO Soncap
Automation
Automatic
Suitable for
Plastic, Rubber, Copper, Aluminum
Type
Panel Bender Center
Slider Stroke (mm)
110 mm
Throat Depth (mm)
110 mm
Length of Working Table (mm)
3200
Weight (Kg)
14300
Core Components
Bearing, Motor, Pump
Application
Stainless Plate Bending
Control System
Hc15e-S Touch Screen
Color
Customer Choose
Automatic Level
Fully Automatic
Machine Type
Synchronized
Width of Working Table (mm)
5300 mm
Extra Services
End Forming
Motor Power (Kw)
11 Kw
Material
Metal Steel Sheet
CNC or Not
CNC Bendingmachine
Transport Package
Wooden Package Suitable for Sea Transport.
Specification
3100x5300x2600mm
Trademark
Accurl
Origin
China
HS Code
846229900
Production Capacity
10000/Year

Packaging & Delivery

Package Size
310.00cm * 530.00cm * 260.00cm
Package Gross Weight
14300.000kg

Product Description

ACCURL New Panel Center Bender FBE1400 Automatic Panel Bender Center
Product Description
ACCURL PBE series PANEL BENDER CENTERPBE Series panel bender is the new generation automated bending solutions, a benchmark that indicates the upgrading to automation of sheet metal fabricating industry. It can obviously reduce the labor cost and at the same time it can realize 300% higher efficiency comparing to traditional press brake up to 0.3s per bending. Full electro servo transmission plus closed-loop BUS control makes the accuracy far better.
Detailed Photos
"MACHINE EXPERT FOR SHEET METAL" ACCURL is enabling the upgrading of conventional sheet metal fabricating industry and reimaging what can be made.FEATURE-MULTI POSITIONING WAYSThe frame is welded by carbon dioxide shielded welding, which has many advantages such as stable welding process, no internal defects, and minimal spatter.
NameUnitValueValue
Max. Bending Lengthmm14002000
Max. Sheet Widthmm14001500
Max. Bending Heightmm170170
Min. Workpiece Size (four sides bending)mm110x200110x200
Min. Workpiece Size (single side bending)mm110110
Min. Radiusmm1.21.2
Bending Angle°±180±180
Max. Bending Speeds/bending0.50.5
Min. Sheet Thicknessmm0.350.35
Dimensions(L×W×H)mm3000x2000x26003100x5300x2600
Full PowerKW3645
Working VoltageV380V±10%380V±10%
FEATURE-AUTOMATIC CORRECTION OF ROTATION ANGLEThe arc bending process requires repeated bending of the plate. If the rotation angle is not in place, the bending error will accumulate each time, resulting in the folded workpiece is not an arc, but a cone. The automatic correction function can automatically adjust the C/C11 axis to compensate for sheet rotation errors. CNC AXES-11 AXES A/B axes: Positioning axes V axis: Feeding axis C/C11 axes: Rotation axes W/W11 axes: Pressing axes Z/Z11 axes: Tooling up&down motion axes Y/Y11axes : Tooling forward&dbackward motion axes.CONTROLLING SYSTEM In view of the high-intensity motion requirements of the panel bender, the frame adopts an arch design, which is thickened and widened. The frame is tempered, annealed and aged twice to ensure the long-term running accuracy, stability and high rigidity of the machine. View More Products,click here...
