Automatic Industrial Tunnel High Pressure Plastic Crate Washing Box/Plate/Pallet/Basket/Egg Tray/Crate Washer for Various Industries

Product Description

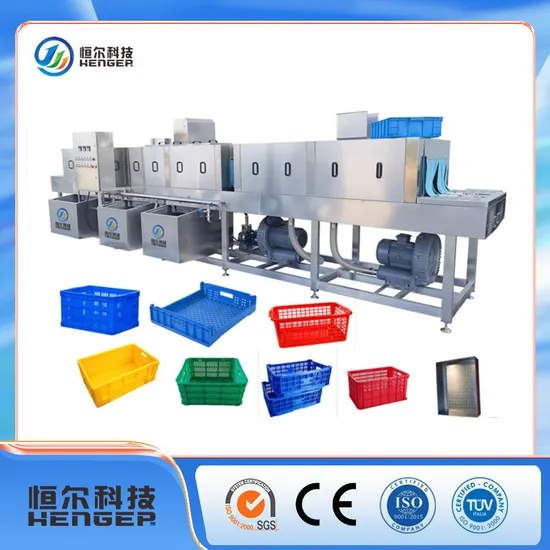

Industrial Automatic Crate Washing Machine Basket/Tray/Crate Washer for Cleaning Pallet and Plate

Product Description
Basket/crate/tray/pallet/bin/box washing machine
Baket washing machine is used for the clean and sterilization of revolving basket,dishes ,egg trays ,mold etc.After cleaning the container has a number of colonies in line with the nation food safety requirements.Whole machine adopts famous components,moisture-proof ,water-proof.It can be directly for washing ,and it has low failure rate,stable performance.
Crate washing machine can replace traditional artificial cleaning,meet the requirements of cleaning a lot of turnover basket in food enterprises.Widely used in meat industry,baking industry,fast-food industry,aquaculture industry fruit and vegetable industry and other industries.
Tray/basket /crate /pallet Washer Advantages VS:
1.Whole frame is made of 304 stainless steel,durable and anti-corrosion.
2.Big capacity with 300-1000 pcs baskets cleaning volume,two people can work 20 people workload,which save time and energy.
3.Water can be recycled ,with double layer filtration system,which can save a lot water consumption.
4.With adjustable floor feet, you can freely adjust the height of the machine.
Product Parameters

High Pressure Washer Basket Washing Machine Pallet/Tray/Crate Washer
Unit	3600Model	4800model
Max.Box Size(W*H)	650*350MM	650*350MM
Washing Capacity	300-600(adjustable)	600-1000(adjustable)
Machine Overall Size	3600*1700*1600MM	4800*1700*1600MM
Num. Of water tank	2	3
Muti-Step Washing	Pre-washing Main-Washing Washing	Pre-washing Main-Washing Rinsing Washing
Water Recycle	Washing→MainWashing→Pre-washing	Washing→Rinsing→MainWashing→Pre-washing
Main-washing pump	7.5kw	7.5kw
Electric	Three-phase Electricity/Customized	Three-phase Electricity/Customized
Chain	Stainless Steel Cycle Chain	Stainless Steel Cycle Chain
Heating type	Intelligent Control Of Steam Heating	Intelligent Control Of Steam Heating
Steam interface	DN32 Stainless Steel Flange	DN32 Stainless Steel Flange
Exhaust outlet	Φ180mm*2	Φ180mm*2
Water outlet	Φ89mm	Φ89mm

Design Simulation Diagram Display
Crate washing machine with turning device Four-channel box washing machine
Dual channel basket washing machine Crate washing machine with conveyor lin Detailed Photos
Fast And Efficient
The limit rod in the tunnel is easy to adjust, and the width and height of the cleaning channel can be flexibly changed, so as to be compatible with containers of various sizes. The high-pressure nozzle adopts a surround layout, the spray angle is adjustable, and the bottom nozzle can swing at a large angle to ensure sterilization and decontamination without leaving dead corners. The washing water temperature is adjustable to protect some containers that are not resistant to high temperatures and ensure non-destructive cleaning.
Safety And Bacteria Control
The equipment focuses on hygienic protection and integrates multiple bacteria control designs. Multiple high-temperature cleaning processes and full-coverage high-pressure spraying ensure that the container is fully in contact with high-temperature water for more thorough sterilization. The water tank has a dual filtration function to improve the cleanliness of the circulating water and ensure the hygiene of the container after cleaning; the track is equipped with a dedicated cleaning nozzle to keep the chain clean and avoid cross contamination with the container.
Professional Scheme Design

Professional Scheme Design
Customized for Saudi Arabian customers
Customized for Malaysian customers
Customized for American customers

Customized for Bangladesh customers
Customized for Thailand customers
Customized for Australian customers
We also have many successful cases. We have exported to more than 80 countries and cooperated with more than 190 enterprises.
If you're interested in our crate washer ,please Kindly send your crate size and pictures and with or without cover,so that the suitable plan will be provided at once.We also have many successful cases.

Packaging & Shipping

HE-3600 basket washing machine(Standard size)	Film-packed and then packed in plywood crates
HE-4800 crate washing machine	Film-packed and then loaded into containers

Company Profile
Henger Manufacturing (Shandong) Machinery Technology Co., Ltd is a comprehensive and technological enterprise integrating food machinery technology research and development, manufacturing and international trade.The company's business involves fruit and vegetable processing equipment, meat processing equipment, and aquatic processing equipment. , Purification and cleaning equipment and stainless steel tools in food workshops and cold storage equipment . The market scope covers food (meat, aquatic products, fruits and vegetables, etc.), medicine, catering, logistics, chemical and other industries. Henger will provide professional one-stop program design and diversified product processing services for the food processing and meat slaughtering industries.Our company actively explores the international market based on the work concept of "openness, tolerance, improvement, and innovation". Currently, we has established business contacts and cooperation with dozens of countries and regions in South America, Africa, Australia, the Middle East, Southeast Asia and the Belt and Road Initiative. relationship. The company adheres to the business philosophy of "professionalism, focus, mutual progress, and win- win", abides by the principle of good faith, actively expands the market, continues to carry out technological research and development and innovation, and strives to provide first-class products and services to our customers and develop for global food processing enterprises make a contribution.
Our Advantages
FAQ
1.Where is your factory located ?
Henger Machinery factory is located in Binzhou City, Shandong Province.Welcome you visit our factory .
2. How can you guarantee your product quality?
From raw material purchase to production,Henger company has strict restriction.And we will provide 1 year warranty time for all the products .ISO 9001 and CE certification can be provided.
And we have our excellent service team all over the world.We offer excellent after-sales service.

3. How long is one order production time?
After you place a order,the production handling time is about 10-25 days. It will subject to our factory production schedule.
4. Can you accept special order?
Yes, we have our own R&D center , and our engineer can provide machine drawing according to your requirement.Special order for your own factory.
5.Why our customers trust and choose us?
1.Manufacturer
2.3D Modeling and Design
3.Delivery fast
4.Senior engineer
5.Competitive price
6.High quality
7.Strict Quality Control
8.Over 10 years experience
9.Provide Test
10.Varity of goods
11.Excellent after-sales services
12.Advanced machinery and equipment
6.How can you make sure the deal safe?
Insurance order payment is preferred on Made-In-China platform. TT and credit card payment can be accepted.
If you are interested in our tray/crate washer,please contact Amy freely.
