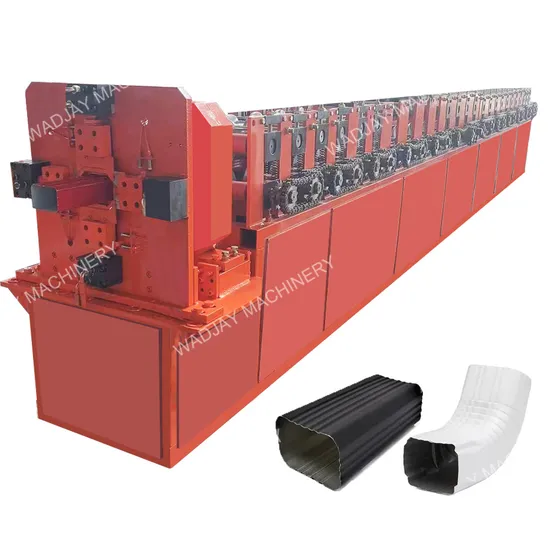

Steel Round Downspout Roll Forming Machine Hot Sale in USA and EU

Product Description

Product Description
Automatic Downspout Pipe Curving Machine For Sale
Downspout Forming & Bender
Downspout forming & bending Machine is the complementary equipment for down pipe forming machine. It can make curve for down pipe to meet the requirement of practical engineering.
It is composed of pressing machine and curving die. Pressing machine supplies power and rail for the curving die to curving repose
Parameters of downspout machine

Main roll forming machine	Material of roller		High grade 45# forged steel plated with hard chrome plating
	Working Speed	m/min	8-15
	roller stations	station	16
Motor power	Main motor power	kw	5.5
	Hydraulic Station Power	kw	3
	Hydraulic Station Pressure	Mpa	12
Otehrs	Electrical Control System	PLC brand	International brand
	Material Thickness	mm	0.25-0.8mm
	Cutting accuracy	mm	±2

Roll forming production line:
Uncoiler -- Feeding Coils -- Coils Cutting System -- Cold Roll Forming System -- Hydraulic Curving System
Details of Automatic Downspout Pipe Curving Machine For Sale
Roller of Automatic Downspout Roll Forming Machine with Elbow
With feeding material guide, body frame made of steel type H450 by welding Side wall thickness: q235 t18mm ; 45# steel rollers, CNC lathes, heat treatment, hard chrome plated With a thickness of 0.04mm Shaft diameter=ф75mm, precisely machined Gear/gear drive to form about 14-step Main motor=11KW, frequency control All screws are grade 8.8
PLC Control System of Automatic Downspout Roll Forming Machine with Elbow
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Auto Cutting of Automatic Downspout Roll Forming Machine with Elbow
The whole line adopts PLC control, LCD display touch screen, man-machine interface.
You can set any length and quantity
Hydraulic Power Station of Automatic Downspout Roll Forming Machine with Elbow
It is derived by a Gear Pump. After filling the hydraulic oil into the hydraulic oil tank, the pump could drive the hydraulic
cylinder to realize the cutting function.
The system includes a set of hydraulic tank, a set of a Gear Pump, two hydraulic pipes .and two sets of Solenoid Valves.
