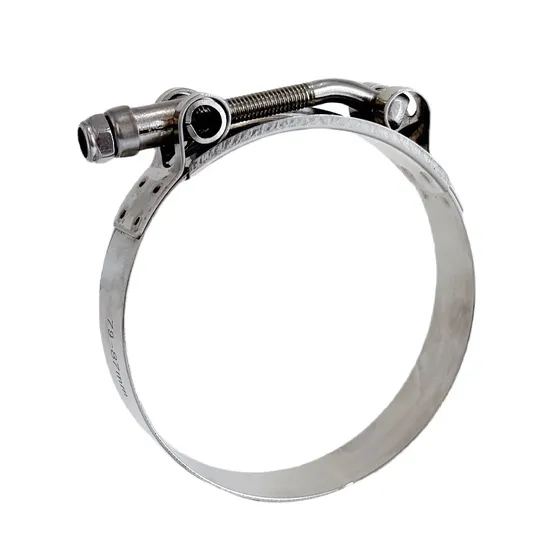

T-Bolt Hose Clamp Heavy Duty Hose Clamp 304 Stainless Steel Clamp Used for Automobiles

Product Description

Product Description:Name:T-bolt hose clamp , also called robust clamp or power clamp.Structure: Band, plate, two axles, and screw.Surface treatment: Zinc plated.Color: Silver, yellow.Screw grade: 8.8 grade.Application: Widely used in motor vehicles, petrochemicals, industry, agriculture, auto pipe, cooling pipes ect.Material: W1, W2, W4, W5(See as below)Feature: Superior corrosion resistance.The punched perforated band enables clamps to install easily and hold tightening.Multi-clamping range.Logo can be stamped on the housing or band as customer request.

Material	Band	Tongue	Axles	Screw	Steel ring
W1	Zinc plated steel	Zinc plated steel	Zinc plated steel	Zinc plated steel	Zinc plated steel
W2	AISI 201SS	Zinc plated steel	Zinc plated steel	Zinc plated steel	Zinc plated steel
W4	AISI 201SS/304SS	AISI 201SS/304SS	AISI 201SS/304SS	AISI 201SS/304SS	AISI 201SS/304SS
W5	AISI 316SS	AISI 316SS	AISI 316SS	AISI 316SS	AISI 316SS

Detailed Photos:
Product Parameters:

Width (mm)	Product Code	Clamping range		Thickness		Pcs/Bag	Pcs/Box
		D(mm)	D ( in )	T (mm)	T(W1) (mm)
18	GEM SS 17-19/18	17-19	11/16-3/4	0.6	0.6	10	200
	GEM SS 20-22/18	20-22	13/16-7/8	0.6	0.6	10	200
	GEM SS 23-25/18	23-25	15/16-1	0.6	0.6	10	200
	GEM SS 26-28/18	26-28	1-1 1/8	0.6	0.6	10	200
20	GEM SS 29-31/20	29-31	1 1/8-1 1/4	0.6	0.8	10	200
	GEM SS 32-35/20	32-35	1 1/4-1 3/8	0.6	0.8	10	200
	GEM SS 36-39/20	36-39	1 7/16-1 9/16	0.6	0.8	10	200
	GEM SS 40-43/20	40-43	1 9/16-1 11/16	0.6	0.8	10	200
22	GEM SS 44-47/22	44-47	1 3/4-1 7/8	0.8	1.2	10	100
	GEM SS 48-51/22	48-51	1 7/8-2	0.8	1.2	10	100
	GEM SS 52-55/22	52-55	2 1/16-2 3/16	0.8	1.2	10	100
	GEM SS 56-59/22	56-59	2 3/16-2 5/16	0.8	1.2	10	100
	GEM SS 60-63/22	60-63	2 3/8-2 1/2	0.8	1.2	10	100
	GEM SS 64-67/22	64-67	2 1/2-2 5/8	0.8	1.2	10	100
24	GEM SS 68-73/24	68-73	2 11/16-2 7/8	0.8	1.5	10	100
	GEM SS 74-79/24	74-79	2 15/16-3 1/8	0.8	1.5	10	100
	GEM SS 80-85/24	80-85	3 1/8-3 3/8	0.8	1.5	10	100
	GEM SS 86-91/24	86-91	3 3/8-3 9/16	0.8	1.5	10	100
	GEM SS 92-97/24	92-97	3 5/8-3 3/16	0.8	1.5	10	100
	GEM SS 98-103/24	98-103	3 7/8-4 1/16	0.8	1.5	10	100
	GEM SS 104-112/24	104-112	4 1/8-4 7/16	0.8	1.5	10	100
	GEM SS 113-121/24	113-121	4 7/16-4 3/4	0.8	1.5	50	50
	GEM SS 122-130/24	122-130	4 13/16-5 1/8	0.8	1.5	50	50
26	GEM SS 131-139/26	131-139	5 1/8-5 1/2	1.0	1.7	50	50
	GEM SS 140-148/26	140-148	5 1/2-5 13/16	1.0	1.7	50	50
	GEM SS 149-161/26	149-161	5 7/8-6 5/16	1.0	1.7	50	50
	GEM SH 162-174/26	162-174	6 3/8-6 7/8	1.0	1.7	50	50
	GEM SH 175-187/26	175-187	6 7/8-7 3/8	1.0	1.7	50	50
	GEM SH 188-200/26	188-200	7 3/8-7 7/8	1.0	1.7	50	50

Why Choose Us?
1. We have fully experience to make the right product you need. High quality to normal.
2. Every batch of material will be tested carefully, including thickness, chemical compositon and hardness.
3. No burrs, easy and safe when installing.
4. Antirust, good wear resistance. 304ss has strong oxidation resistance in humid environments.
5. We can make wide range of sizes as customized.
