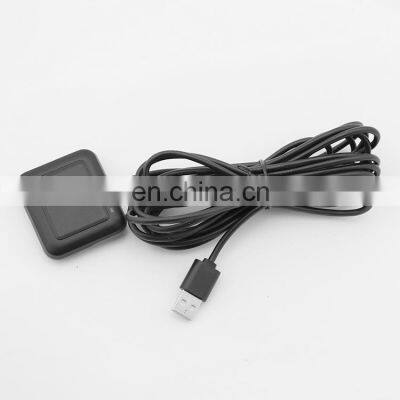

High Accuracy Satellite RTK GNSS Wired GPS Module with Embedded Patch Antenna

High Accuracy Satellite RTK GNSS Wired GPS Module with Embedded Patch Antenna

Product Description

Product Description
Company Information G MOUSE interface options: P01:USB Connector: P02:Micro-Fit 3.0 Connector P03:PS2 Male Connector: P04:DB9 Male Connector: High Accuracy Satellite RTK GNSS Wired GPS Module with Embedded Patch AntennaThe HR-56R-MT is a complete GPS&Beidou engine module that features super sensitivity, ultra low power and small form factor. The GPS&Beidou signal is applied to the antenna input of module, and a complete serial data message with position, velocity and time information is presented at the serial interface with NMEA protocol or custom protocol.Its –165dBm tracking sensitivity extends positioning coverage into place like urban canyons and dense foliage environment where the GPS&Beidou was not possible before. The small form factor and low power consumption make the module easy to integrate into portable device like PNDs, UVA, DVR,Car Tracker and vehicl navigation systems.Applicationsn UVA(unmanned aerial vehicle)n DVR(Digital Video Recording)n Rearview mirror DVRn Car TrackerFeaturesMain chipMTK GPS ChipestTrack sensitivity-165dBmTime to First FixExtremely fast at low signal levelBuilt in high LNAYESPower consumptionMax 45mA@5.0VProtocolNMEA-0183 compliant protocol or custom protocolOperating temperature-40 to 85℃Operating voltage3.0V to 5.0VModule typeUART /TTL /USB /RS232Size55x46x14.5mmCertificationRoHS compliant(Lead-free),CE CertificateRelated Products
