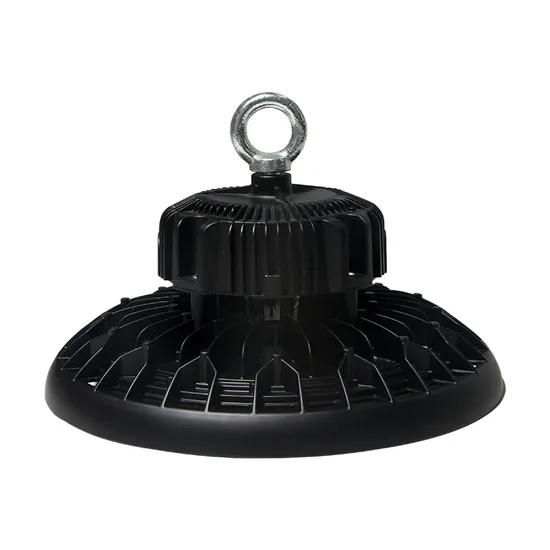

High Efficiency IP65 Industrial 120W UFO LED High Bay Housing Light

Product Description

High Efficiency IP65 Industrial 120W UFO LED Highbay housing Light
Specification datasheet

Model	PL-UFO-021-100W	PL-UFO-021-150W	PL-UFO-021-200W
Power	100W	150W	200W
Dimension	Φ250X182.5mm	Φ300X185.5mm	Φ345X188mm
Luminous Flux	140lm/w±5%
LED Source	140PCS Lumileds 3030	220PCS Lumileds 3030	280PCS Lumileds 3030
Input Voltage	AC100~277V
Frequency Range	50~60Hz
Total Harmonic Distortion	<20% (Typical : 10%)
Color Temperature	2700-6500K
Color Rendering Index	CRI>70/80
IP&IK Rating	IP65&IK08
Beam Angle	60°/90°/120°
Optical Transmittance	>97%
Housing Color	Black
Working Life	>50,000 hours
Warranty	5 years
Working Environment	-30ºC~+50ºC, 10%~90% RH
Control	0-10V Dimmable
Body & Shade Material	Die-casting Aluminum housing & Annular lens
Where Can Use	Warehouse; industrial production workshop; pavilion; stadium; the train station; shopping malls; gas stations and other indoor lighting

Precautions:
1, prior to installation or use, please read the instructions say;
2, when the lamp is working, do not touch;
3, when the lights do not work with water or a wet cloth to wipe lamp;
4. Consult require special installation technician or supplier;
5, artificial damage in the warranty period, free repair.
Maintenance:
1,The power must be cut off before maintaining.
2,Cleaning the glass of the product in regular time to ensure the good efficiency.
3,Cleaning the housing and radiator in regular time to ensure the good performance of heat sinking.
4,Can use the screwdriver open the cover and take out of the driver to change a new.And connection of the wires of AC driver please follow below: Brown to connect "L", Blue to connect "N", Yellow to connect "", And the red or white wires of DC connect the positive pole of driver, and the black wire connect the negative pole of driver. and don't mix the positive pole and negative pole.
5,Please take measures of lightning protection, and ensure the Input voltage which is stable.
6,Please put the lamp under the dry, ventilated and clean circumstance, and clean and maintain regularly.
7,Don't disassemble by yourself, avoid the electric shock as there is high voltage inside the lamp.
8 Don't upside down when installing or lighting the lamp Please ask the qualified professional person for help. Warranty All products use constant current power supply ,and have 5 years warranty(According to your requirement).
Remark:The warranty on the base of right storing way,right installing way,right using way,right maintaining way.Any broken out of our rule,out of our warranty.During the warranty time,we can choose repairing,replacing parts or replacing the whole products according the detail information.And we'll charge the customers some material fee and labor cost if the product out of our warranty time.
Please read the instruction carefully before you use the product.We keep the right of final explanation for the instruction and the product.The product will keep updating continues.And sorry for the no notice for the updating.sure the Input voltage which is stable.
FAQ
Q: Whether the LED lights really have 50,000 hours lifespan?
A: 50,000 or longer lifespan is only theory from lab test.But due to working environment are different from
in lab,actual lifespan is only <=30,000hours. Meanwhile it can also be 50,000 hours lifespan if it adopt very good material.
Q: For same power,why different suppliers with different brightness?
A: Different chips,or same chip but different brightness version.The brightness will be different.But for same chip
and same brightness version,the brightness will be slight difference.But please make clear the brightness difference
between LEDs and lamp fixture.
Q:What is colour temperature?A: Kelvin is a way to measure "temperature", the light from LED lights emit a certain color, which we have catagorized
in CTT(kelvin).For example, a warmer (lower color temperature) light is often used in public areas to promote relaxation,
while a cooler (higher color temperature) light is used to enhance concentration in offices.
Q: What is CRI?
A: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.
Q: What is PF and efficiency?
A: PF and efficiency is to feedback the driver electrical performance.Higher PF and efficiency with higher coste other questions, please feel free to contact us, you will get reply at the first time
