CNC Circular Saw Sharpener for Grinding Tct Saw Blades

Product Description

CNC Circular Saw Sharpener for Grinding Tct Saw Blades
1. Sharpener features and advantages
1) Used for grinding side of tct circular saw blades.
2) Use special treated cast iron base and imported precision components to guarantee the accuracy and stablility of the machine. Long-term use without deformation
3) CNC with friendly interface panel, all parameters can be set directly and stored automatically
4) Precision<0.02mm or even better. satisfactory grinding performance
2. Sharpener parameters

Saw blade diameter	110~710mm
Saw blade thickness	0.5~8mm
Side relief	5°~ -5°
Side angle	5°~ -5°
Hook angle	-5°~28°
Bore diameter	12~120mm
Pitch	2~65mm
Tip length	1~15mm
Wheel diameter	80~125mm*32mm
Wheel speed	5000r/min
Grinding speed	4~20mm/s
Power	4.5KW
Dimensions	1900 X1590 X1920mm
Weight	1900kg

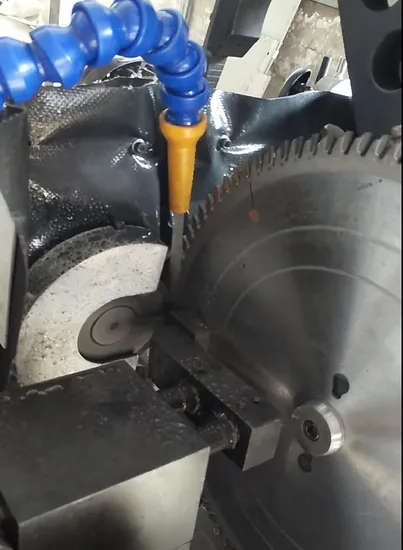

3. Sharpener details
FAQ
1. What products do we have?
Four categories saw blade sharpeners: 1. economic type: normal accuracy, normal saw blade diameters, lower price, suitable for tct blade. 2. accurate type: high accuracy, large diameter saw blade can be processed, suitable for tct blade. 3. sharpener with robot: robot auto picking and putting saw blade, suitable for mass production of tct blade. 4. cold saw blade sharpener: highest accuracy, suitable for cermet tipped saw blade.
Except saw blade sharpener, we also supply Measuring Projector, Side Runout Inspection Machine, Radial Runout Inspection Machine, Automatic Belt Polishing Machine, CNC Router Bit Grinding Machine, Automatic Tooth Seat Grinding Machine,etc.
2. What are the advantages of our circular saw blade sharpener?
1) long service life: using quality cast iron base treated by high temperature tempering and vibration aging. no deformation and low vibration.
2) easy operation: CNC with friendly interface panel, all parameters can be set directly and stored directly. A machine can store up to 100 sets of data.
3) high efficiency: adjustable grinding speed, robot auto load, one person can operate several machines at the same time.
4) high accuracy: use quality machine components to realize high accuracy.
5) competitive price: price is very competitive for such good quality.
