Zbmax98j Model High Speed Jacquard Rapier Loom

Product Description

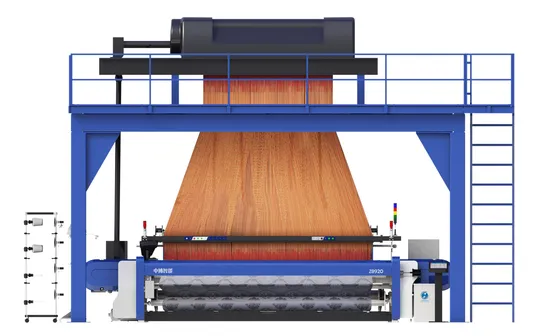

ZBMAX98J high-speed rapier jacquard loom is an intelligent high-speed jacquard loom that is leading in China and advanced in the world.
Transmission mode
Vertical shaft transmission independent transmission
Weft insertion mode
Suspension guide hook weft insertion mode Free flight weft insertion method
Shedding mechanism
Electronic jacquard faucet opening, it is convenient and fast to change the organization, and it can be equipped with any number of needles
Performance Highlights
- High Speed: Operates at a design speed of 350r/min and an economic speed of 280r/min (for a width of 340cm), ensuring efficient production.
- Excellent Fabric Quality: Delivers high-quality fabrics with precision and consistency.
- High Efficiency: Helps increase productivity and meet demanding production schedules.
Investment and Use Cost Advantages
- Low Investment: Reduces upfront costs for businesses.
- Fast Return: Allows for a quick return on investment.
- Long Service Life: Ensures durability and reliability over time.
- Low Energy Consumption: Saves on operational costs.
- Less Maintenance: Minimizes downtime and maintenance expenses. - Low Consumption of Spare Parts: Reduces the need for frequent replacement of parts.
Simplicity Features
- Easy Operation: User-friendly design makes it accessible for operators.
- Quick Replacement Variety: Enables seamless switching between different varieties.
- Wide Variety Adaptability: Can handle a diverse range of designs and materials.
WEAVING FABRICS:
It is suitable for cotton spinning, silk silk, silk, viscose, etc., mainly used for home textile decorative fabrics, sofa hair, jacquard shirt fabrics, ribbons, calligraphy and paintings, etc.

TECHANICAL DATA
REED WIDTH	190,210,220,230,240,250,260,280,300,320,340,360,380,400,420
WEAVNG SPEED	ZBMAX98J-340 economic speed 250~350 rpm
POWER	Super motor with a rated torque of 150Nm
TAKE UP	Servo electronic coiling, the diameter of the cloth in the machine is φ600mm
LET IN	Servo electronic let-off, disc diameter is φ800mm and φ1000mm
WEFT SELECTOR	Stepper motor controlled high-speed rotary electronic weft selector (8~12 colors), up to 16 colors
SHEDDING DEVICE	Electronic jacquard faucet. According to the pattern warp width, it can be equipped with jacquard faucets within the range of 1344~12288
SELVAGE MODE	The stepper motor controls the independent edge twisting mechanism or the faucet controls the edge holding
WEAVING YARN	Cotton: 3~80s; Chemical fiber staple yarn: 5tex~1000tex; Chemical fiber filament: 10D~3300D
WEFT DENSITY	3~200 PICKS/CM

Detailed parts of the loom introductions:
01 ELECTRONIC CONTROL SYSTEM
The control system is intelligent, information-based and networked. 32-bit CPU motherboard and embedded software are used for fast acquisition and monitoring. 1.The best cloth quality
Digital control positioning stop/start; Intelligent automatic weft finding; Automatic compensation for warp and weft breakage; The unique warp break, weft break when the function that all heald frames are in the heald flat position has played a decisive role in solving the parking gear.
2. The fastest fault detection
Intelligently displays the fault, can accurately judge the cause of the fault and provide a detection plan.
3.The most convenient management
It can automatically count the output and total output of four shifts, realize group control network management, and quickly change varieties
02 DRVING SYSTEM
It is directly driven by a switched reluctance motor, with simple structure and small failure rate, and the speed can be adjusted at will.
03 LUBRICATION SYSTEM
The closed forced circulation lubrication system of the independent oil pump motor is lubricated before the operation of the main engine, which ensures that the moving parts obtain reliable and good lubrication, and sets up the alarm function of insufficient oil level and insufficient oil pressure.
04 U-SHAPED RAPIER MAGAZINE
The U-shaped rapier magazine improves the meshing degree of the rapier wheel and the rapier belt, and increases the angle of the rapier belt to increase the life of the rapier belt and the rapier wheel.
The rapier loom distribution map

REED WIDTH	RT	LENGTH
190	2194	4800
210	2394	5000
220	2494	5100
230	2594	5200
240	2694	5300
250	2794	5400
260	2894	5500
280	3094	5700
300	3294	5900
320	3494	6100
340	3694	6300
360	3894	0500
380	4094	6700
400	4294
420	4494	7100

The packaging details:
