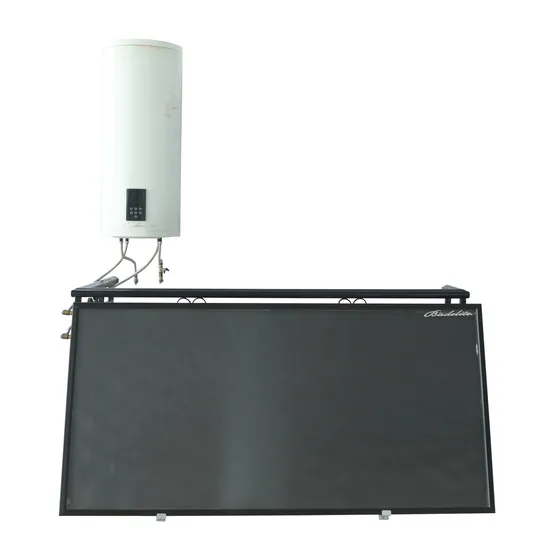

Solar Heating Panels/Flat Plate Solar Collector

Solar Heating Panels/Flat Plate Solar Collector

US$100.00-600.00 3 Pieces (MOQ)

Basic Info.

Model NO.
SPFP
Working Temperature Range
High Temperature
Type
Pressurized
Application
Water Heater, Solar Thermal
Pipe Material
Copper
Transport Package
Carton
Specification
1*2m
Trademark
SUNPOWER / OEM
Origin
China
HS Code
841919
Production Capacity
1500sets/Day

Product Description


SPFP -ALANOD/0.6- AL/AL-80
ALANOD - Aluminum Grid type plate from ALANOD company 0.6-Rated pressure 0.6Mpa
AL-aluminum core AL-alumnium heat tube and riser tube

Model SPFP -ALANOD/0.6- AL/Cu-80
Outline area 2 m²
Aperture area 1.89 m²
Absorption area 1.82 m²
Dimensions 2000*1000*80
NW 33/34kg
Capacity of cooper pipe 2.3L
Transparent cover Ordinary fabric surface tempered glass
Aperture rate ≥91%
Thickness transparent cover 3.2mm
Absorber material Aluminum plate from Alanod
Thickness of Absorber Aluminum 0.40mm
Heat absorption rate 95±2%
Emission rate 4±2%
Welding technics between copper pipe and absorber laser welding from Bluetec
(spot welding double pitch 3mm)
Head tubes copper tube
Riser tubes copper tube
insulation materials 40mm Fiber glass
Side Insulation thickness 20mm
Alloy frame material Aluminum-magnesium
Frame color black, bronze, silver and white
Backplate materials Galvanized sheet
Backplate thickness 0.5mm
Sealing material EPDM
Heat Medium Pure water or glycol medium
Testing pressure of inner circulating 1.2 Mpa
Working pressure of inner circulating 0.6Mpa
Instruction angle 30- 90°(Min-Max)
operation temperature 200ºC

Our advantages:
Our products process:
